Scavenging Pump: Installation: Installation

INSTALL SCAVENGING PUMP ASSEMBLY
1. Temporarily install the scavenging pump assembly and a new gasket with the 6 bolts.
2. Using several steps, uniformly install and tighten the 6 bolts in the sequence shown in the illustration.

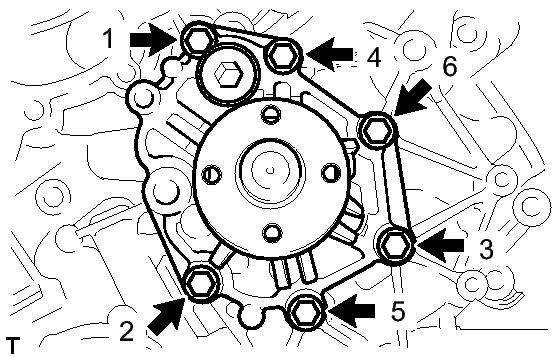

  Fig 1: Identifying Scavenging Pump Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
INSTALL NO. 3 OIL PIPE
1. Install a new O-ring to the No. 3 oil pipe.
2. Connect the No. 3 oil pipe to the scavenging pump assembly and align the bolt holes.
  NOTE:
  - Be careful not to damage the O-ring.
  - Do not rotate the oil pipe when connecting it to the scavenging pump.
3. Install the No. 3 oil pipe with the 2 bolts.

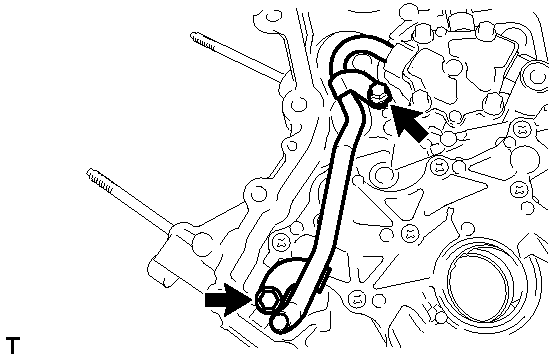

  Fig 2: Identifying No. 3 Oil Pipe Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
INSTALL NO. 2 OIL PIPE
1. Install a new O-ring and oil pipe seal to the No. 2 oil pipe.
2. Connect the No. 2 oil pipe to the scavenging pump assembly and align the bolt holes.
  NOTE:
  - Be careful not to damage the O-ring.
  - Do not rotate the oil pipe when connecting it to the scavenging pump.
3. Install the No. 2 oil pipe with the 2 bolts.

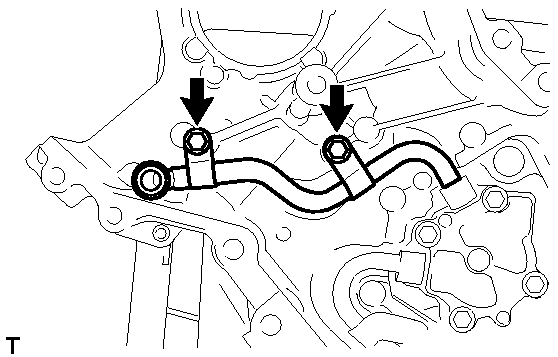

  Fig 3: Identifying No. 2 Oil Pipe Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
INSTALL NO. 1 OIL PIPE
1. Install a new O-ring and oil pipe seal to the No. 1 oil pipe.
2. Connect the No. 1 oil pipe to the scavenging pump assembly and align the bolt holes.
  NOTE:
  - Be careful not to damage the O-ring.
  - Do not rotate the oil pipe when connecting it to the scavenging pump.
3. Install the No. 1 oil pipe with the 2 bolts.

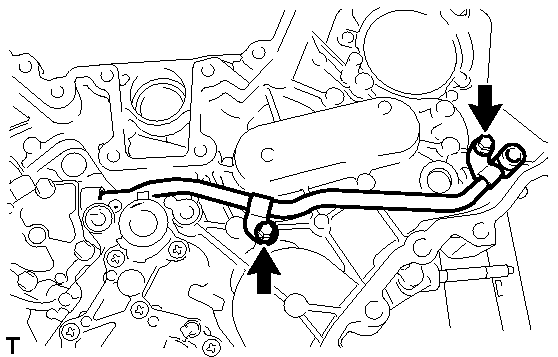

  Fig 4: Identifying No. 1 Oil Pipe Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
INSTALL TIMING CHAIN COVER SUB-ASSEMBLY
HINT:

See step 6
