Camshaft Timing Control Motor: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

HINT:

Disconnect the cable from the from the negative (-) battery terminal so that the maximum retard angle of the cam timing control with EDU motor assembly will be learned.
REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 2
REMOVE CAMSHAFT TIMING CONTROL WITH EDU MOTOR LH ASSEMBLY

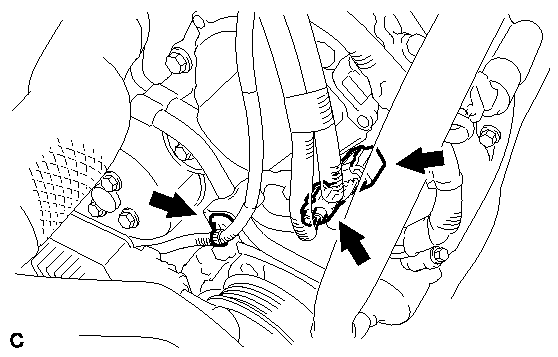

1. Disconnect the engine wire clamp.

  Fig 1: Identifying Engine Wire Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

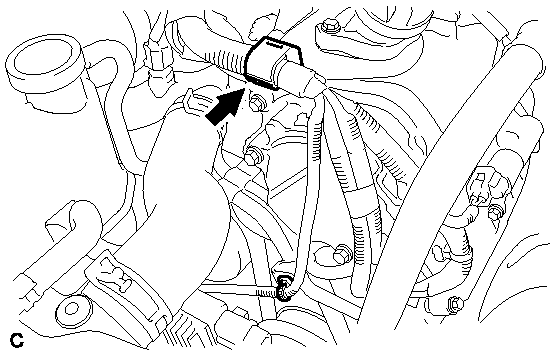

2. Disconnect the 2 connectors from the camshaft timing control with EDU motor and engine wire clamp.

  Fig 2: Identifying Engine Wire Clamp & Timing Control Motor Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

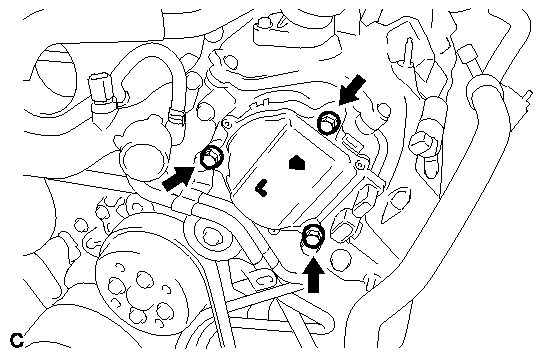

3. Remove the 3 bolts and the camshaft timing control with EDU motor LH assembly.

  Fig 3: Identifying Camshaft Timing Control Motor & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

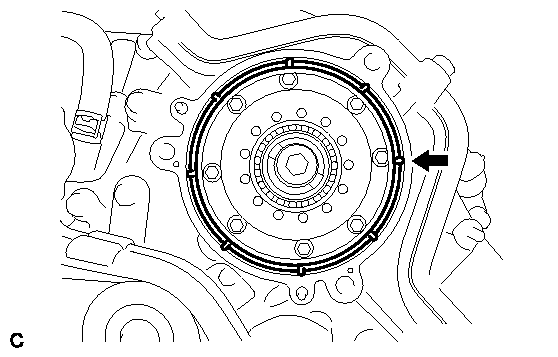

4. Remove the O-ring from the timing chain cover.

  Fig 4: Identifying Timing Chain Cover O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CLEANER CAP SUB-ASSEMBLY See step 4
REMOVE CAMSHAFT TIMING CONTROL WITH EDU MOTOR RH ASSEMBLY

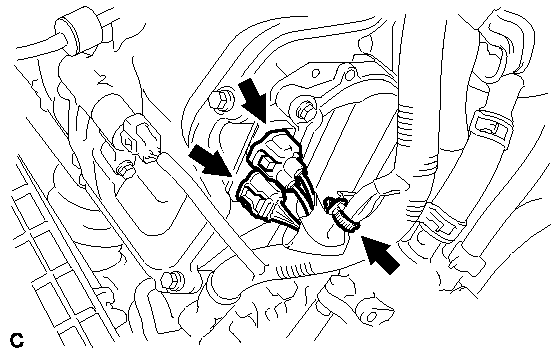

1. Disconnect the 2 connectors from the camshaft timing control with EDU motor and engine wire clamp.

  Fig 5: Identifying Engine Wire Clamp & Camshaft Timing Control Motor Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

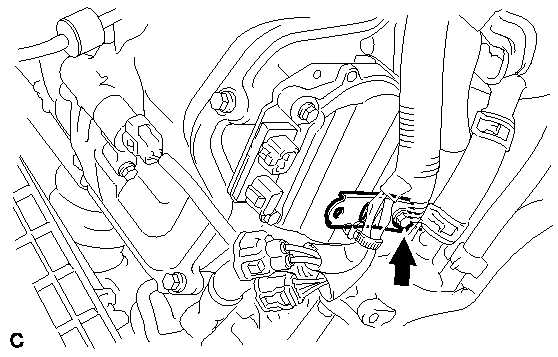

2. Remove the bolt and engine wire bracket.

  Fig 6: Identifying Engine Wire Bracket Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 bolts and camshaft timing control motor.

  Fig 7: Identifying Camshaft Timing Control Motor & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

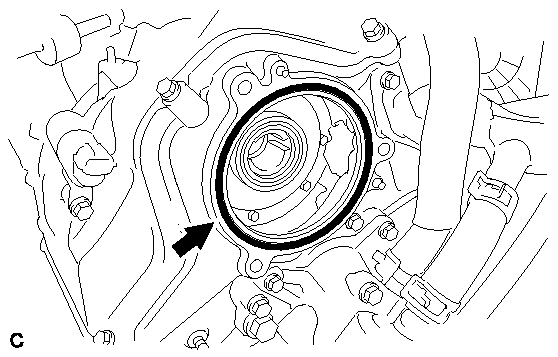

4. Remove the O-ring from the timing chain cover.

  Fig 8: Identifying O-Ring From Timing Chain Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
