Heated Oxygen Sensor: Removal: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 40
  2. REMOVE FRONT DOOR OPENING TRIM COVER LH  . Refer to REMOVAL - Step 42
  3. REMOVE FRONT DOOR SCUFF PLATE RH  . Refer to REMOVAL - Step 32
  4. REMOVE FRONT DOOR OPENING TRIM COVER RH  . Refer to REMOVAL - Step 33
  5. REMOVE FRONT FLOOR FOOTREST LH  . Refer to REMOVAL - Step 3
  6. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
    1. Remove the front floor silencer pad LH.
    2. Disconnect the heated oxygen sensor connector.
      Fig 1: Identifying Heated Oxygen Sensor Connector
      GTY148754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the grommet.
      Fig 2: Removing Front Floor Silencer Pad RH
      GTY121395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
      • SST: 09224-00010
  7. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
    1. Remove the front floor silencer pad RH.
    2. Disconnect the heated oxygen sensor connector.

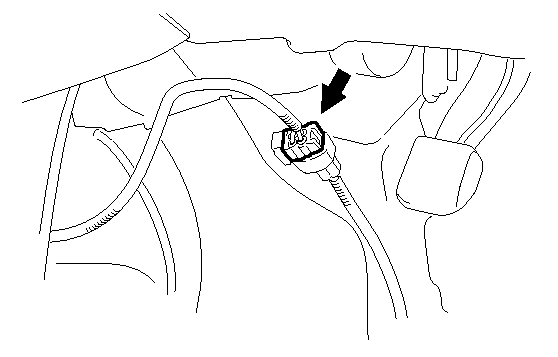

      Fig 3: Identifying Heated Oxygen Sensor Connector
      GTY149053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the grommet.

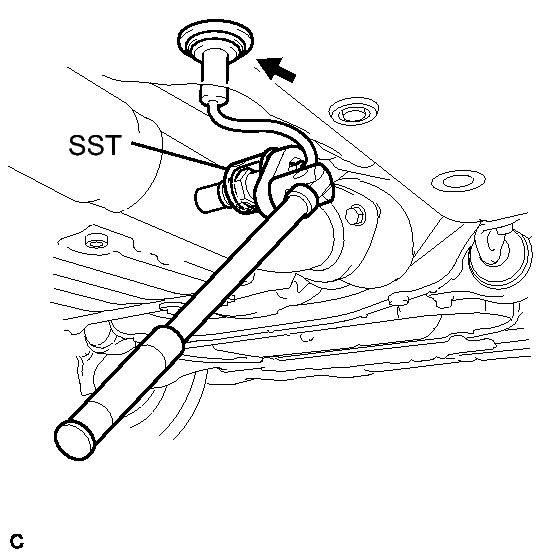

      Fig 4: Removing Heated Oxygen Sensor From Front Exhaust Pipe Assembly
      GTY148752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
      • SST: 09224-00010
