Monitor Description
The ECM monitors the idling speed and idling air flow volume to conduct Idle Speed Control (ISC). The ECM determines that the ISC system is malfunctioning if either of the following conditions is met:

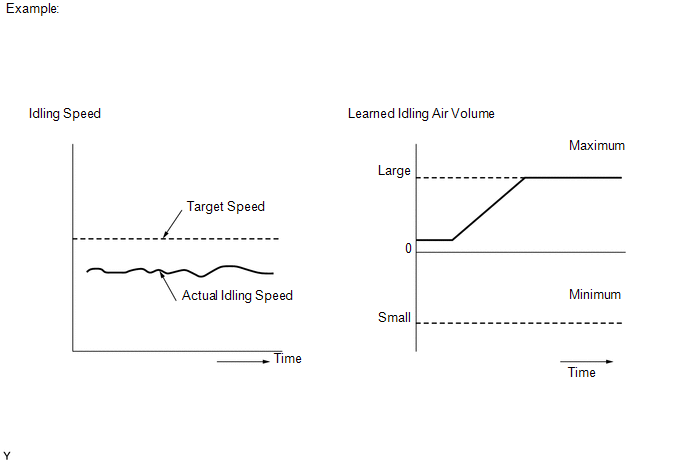

- The difference between the target engine idling speed and actual engine idling speed exceeds the threshold and the IAC flow rate learned value is stuck at the upper or lower limit for 5 seconds or more.
- After driving at a vehicle speed of 6.25 mph (10 km/h) or more, the difference between the target and actual engine idling speed exceeds the threshold 5 times or more during a driving cycle, and then the system determines that the IAC flow rate learned value is stuck at the upper or lower limit, or that the IAC flow rate learned value has been changed by an amount that exceeds the threshold.
