INSTALL ECM
1. Install the 2 ECM brackets with the 4 screws.

  Fig 1: Locating ECM Brackets Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
2. Connect the 2 ECM connectors.
  NOTE:
  When connecting the connectors, make sure that dirt, water or other foreign matter is not stuck between the connectors and other parts.

  Fig 2: Connecting ECM Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

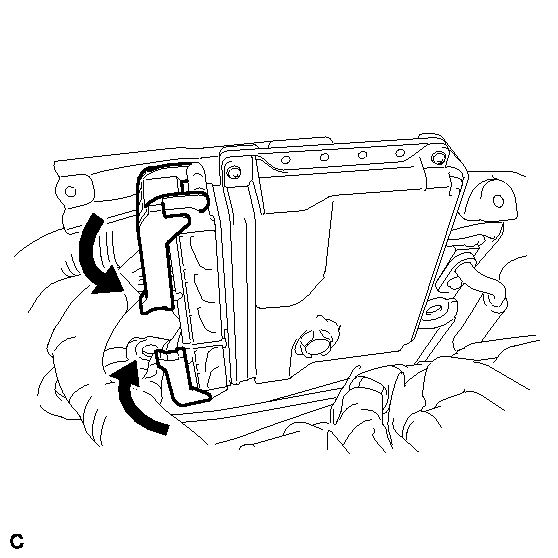

  1. Connect the 2 ECM connectors and lower the 2 levers.
    NOTE:
    Make sure that the 2 levers are securely lowered.

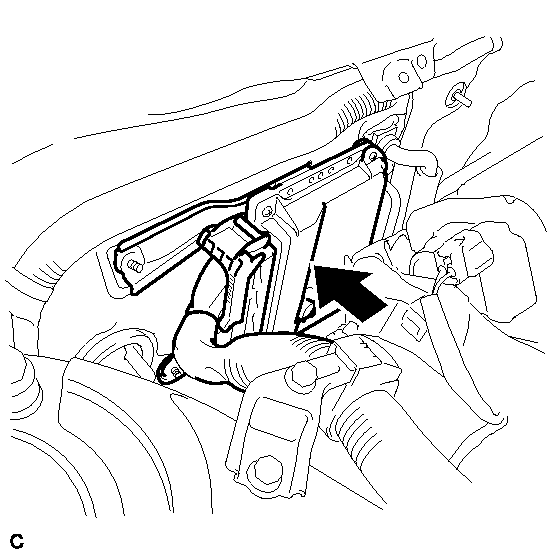

3. Install the ECM to the body.

  Fig 3: Installing ECM To Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

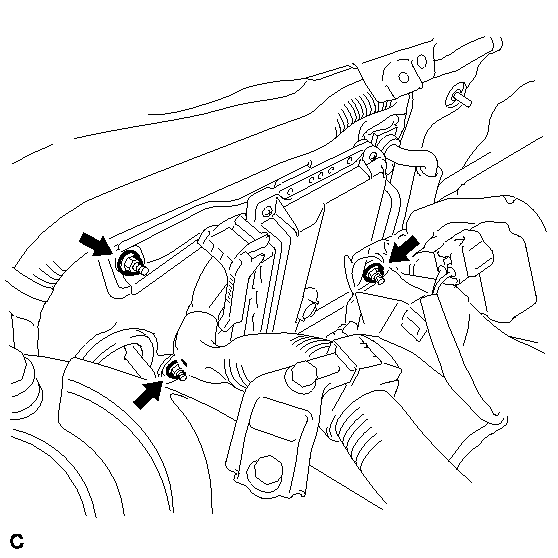

4. Install the ECM with the 3 nuts.

  Fig 4: Locating ECM Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
INSTALL COWL TOP PANEL OUTER . Refer to INSTALLATION - Step 19
INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH . Refer to INSTALLATION - Step 3
INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH . Refer to INSTALLATION - Step 4
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
If the cable is disconnected, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
