Installation (To 12/2010): Installation
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL KNOCK CONTROL SENSOR

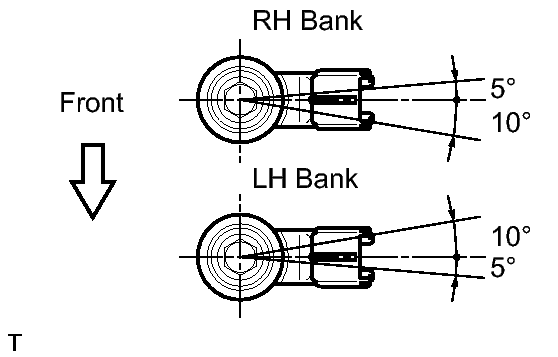

- Install the 2 knock control sensors with the 2 bolts as shown in the illustration.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
- Connect the 2 knock control sensor connectors.
- Install the 2 knock control sensors with the 2 bolts as shown in the illustration.
- INSTALL INTAKE MANIFOLD . Refer to INSTALLATION - Step 18
- INSTALL INTAKE AIR SURGE TANK
- INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- ADD ENGINE COOLANT . Refer to REPLACEMENT - Step 2
- INSPECT FOR COOLANT LEAK . Refer to REPLACEMENT - Step 3
- INSPECT FOR FUEL LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
- INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 14
- INSTALL COWL TOP PANEL OUTER . Refer to INSTALLATION - Step 19
- INSTALL WINDSHIELD WIPER MOTOR & LINK ASSEMBLY
Refer to INSTALLATION
- CHECK FUNCTION OF THROTTLE BODY Refer to step 1
