INSTALL THROTTLE WITH MOTOR BODY ASSEMBLY
1. Install a new throttle body gasket to the intake air surge tank.

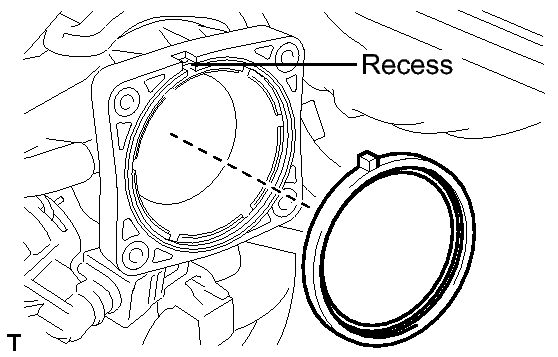

  Fig 1: Install New Throttle Body Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the throttle w/ motor body assembly and wire harness clamp stay to the intake air surge tank with the 4 bolts.

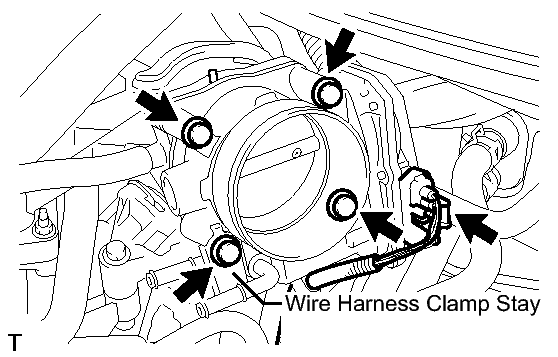

  Fig 2: Locating Throttle W/ Motor Body Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
3. Connect the throttle w/ motor body assembly connector.
CONNECT WATER BY-PASS HOSE
1. Connect the 2 water by-pass hoses to the throttle w/ motor body assembly.

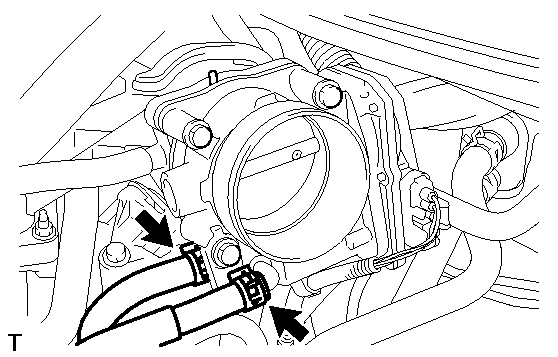

  Fig 3: Locating Water By-Pass Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE . Refer to INSTALLATION - Step 4
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
ADD ENGINE COOLANT . Refer to REPLACEMENT - Step 2
INSPECT FOR COOLANT LEAK . Refer to REPLACEMENT - Step 3
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 14
CHECK FUNCTION OF THROTTLE BODY Refer to step 1
