Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT SPEED SENSOR
1. Install the front speed sensor with the bolt.

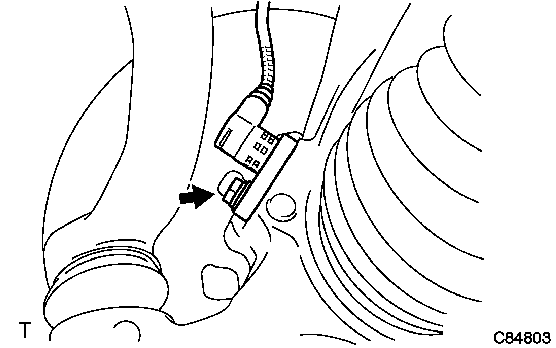

  Fig 1: Locating Front Speed Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  NOTE:
  Prevent foreign matter from attaching to the sensor tip.
2. Install the sensor harness brackets with the 2 bolts to the body and shock absorber assembly.

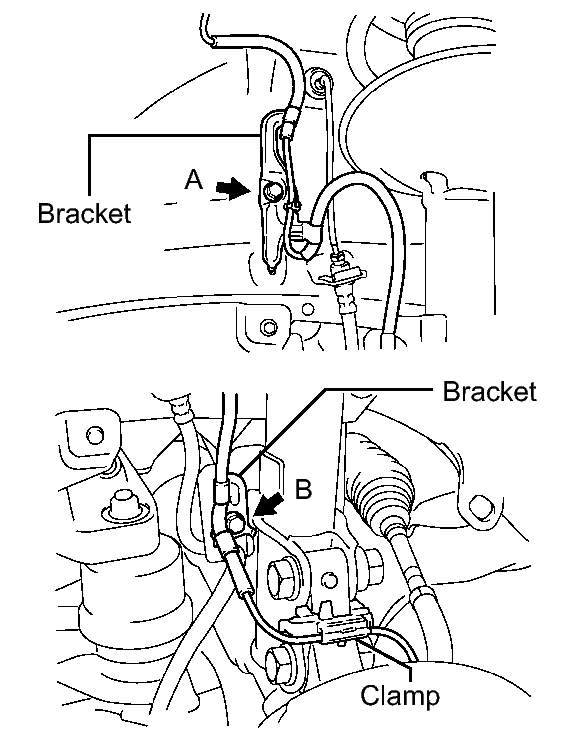

  Fig 2: Sensor Harness Brackets And Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Bolt A

  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  Bolt B

  Torque: 19 N*m (192 kgf*cm, 14 ft.*lbf)
3. Connect the clamp to the steering knuckle.
  NOTE:
  Do not twist the wire harness for front speed sensor when installing the speed sensor.
4. Connect the speed sensor connector and clamp.

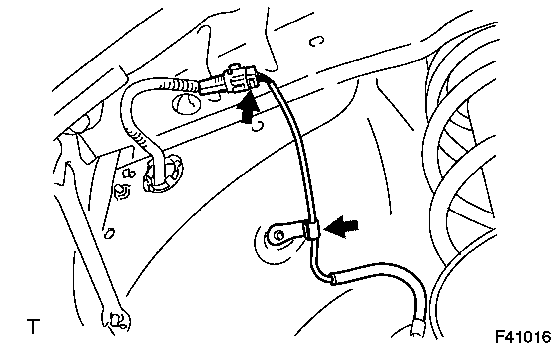

  Fig 3: Locating Speed Sensor Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER LH
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
CHECK FOR SPEED SENSOR SIGNAL
1. Check for the speed sensor signal. Refer to TEST MODE PROCEDURE .
