Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR SPEED SENSOR
1. Clean the contact surface of the axle hub and a new skid control sensor.

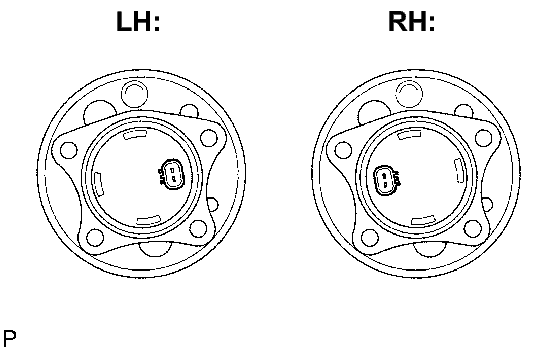

  Fig 1: Identifying Skid Control Sensor On Axle Hub
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Prevent foreign matter from attaching to the sensor rotor.
2. Place the skid control sensor on the axle hub so that the connector is positioned as shown in the illustration.
3. Using SST and a press, install the skid control sensor to the axle hub.

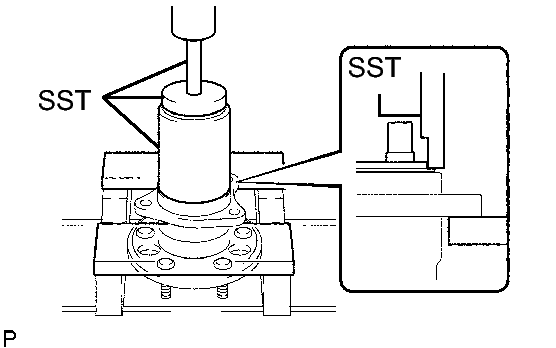

  Fig 2: Installing Skid Control Sensor To Axle Hub Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09830-36010
  - SST: 09950-60010
    - 09951-00650
  - SST: 09950-70010
    - 09951-07100
  NOTE:
  - Do not tap the skid control sensor with a hammer directly.
  - Check that there should be no foreign matter on the skid control sensor detection portion.
  - Press the skid control sensor in the axle hub straight and slowly.
INSTALL REAR AXLE HUB & BEARING ASSEMBLY LH
1. Install the rear axle hub & bearing assembly with the 4 bolts.

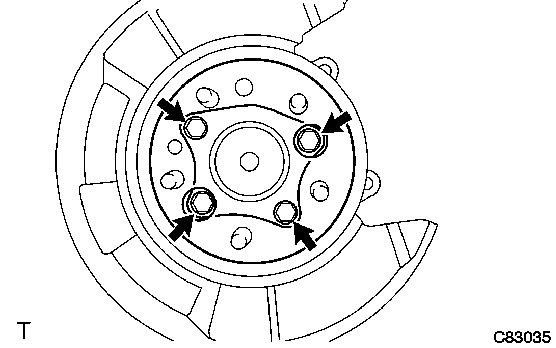

  Fig 3: Locating Rear Axle Hub Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 80 N*m (816 kgf*cm, 59 ft.*lbf)
INSTALL REAR DISC
INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH . Refer to INSTALLATION - Step 10
CONNECT SKID CONTROL SENSOR WIRE
1. Connect the connector to the skid control sensor.

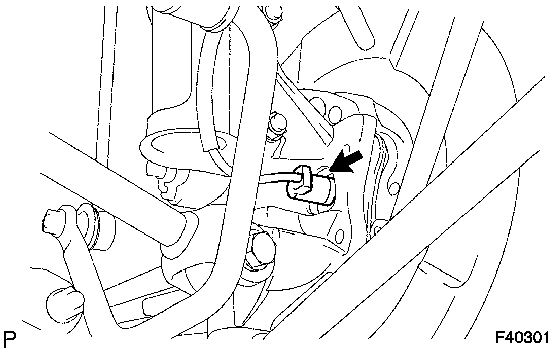

  Fig 4: Locating Skid Control Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSPECT REAR WHEEL ALIGNMENT
CHECK FOR SPEED SENSOR SIGNAL
1. Check for speed sensor signal. Refer to TEST MODE PROCEDURE .
