Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL STEERING ANGLE SENSOR
    1. Install the steering angle sensor to the spiral cable.

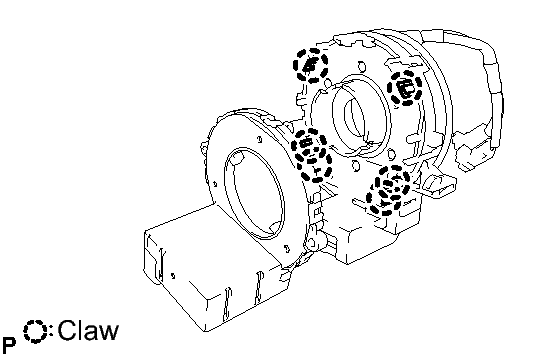

      Fig 1: Locating Steering Angle Sensor Claws
      GTY179763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Engage the claws securely.
      • Do not damage the claws.
  2. INSPECT SPIRAL CABLE  . Refer to INSPECTION - Step 1
  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. INSTALL SPIRAL CABLE  . Refer to INSTALLATION - Step 2
  5. CENTER SPIRAL CABLE  . Refer to INSTALLATION - Step 5
  6. INSTALL STEERING WHEEL ASSEMBLY  . Refer to INSTALLATION - Step 14
  7. INSTALL STEERING PAD  . Refer to INSTALLATION - Step 1
  8. INSPECT STEERING PAD  . Refer to INSTALLATION - Step 5
  9. INSPECT STEERING WHEEL CENTER POINT
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:
    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
    • Make sure that the cable has been disconnected from the battery terminal for at least 2 seconds before reconnecting the cable.
    • Connect the cable to the negative (-) battery terminal with the front wheels facing straight ahead.
  11. INSPECT SRS WARNING LIGHT  . Refer to INSTALLATION - Step 7
