VSC Off Switch: Inspection: Inspection
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

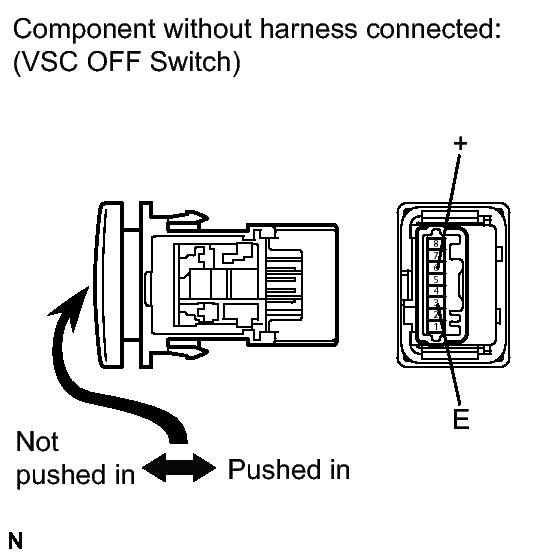

- INSPECT VSC OFF SWITCH
- Disconnect the VSC OFF switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 6 (+) - 3 (E) Switch is pushed in Below 1 Ω 6 (+) - 3 (E) Switch is not pushed in 10 kΩ or higher If the value is not as specified, replace the VSC OFF switch.
