Alignment

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

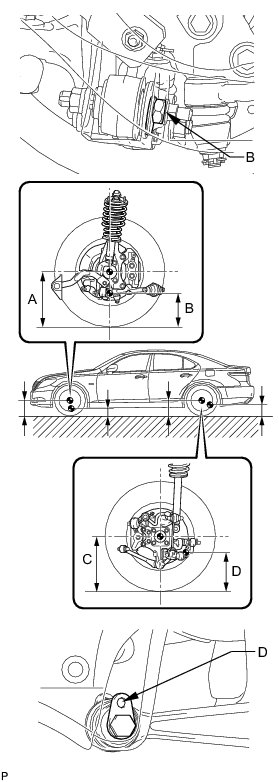

Measuring Points:

A: Ground clearance of front wheel center

B: Ground clearance of head center of bolt used to install the front No. 1 suspension lower arm to the front suspension member

C: Ground clearance of rear wheel center

D: Ground clearance of pit center of the attachment rear suspension arm

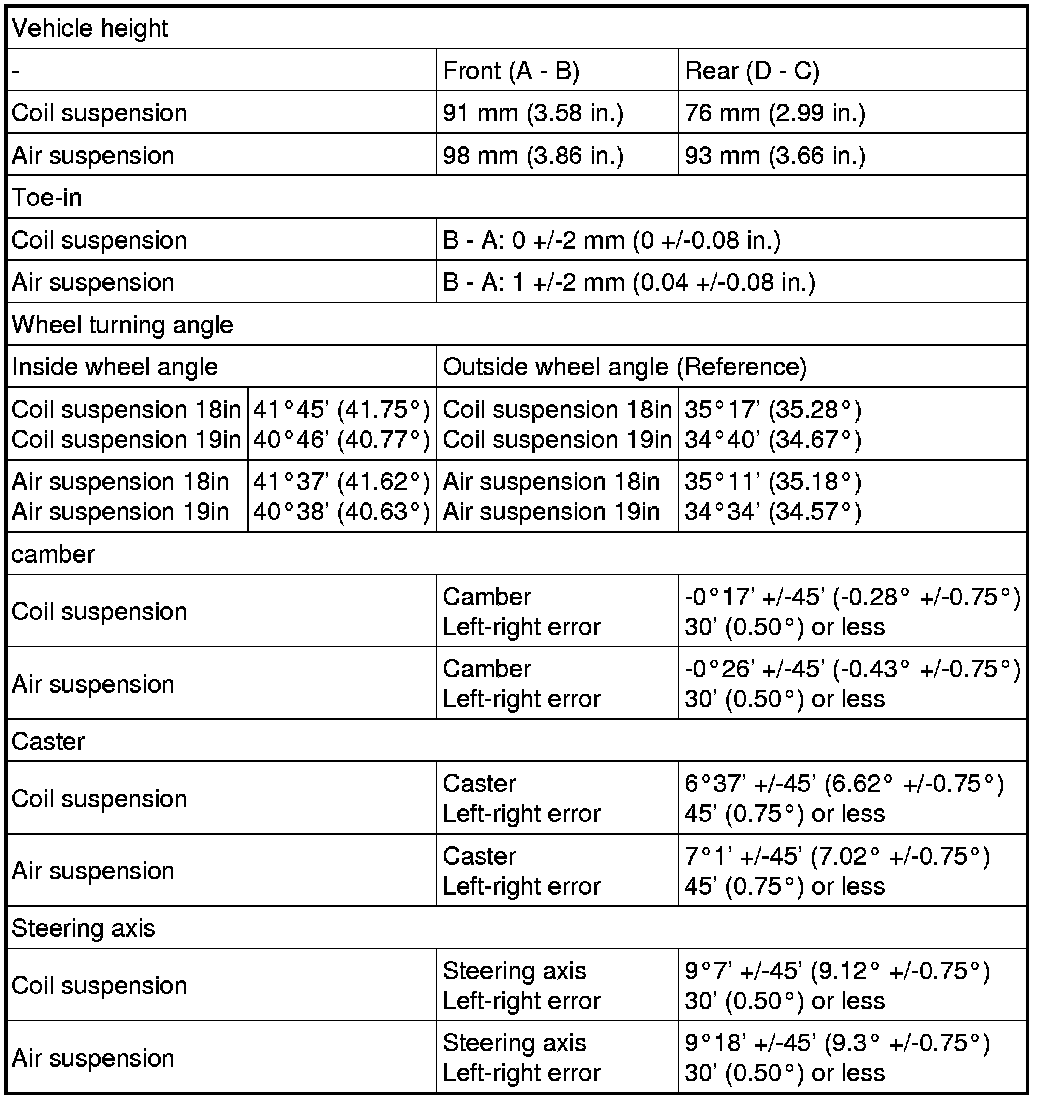

Front wheel alignment (for 2WD)

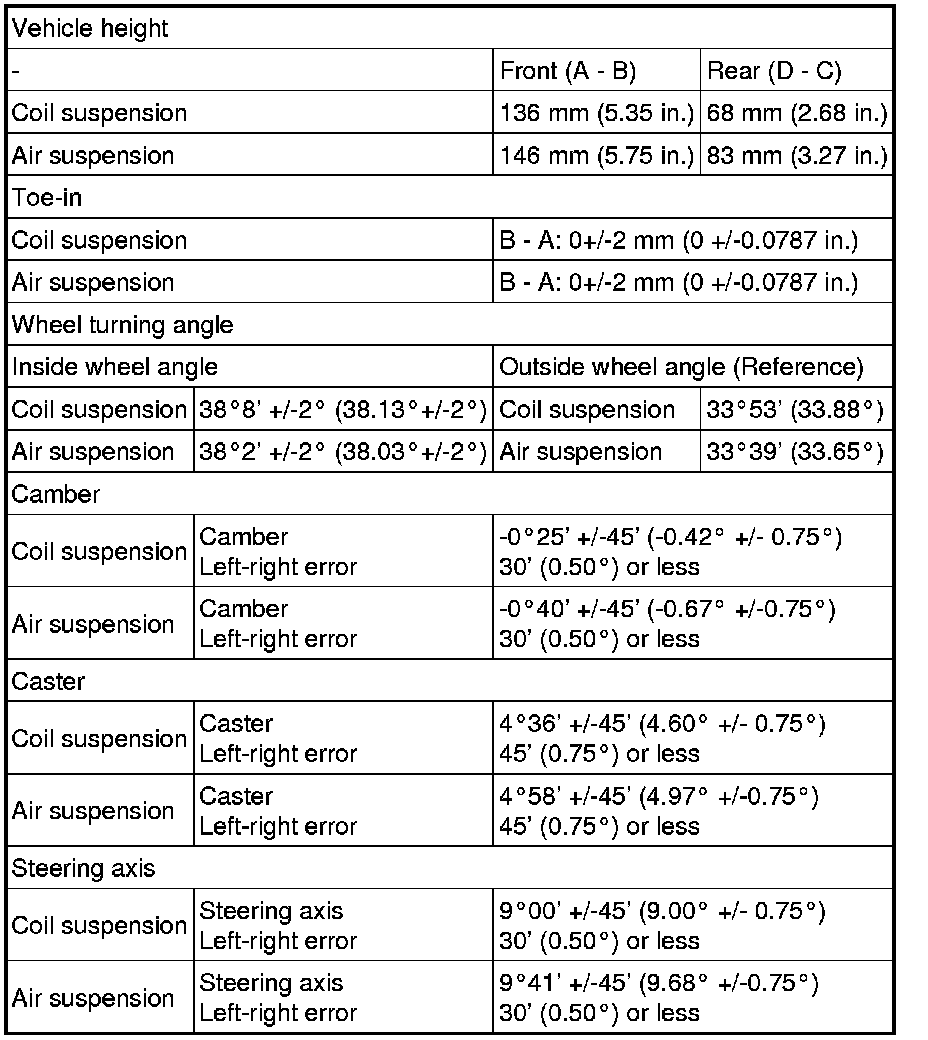

Front Wheel Alignment (for AWD)

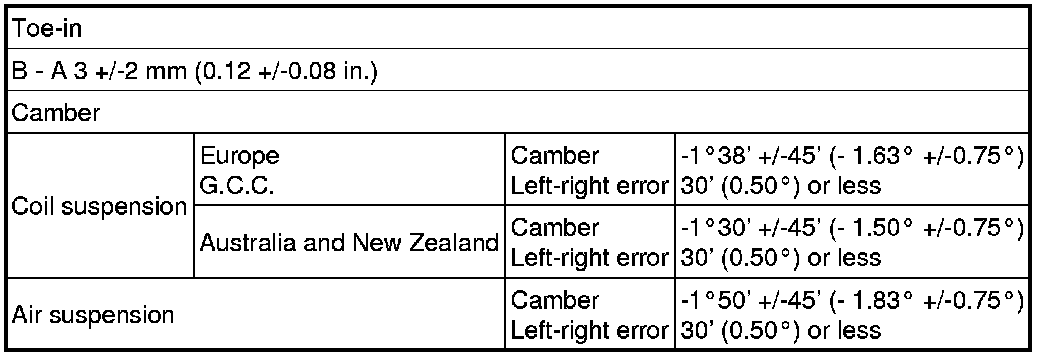

Rear Wheel Alignment





Standard Vehicle Height (w/o Air Suspension unloaded):





Standard Vehicle Height (w/ Air Suspension unloaded):
