Service Data





SERVICE SPECIFICATIONS: BRAKE: SERVICE DATA

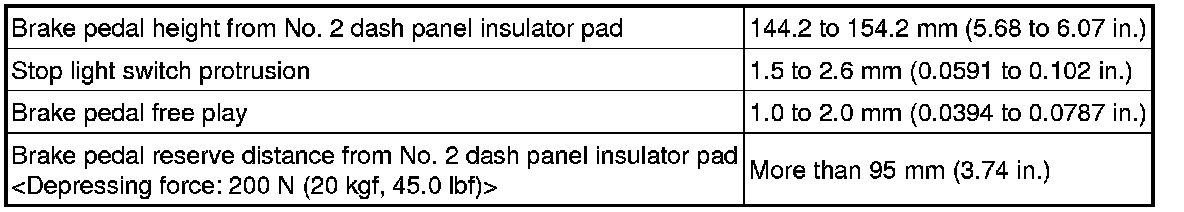

Brake Pedal

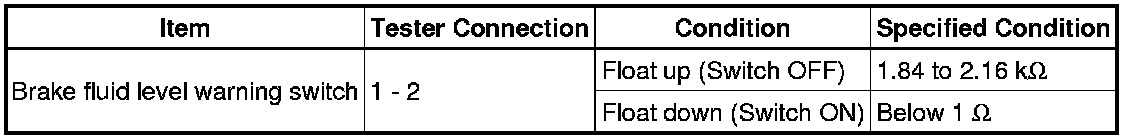

Brake Master Cylinder

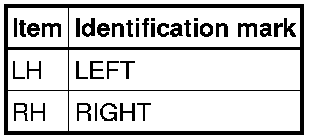

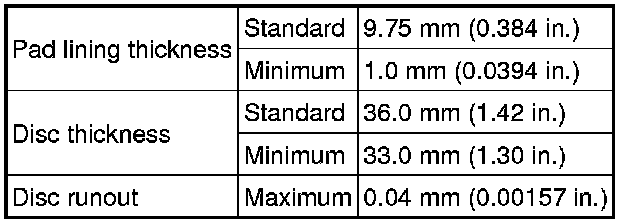

Front Brake (for 6-Pot Caliper)

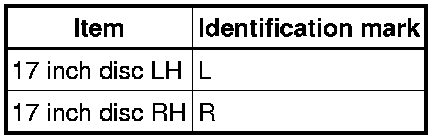

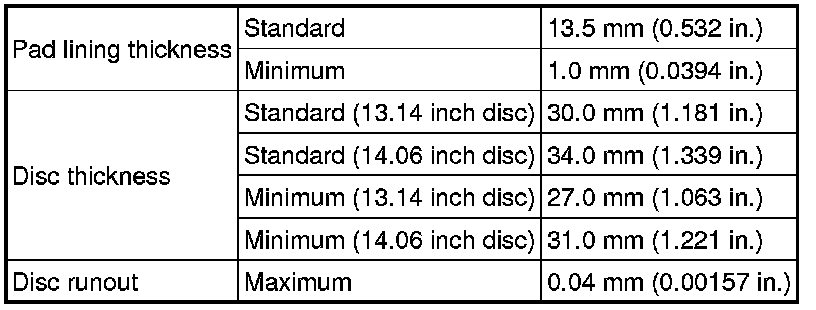

Front Brake (except 6-Pot Caliper)

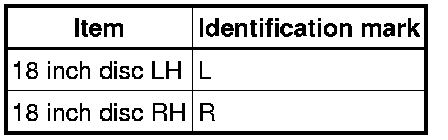

Rear Brake
