Id Code Box: Installation: Installation

  1. INSTALL ID CODE BOX
    1. Connect the connector.
    2. Attach the 3 claws to install the ID code box.

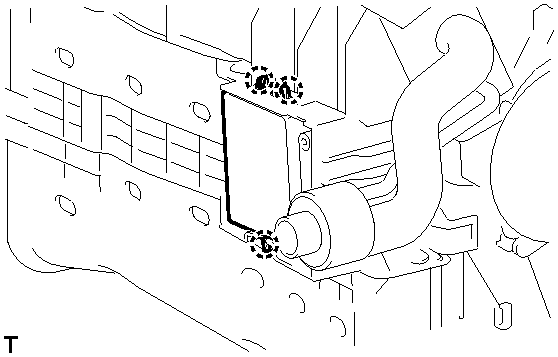

      Fig 1: Remove/Install ID Code Box Connector
      GTY130659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AIR CONDITIONING UNIT ASSEMBLY
    1. Install the air conditioning unit. Refer to INSTALLATION .
  3. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Install the instrument panel safety pad. Refer to INSTALLATION .
  4. REGISTER ECU CODE
    1. Register the ECU code. Refer to REGISTRATION .
