Front Passenger Side Power Window Switch: Installation: Installation

  1. INSTALL FRONT POWER WINDOW REGULATOR SWITCH ASSEMBLY

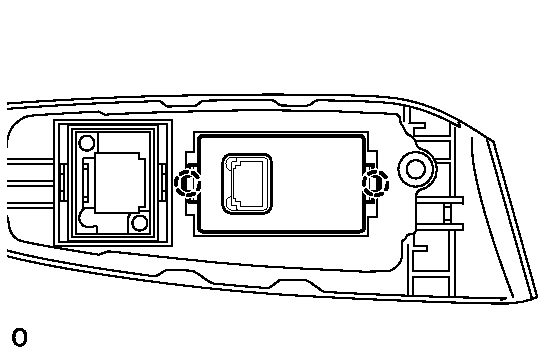

    1. Attach the 2 claws to install the power window regulator switch assembly.
      Fig 1: Identifying Power Window Regulator Switch Assembly Claws
      GTY116636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

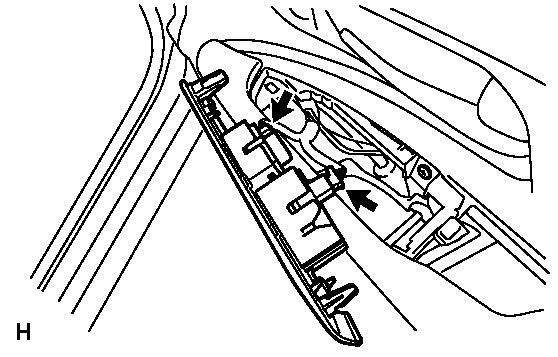

    2. Connect the 2 connectors.
      Fig 2: Locating Connectors
      GTY280087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

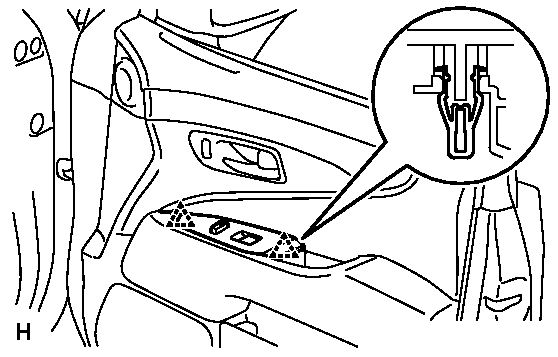

    3. Attach the 2 clips to install the armrest base panel assembly.
      Fig 3: Identifying Armrest Base Assembly Clamps
      GTY288771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
