LEXUS ENFORM or Safety Connect: Notes

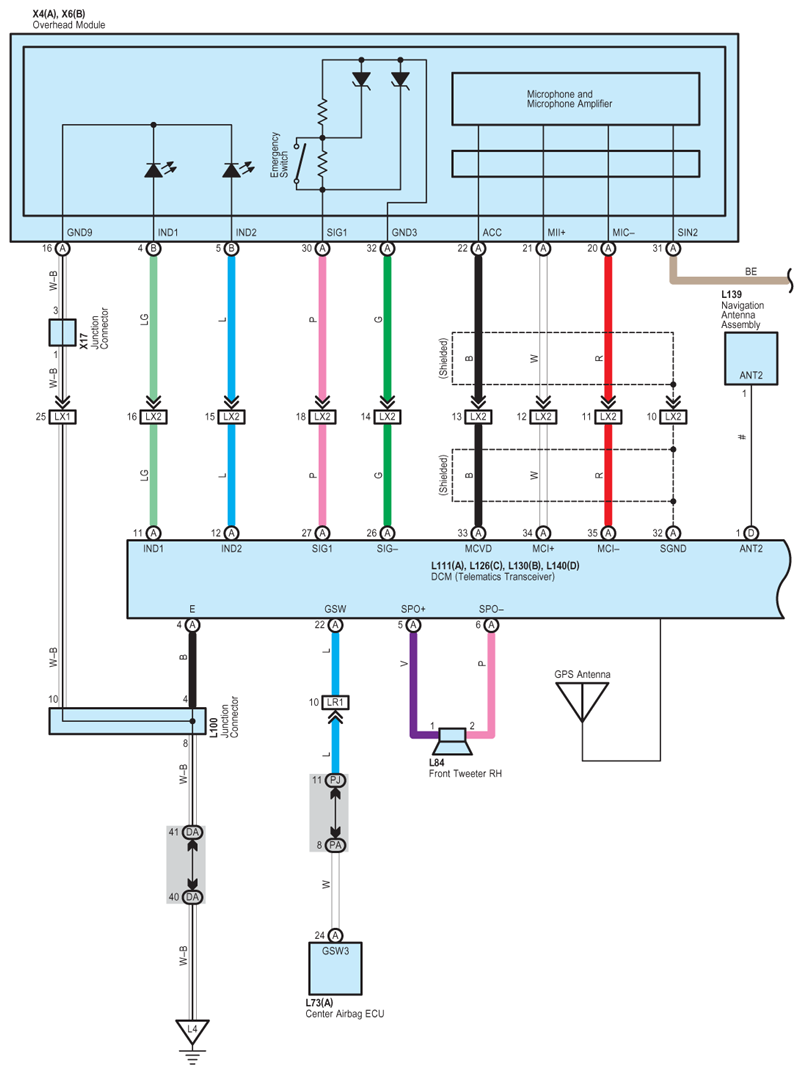

Fig 1: Lexus Enform Or Safety Connect - Circuit Diagram (1 Of 4)
G07565181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

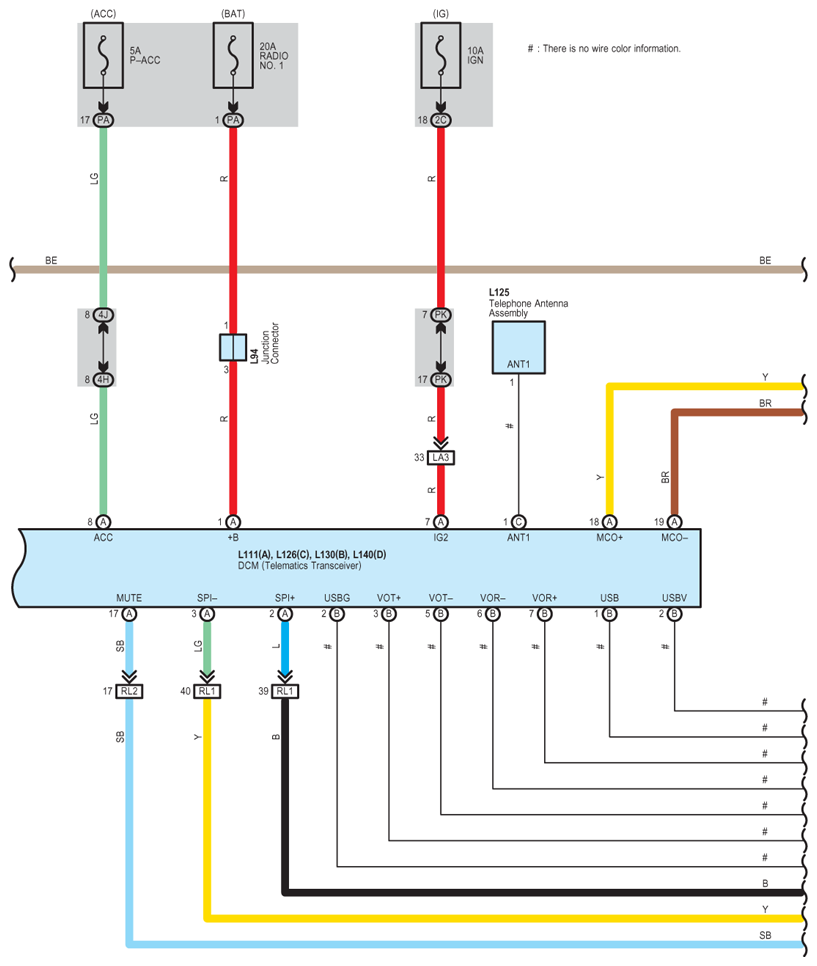

Fig 2: Lexus Enform Or Safety Connect - Circuit Diagram (2 Of 4)
G07565182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

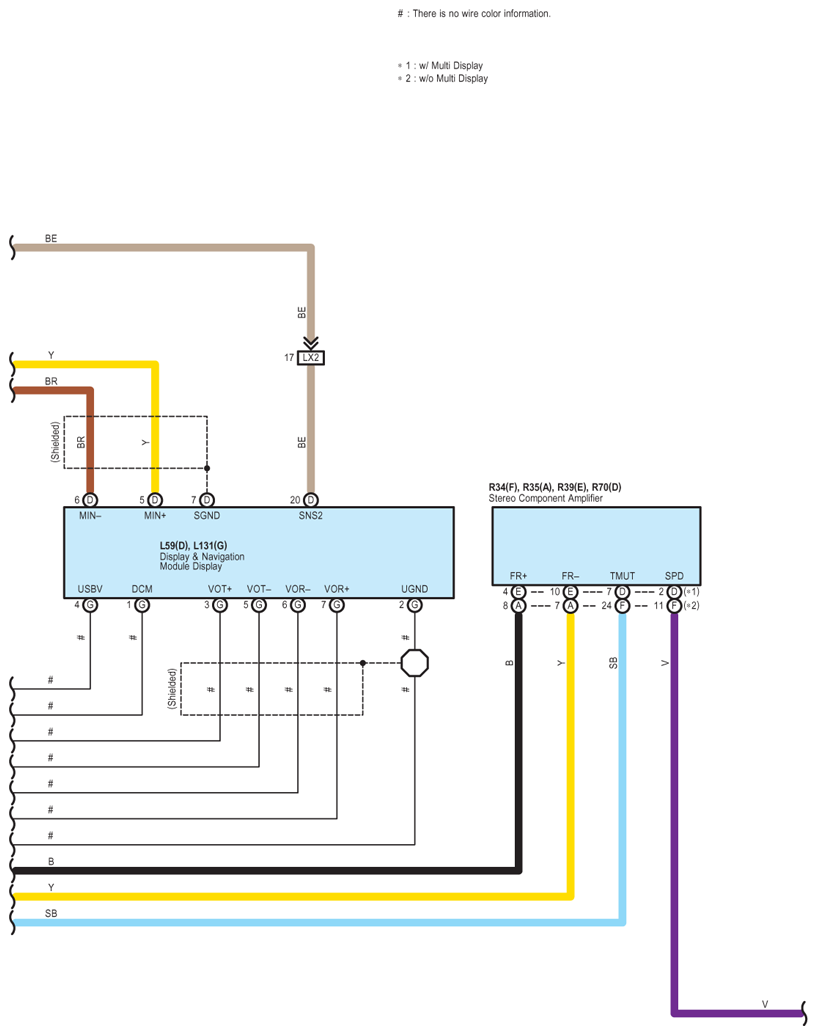

Fig 3: Lexus Enform Or Safety Connect - Circuit Diagram (3 Of 4)
G07565183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

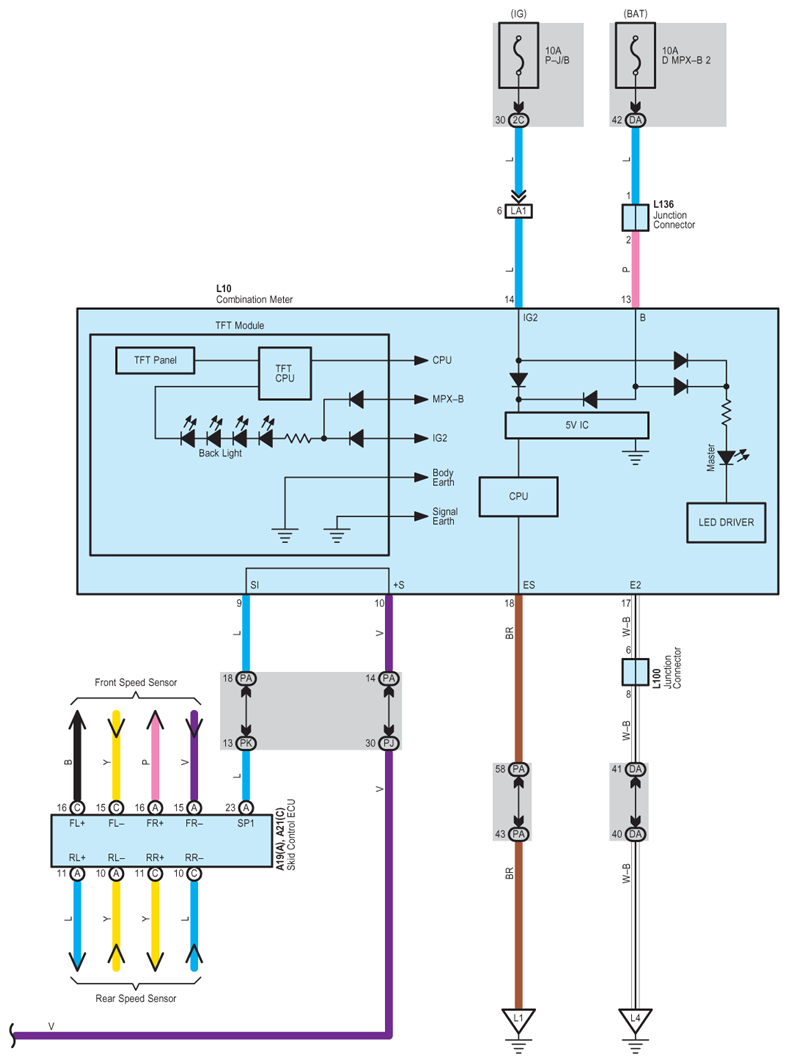

Fig 4: Lexus Enform Or Safety Connect - Circuit Diagram (4 Of 4)
G07565184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
