HEATED OXYGEN SENSOR (for 2WD): Removal: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 8
  2. REMOVE FRONT DOOR SCUFF PLATE RH  . Refer to REMOVAL - Step 7
  3. REMOVE COWL SIDE TRIM BOARD LH  . Refer to REMOVAL - Step 8
  4. REMOVE COWL SIDE TRIM BOARD RH  . Refer to REMOVAL - Step 9
  5. REMOVE FRONT FLOOR SILENCER PAD LH
  6. REMOVE FRONT FLOOR SILENCER PAD RH
  7. REMOVE REAR NO. 2 AIR DUCT
  8. REMOVE REAR NO. 1 AIR DUCT
  9. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
    1. Disconnect the heated oxygen sensor connector.

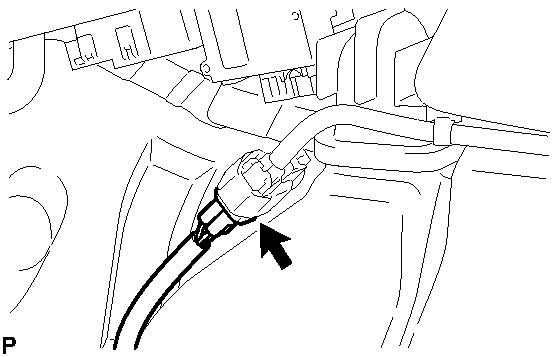

      Fig 1: Locating Heated Oxygen Sensor Connector
      GTY286995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the grommet.

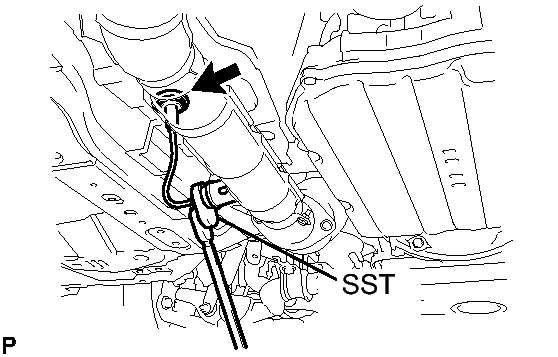

      Fig 2: Remove/Install Heated Oxygen Sensor From Front Exhaust Pipe Assembly
      GTY288244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
      • SST: 09224-00010
  10. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
    1. Disconnect the heated oxygen sensor connector.

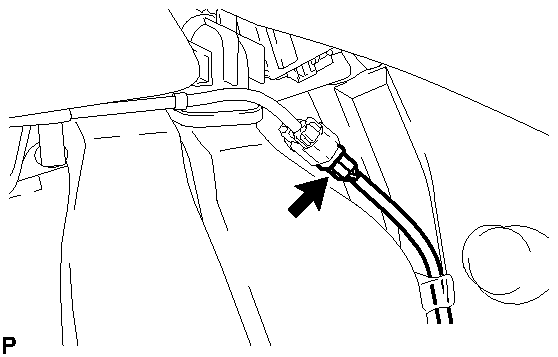

      Fig 3: Locating Heated Oxygen Sensor Connector
      GTY147532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the grommet.

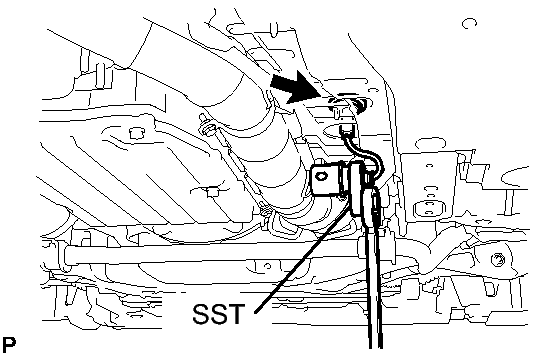

      Fig 4: Identifying Heated Oxygen Sensor
      GTY288245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
      • SST: 09224-00010
