Fuel Pump: Disassembly: Disassembly

REMOVE FUEL SENDER GAUGE ASSEMBLY
1. Disconnect the fuel sender gauge connector from the fuel suction plate.

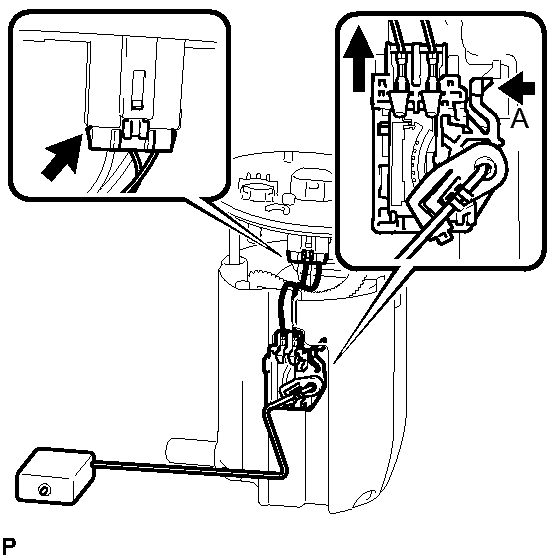

  Fig 1: Locating Fuel Sender Gauge Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Press down on the sender gauge claw labeled A. Then slide the sender gauge upward.
  NOTE:
  Do not touch the sender plate's resistance plate area or the contact area.
REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY
1. Disconnect the fuel pump connector from the fuel suction plate.

  Fig 2: Locating Fuel Pump Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using needle nose pliers, remove the E-ring.

  Fig 3: Identifying E-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the fuel suction plate and spring from the sub-tank.
REMOVE FUEL FILTER
1. Detach the 2 claws and remove the filter from the sub-tank.

  Fig 4: Locating Fuel Filter Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE JET PUMP

Fig 5: Removing Jet Pump From Sub-Tank
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a screwdriver with the tip taped, remove the jet pump from the sub-tank.
2. Remove the O-ring from the jet pump.

  Fig 6: Identifying Jet Pump O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP ASSEMBLY

Fig 7: Locating Fuel Pump Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the fuel pump connector from the fuel pump.
2. Detach the 5 claws on the filter and remove the fuel pump from the fuel filter.

  Fig 8: Locating O-Ring And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the fuel main valve from the fuel filter.
4. Remove the 2 O-rings from the fuel main valve.
5. Remove the O-ring and spacer from the fuel filter.
