Ignition Coil And Spark Plug: Installation: Installation

  1. INSTALL SPARK PLUG
    Fig 1: Removing/Installing Spark Plugs
    GTY101167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a 16 mm plug wrench, install the 8 spark plugs.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  2. INSTALL IGNITION COIL ASSEMBLY

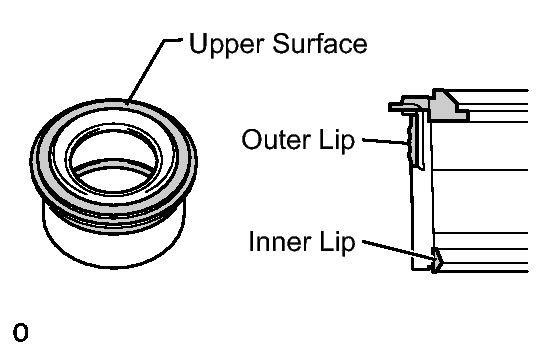

    Fig 2: Identifying Spark Plug Tube Gasket
    GTY103859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Perform a visual inspection of the spark plug tube gasket.

      Standard

      Area Specified condition
      Upper surface No scratches or deformation
      Outer lip No scratches or deformation
      Inner lip No scratches

      If the result is not as specified, replace the spark plug tube gasket.

    2. Slide the spark plug tube gasket onto the ignition coil as shown in the illustration.

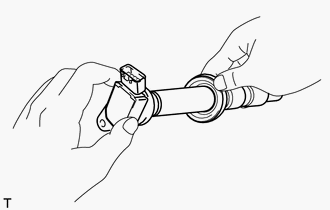

      Fig 3: Sliding Spark Plug Tube Gasket Onto Ignition Coil
      GTY147602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. After installing the spark plug tube gasket, firmly insert the ignition coil as shown in the illustration.

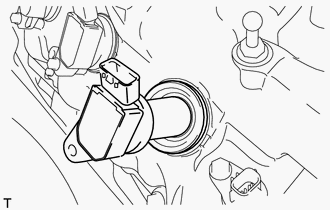

      Fig 4: Identifying Ignition Coil
      GTY127668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the 8 bolts.

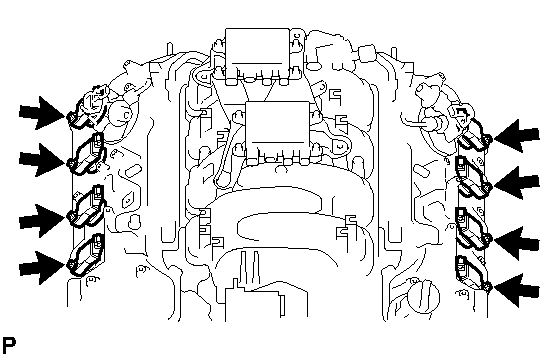

      Fig 5: Locating Ignition Coil Connectors With Bolts
      GTY288246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    5. Connect the 8 ignition coil connectors.
  3. INSTALL NO. 6 ENGINE COVER SUB-ASSEMBLY (for AWD)
    1. Install the No. 6 engine cover with the 2 nuts.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

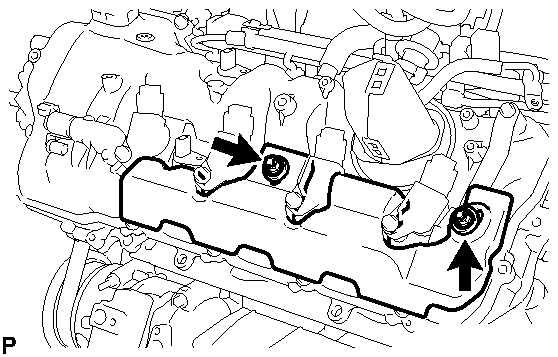

      Fig 6: Locating No. 6 Engine Cover Nuts
      GTY271548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 5 ENGINE COVER SUB-ASSEMBLY (for AWD)
    1. Install the No. 5 engine cover with the 2 nuts.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

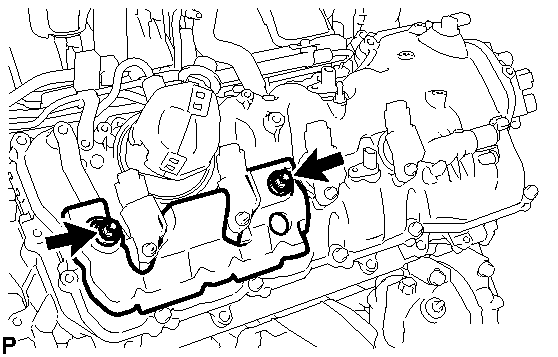

      Fig 7: Locating No. 5 Engine Cover Nuts
      GTY271336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE (for AWD)  . Refer to INSTALLATION - Step 61
  6. CONNECT ENGINE WIRE
    1. Install the engine wire to the No. 1 relay block with the nut.

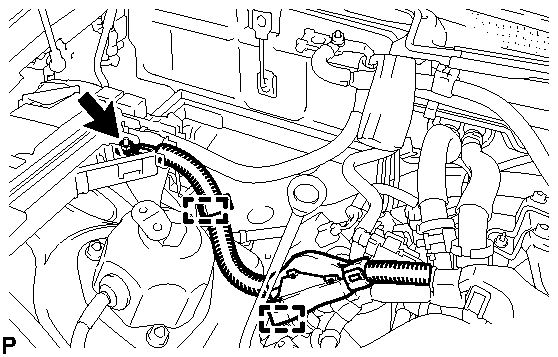

      Fig 8: Locating No. 1 Relay Block Engine Wire With Clamps
      GTY288424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

    2. Connect the 2 clamps.
    3. Install the No. 1 relay block cover.
  7. INSTALL BATTERY TRAY
    1. Install the battery tray with the 3 bolts.

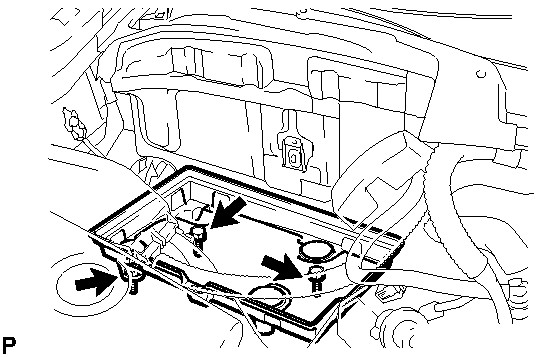

      Fig 9: Locating Battery Tray Bolts
      GTY269814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N*m (55 kgf*cm, 47 in.*lbf)

  8. INSTALL BATTERY
    1. Install the battery.
    2. Install the battery insulator.
    3. Install the battery clamp with the nut.

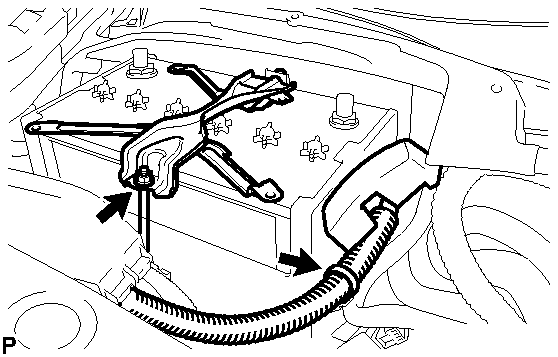

      Fig 10: Locating Battery Cable Clamp
      GTY269176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N*m (55 kgf*cm, 47 in.*lbf)

    4. Connect the battery cable clamp.
    5. Connect the cable to the positive (+) battery terminal.

      Torque: 5.4 N*m (55 kgf*cm, 47 in.*lbf)

  9. INSTALL SKID CONTROL ECU BRACKET  . Refer to INSTALLATION - Step 1
  10. INSTALL SKID CONTROL ECU  . Refer to INSTALLATION - Step 2
  11. INSTALL AIR CLEANER ASSEMBLY RH  . Refer to INSTALLATION - Step 7
  12. INSTALL AIR CLEANER ASSEMBLY LH  . Refer to INSTALLATION - Step 6
  13. INSTALL INTAKE AIR CONNECTOR PIPE  . Refer to INSTALLATION - Step 2
  14. INSTALL NO. 1 AIR CLEANER INLET  . Refer to INSTALLATION - Step 3
  15. INSTALL ENGINE ROOM SIDE COVER RH  . Refer to INSTALLATION - Step 102
  16. INSTALL ENGINE ROOM SIDE COVER LH  . Refer to INSTALLATION - Step 103
  17. INSTALL AIR CLEANER INLET COVER  . Refer to INSTALLATION - Step 7
  18. INSTALL V-BANK COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 8
  19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  20. INSTALL COWL TOP VENTILATOR LOUVER RH  . Refer to INSTALLATION - Step 11
