Transfer Oil: Replacement: Replacement

DRAIN TRANSFER OIL

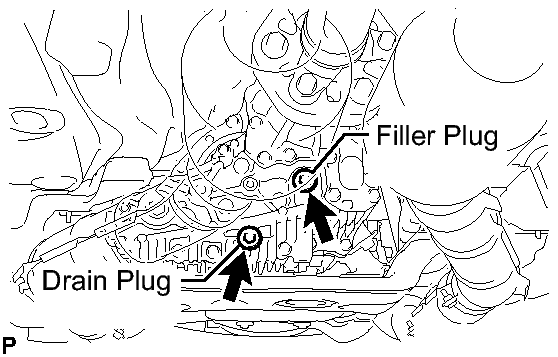

Fig 1: Locating Transfer Oil Drain Plug & Filler Plug
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a 10 mm hexagon wrench, remove the filler plug and gasket.
2. Using a 10 mm hexagon wrench, remove the drain plug and gasket, and drain the transfer oil.
ADD TRANSFER OIL
1. Install a new gasket into the drain plug and then install the drain plug with a 10 mm hexagon wrench.
  Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
2. Add oil so that the oil level is between 0 to 5.0 mm (0 to 0.197 in.) from the bottom lip of the filler plug hole.
  Oil grade

  Toyota Genuine Transfer gear oil LL 80 or Toyota Genuine Differential gear oil LX 75W-85 GL-5 or equivalent

  Standard capacity

  0.7 liters (0.7 US qts, 0.6 Imp. qts)

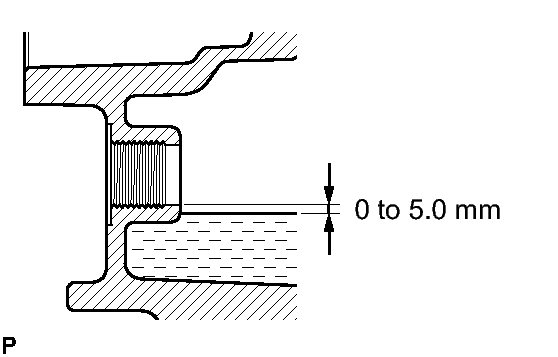

  Fig 2: Checking Transfer Oil Level
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Add oil slowly.
  - Add oil a little at a time, waiting several minutes between each addition of oil.
3. Check that the oil level.
  NOTE:
  Keep the vehicle level during inspection.
4. Install a new gasket into the filler plug and then install the plug with a 10 mm hexagon wrench.
  Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
5. Drive the vehicle and check the oil level again.
