Battery Current Sensor: Installation: Installation

INSTALL BATTERY CURRENT SENSOR

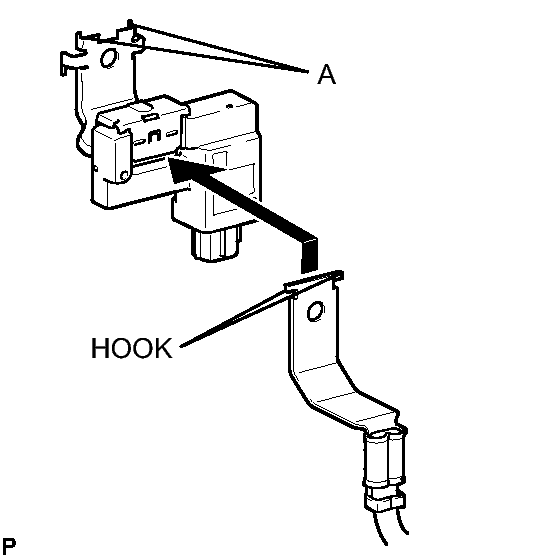

Fig 1: Attaching Hook To Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Insert the hook of the ground terminal through the battery current sensor's hole. Then attach the hook to the parts labeled A of the bracket.
2. Hook the bracket onto the hole on the engine room body, and install the battery current sensor assembly with the bolt.

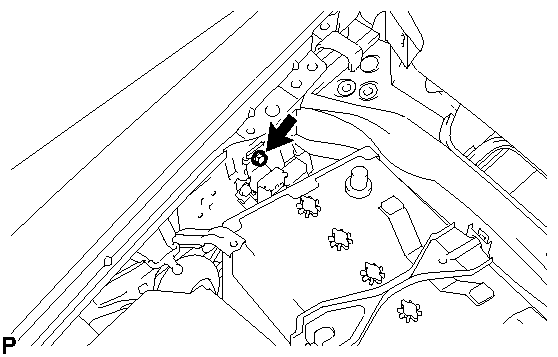

  Fig 2: Locating Battery Ground Terminal Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
3. Connect the connector to the battery current sensor assembly.
INSTALL FRONT FENDER PROTECTOR UPPER RH . Refer to INSTALLATION - Step 10
INSTALL ENGINE ROOM SIDE COVER RH . Refer to INSTALLATION - Step 102
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL COWL TOP VENTILATOR LOUVER RH . Refer to INSTALLATION - Step 11
PERFORM INITIALIZATION
1. Perform initialization. Refer to INITIALIZATION .
  NOTE:
  Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
