Camshaft Position Sensor: Removal: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY  . See step  3
  2. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the camshaft position sensor connector.

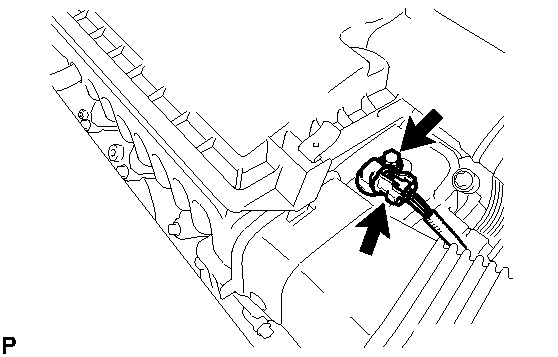

      Fig 1: Locating Sensor Bolt
      GTY142497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor.
