Skid Control Ecu: Components: Illustration

Fig 1: Identifying Skid Control ECU Replacement Components (1 Of 2)
GTY256959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

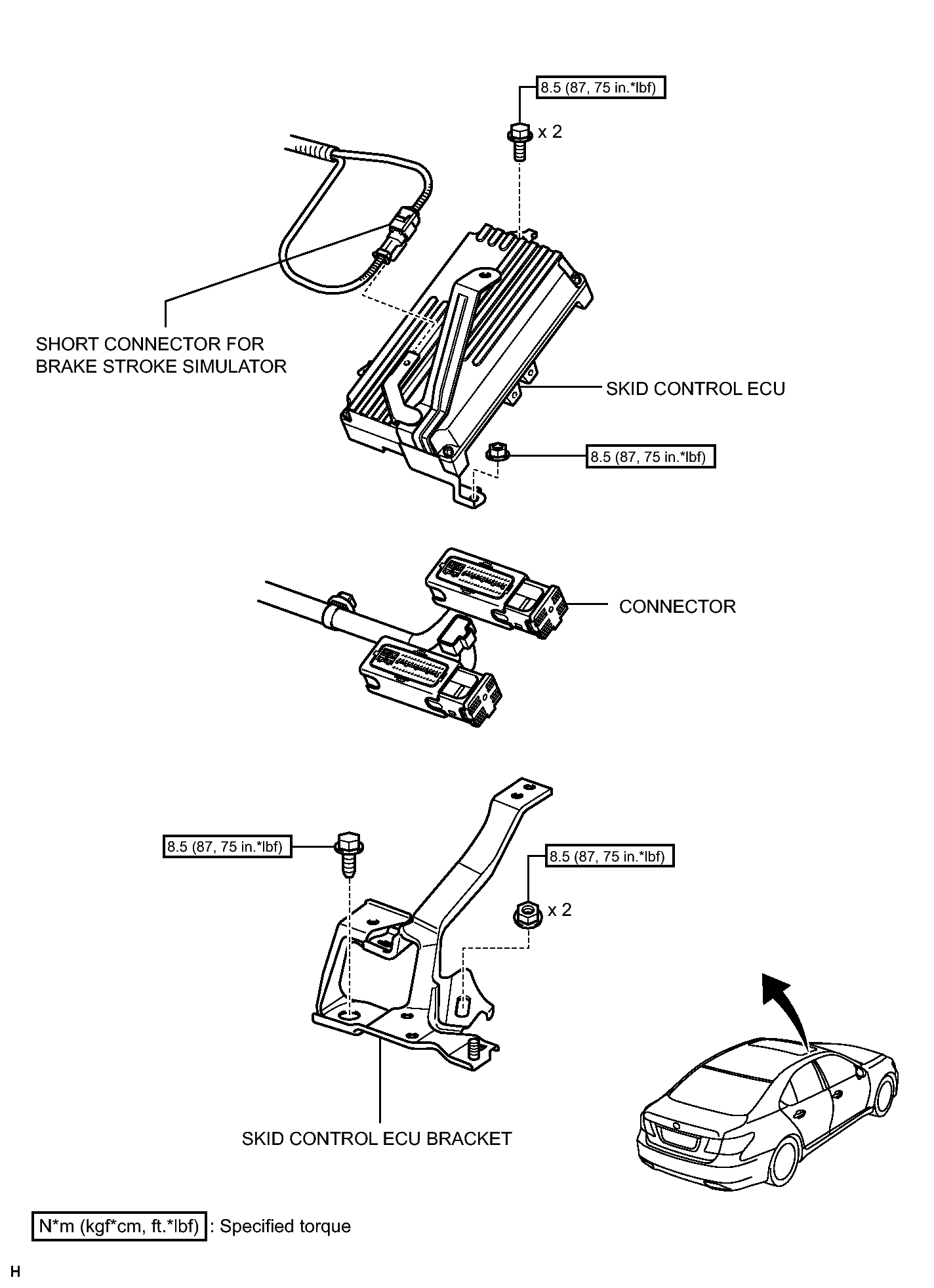

Fig 1: Identifying Skid Control ECU Replacement Components (2 Of 2) With Torque Specifications
GTY274804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
