Ground Point: Notes

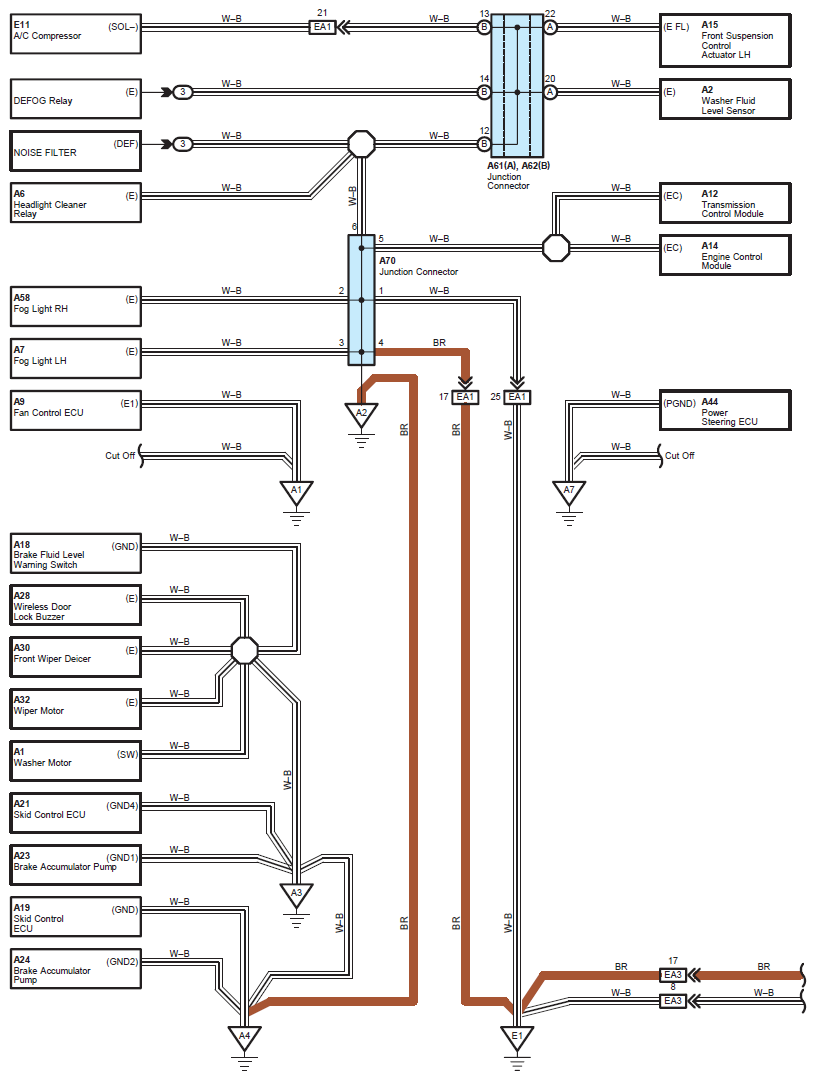

Fig 1: Ground Point - Wiring Diagram (1 Of 10)

G07565266

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

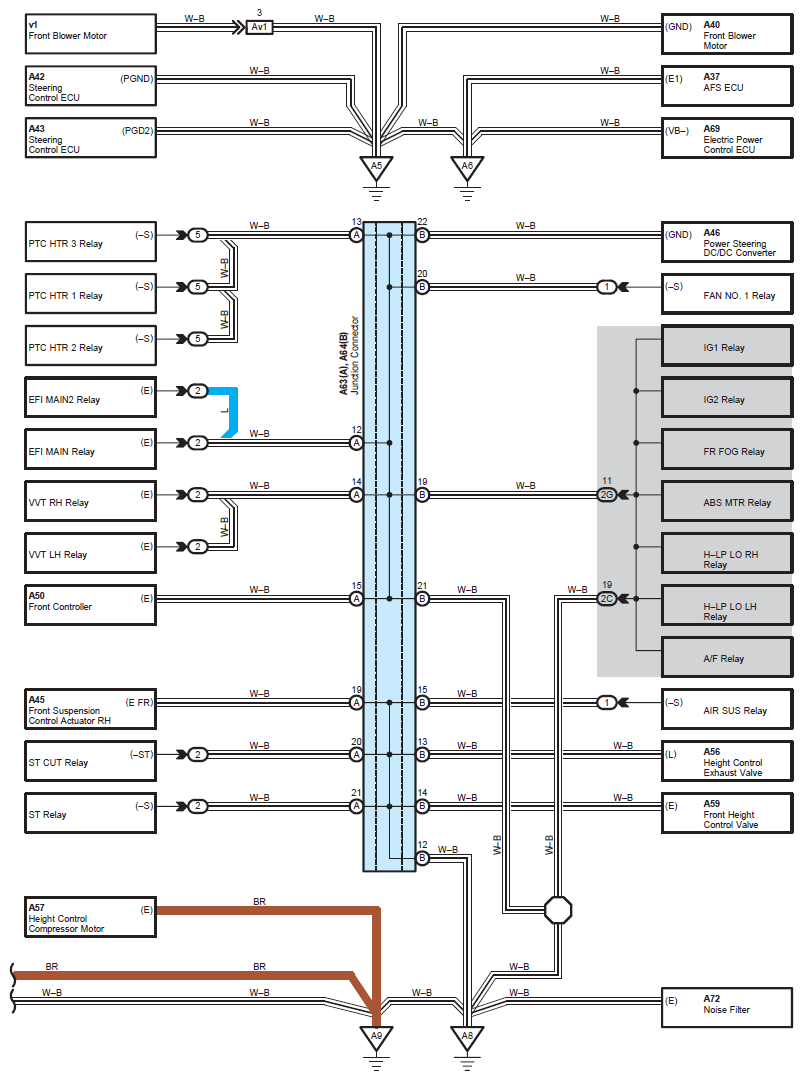

Fig 2: Ground Point - Wiring Diagram (2 Of 10)

G07565267

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

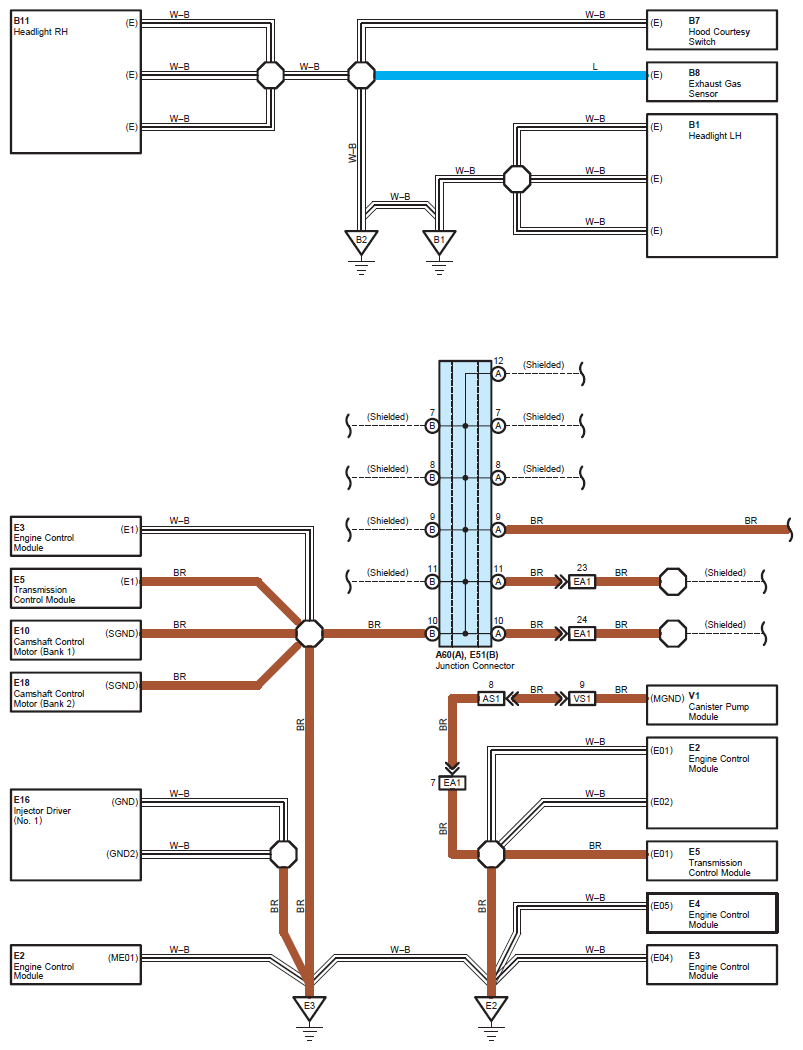

Fig 3: Ground Point - Wiring Diagram (3 Of 10)

G07565268

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

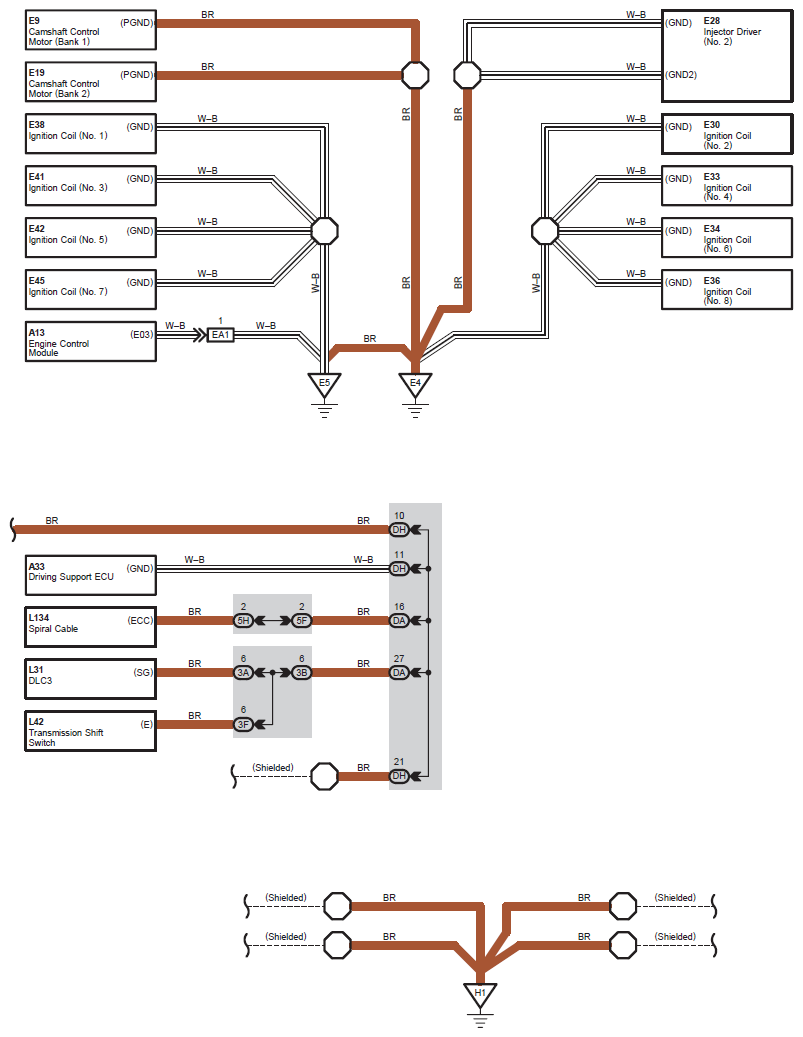

Fig 4: Ground Point - Wiring Diagram (4 Of 10)

G07565269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

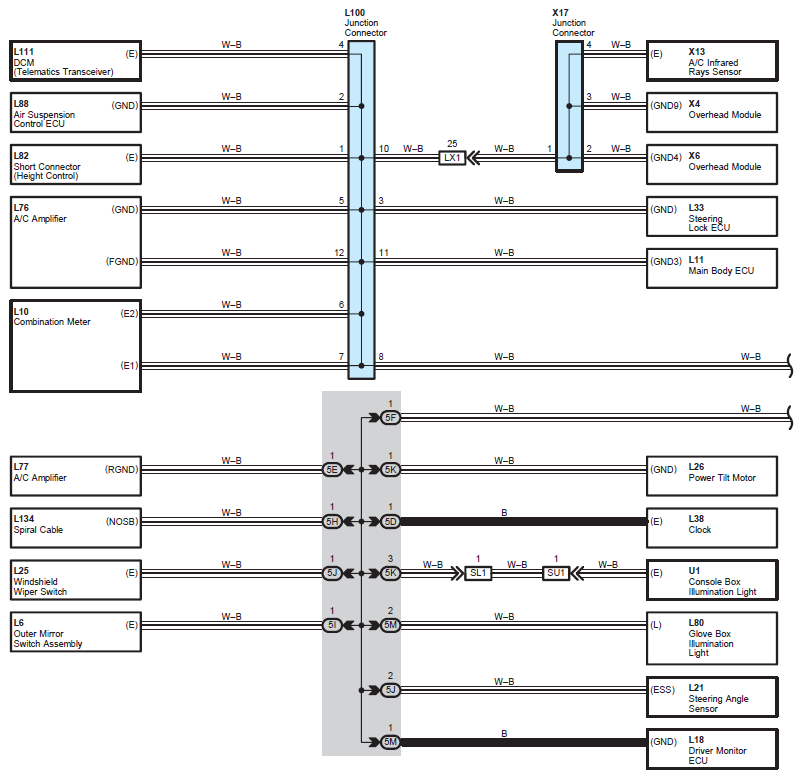

Fig 5: Ground Point - Wiring Diagram (5 Of 10)

G07565270

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

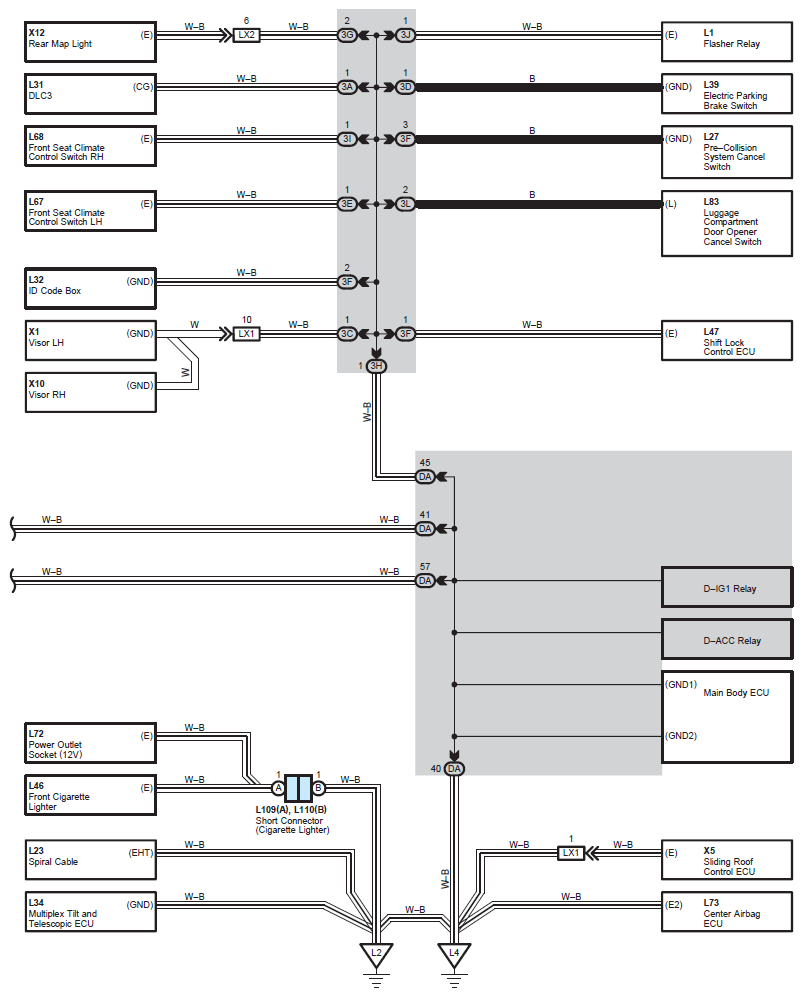

Fig 6: Ground Point - Wiring Diagram (6 Of 10)

G07565271

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

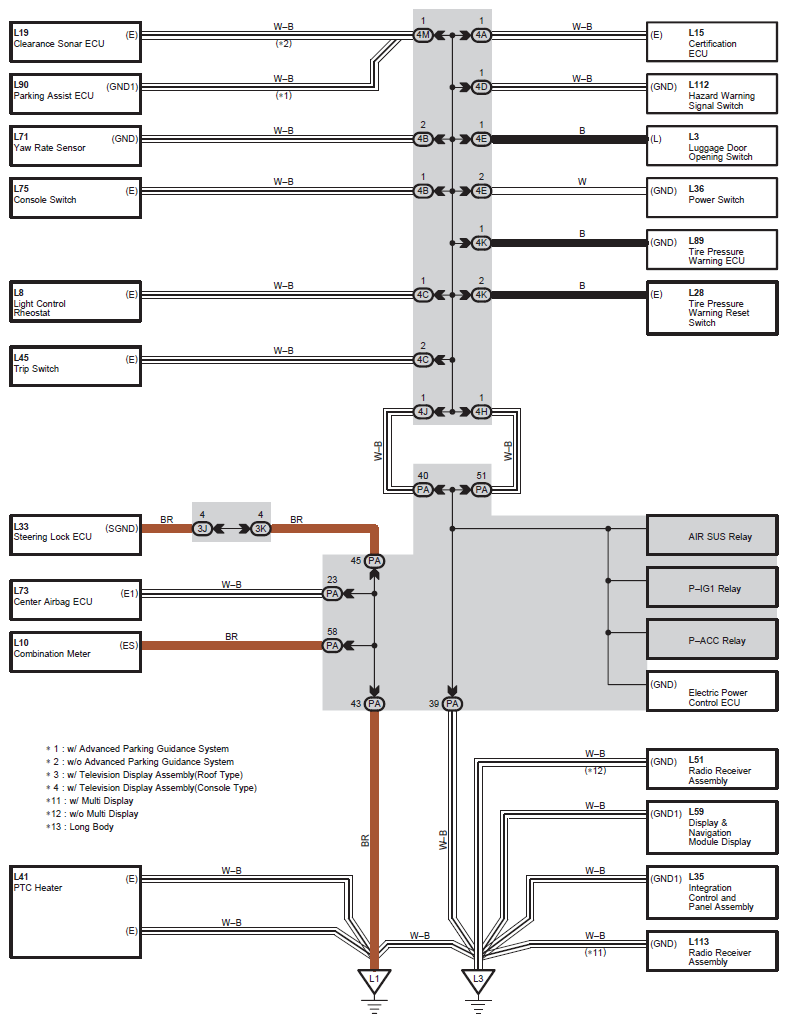

Fig 7: Ground Point - Wiring Diagram (7 Of 10)

G07565272

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

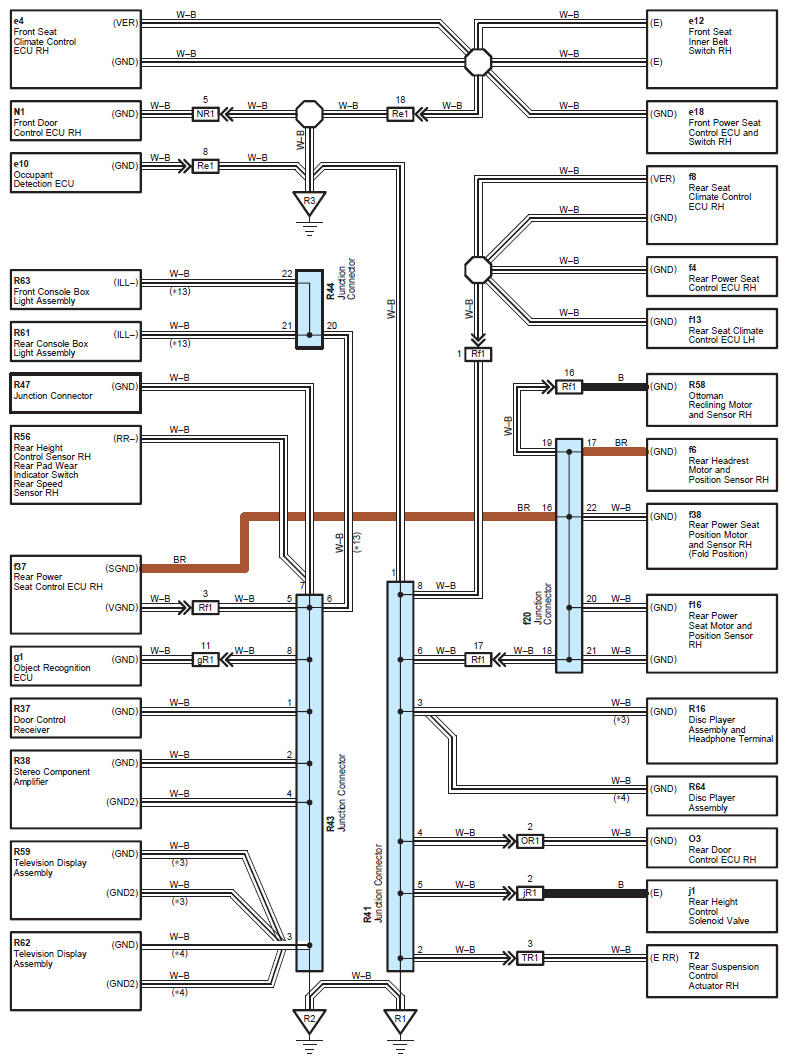

Fig 8: Ground Point - Wiring Diagram (8 Of 10)

G07565273

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

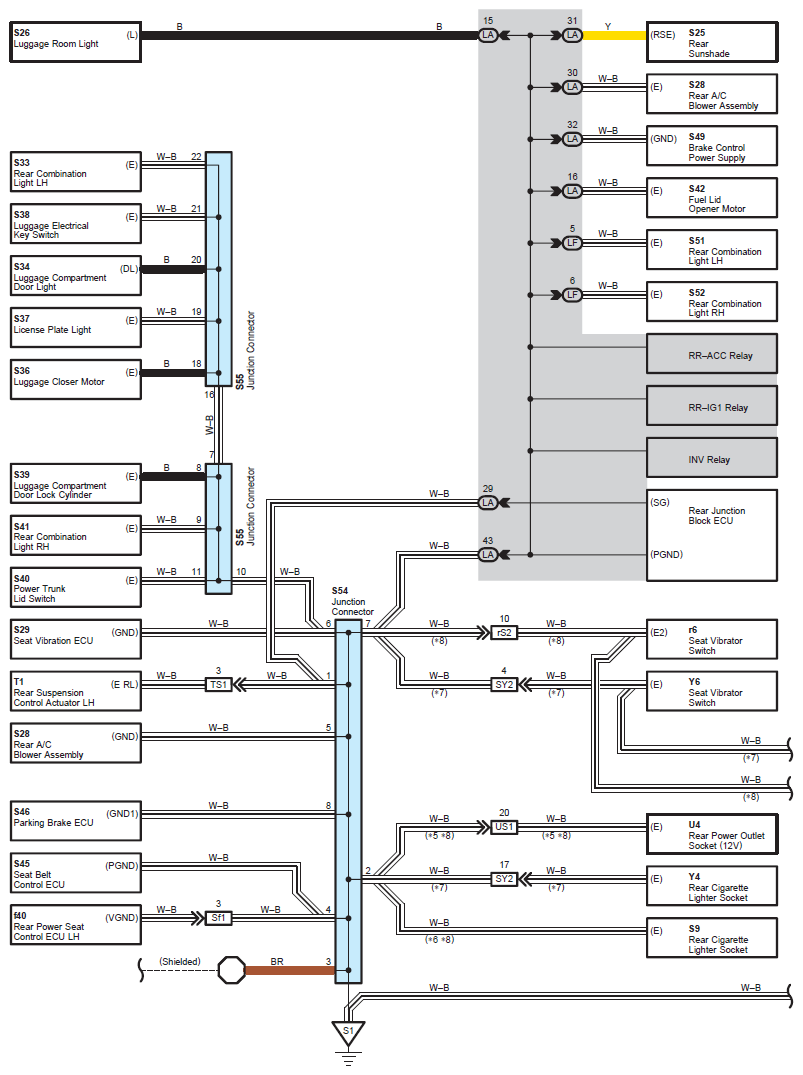

Fig 9: Ground Point - Wiring Diagram (9 Of 10)

G07565274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

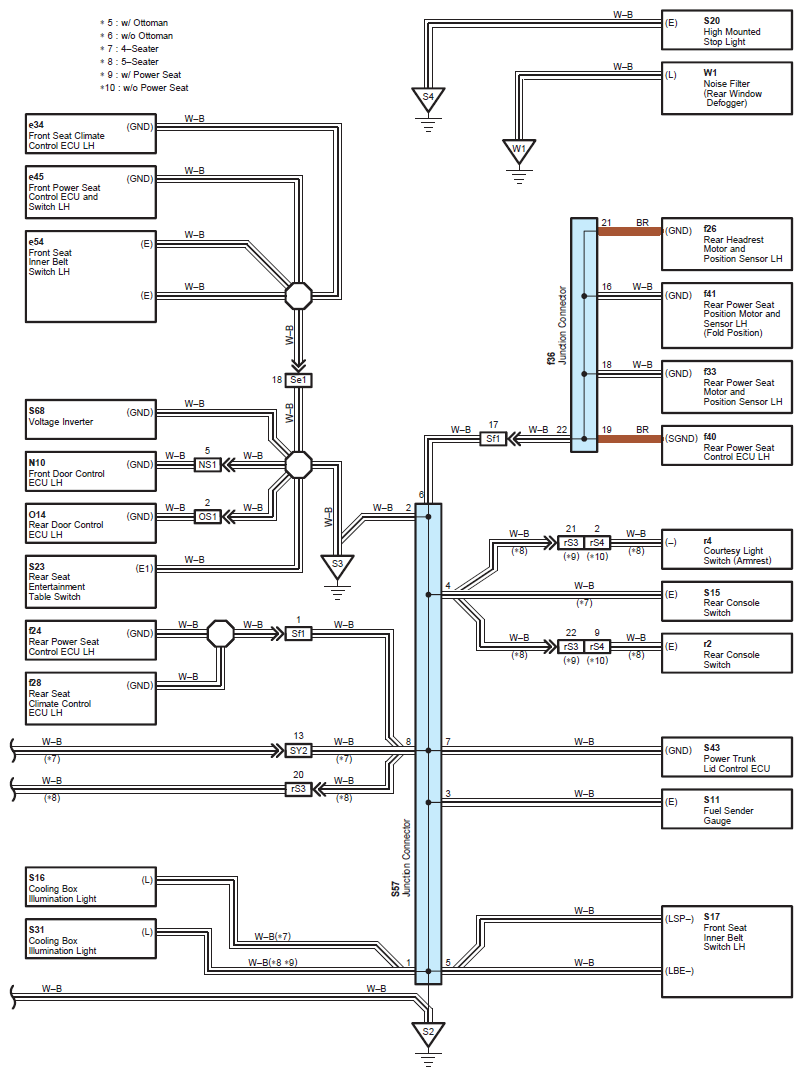

Fig 10: Ground Point - Wiring Diagram (10 Of 10)

G07565275

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
