Power Shoulder Belt Anchorage: Notes

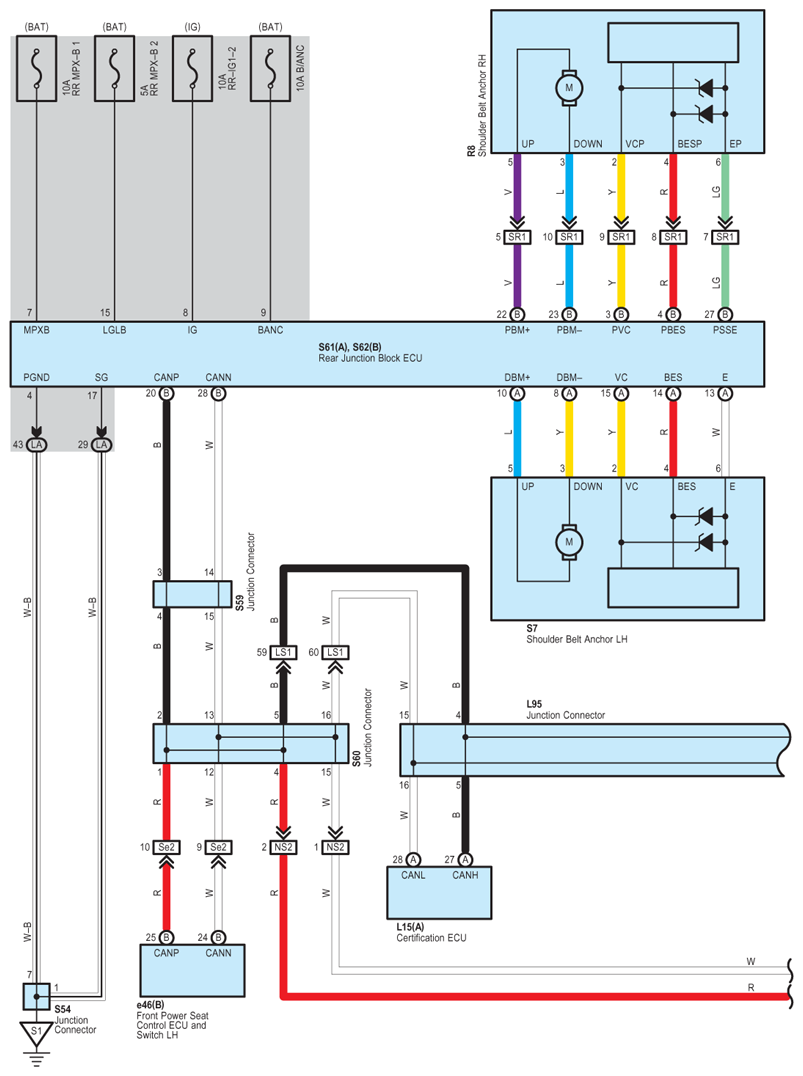

Fig 1: Power Shoulder Belt Anchorage - Circuit Diagram (1 Of 5)
G07565146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

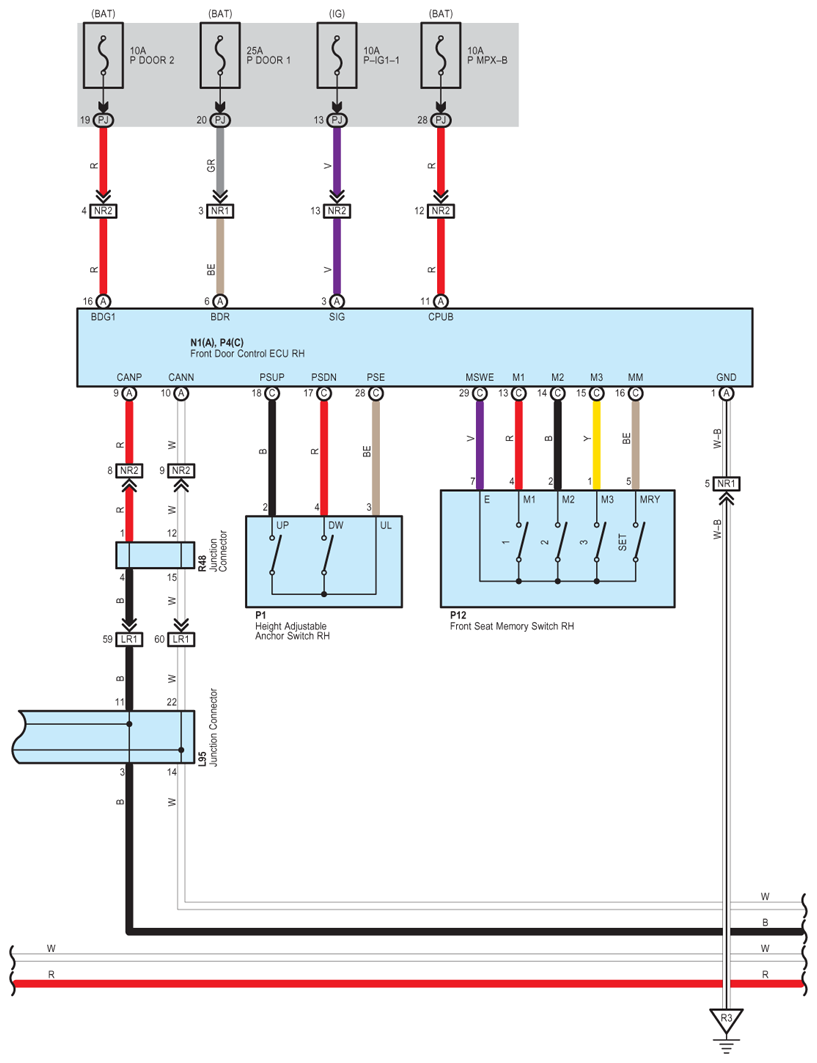

Fig 2: Power Shoulder Belt Anchorage - Circuit Diagram (2 Of 5)
G07565147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

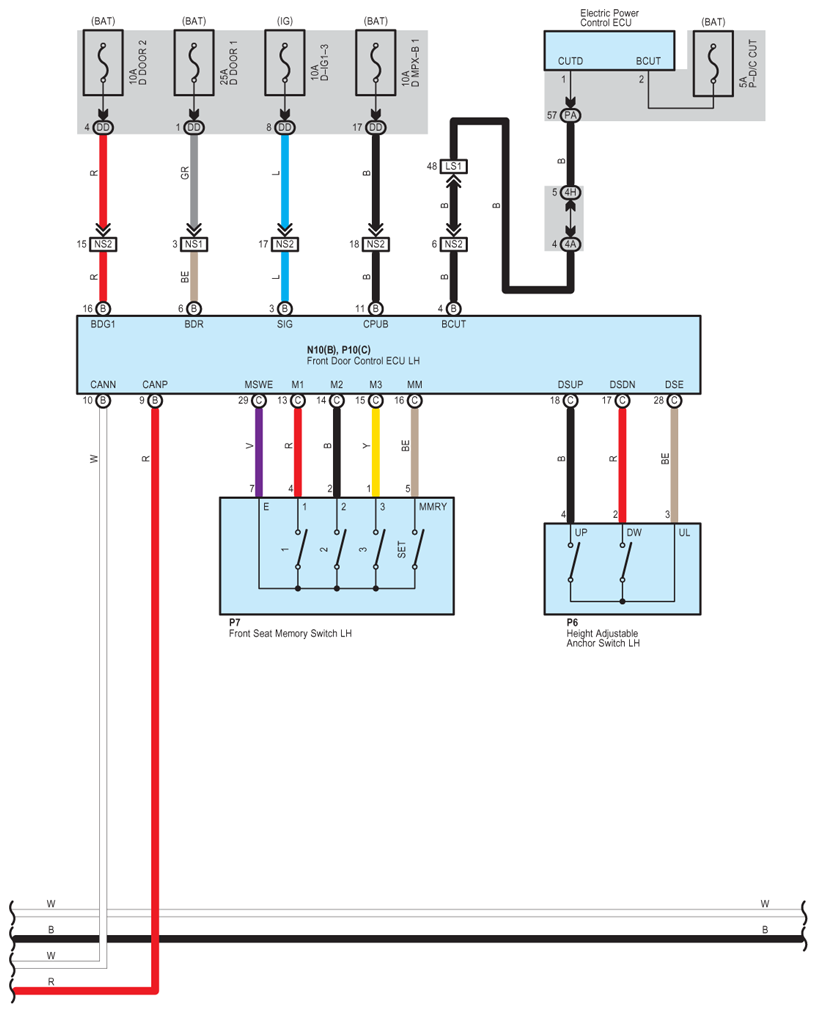

Fig 3: Power Shoulder Belt Anchorage - Circuit Diagram (3 Of 5)
G07565148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

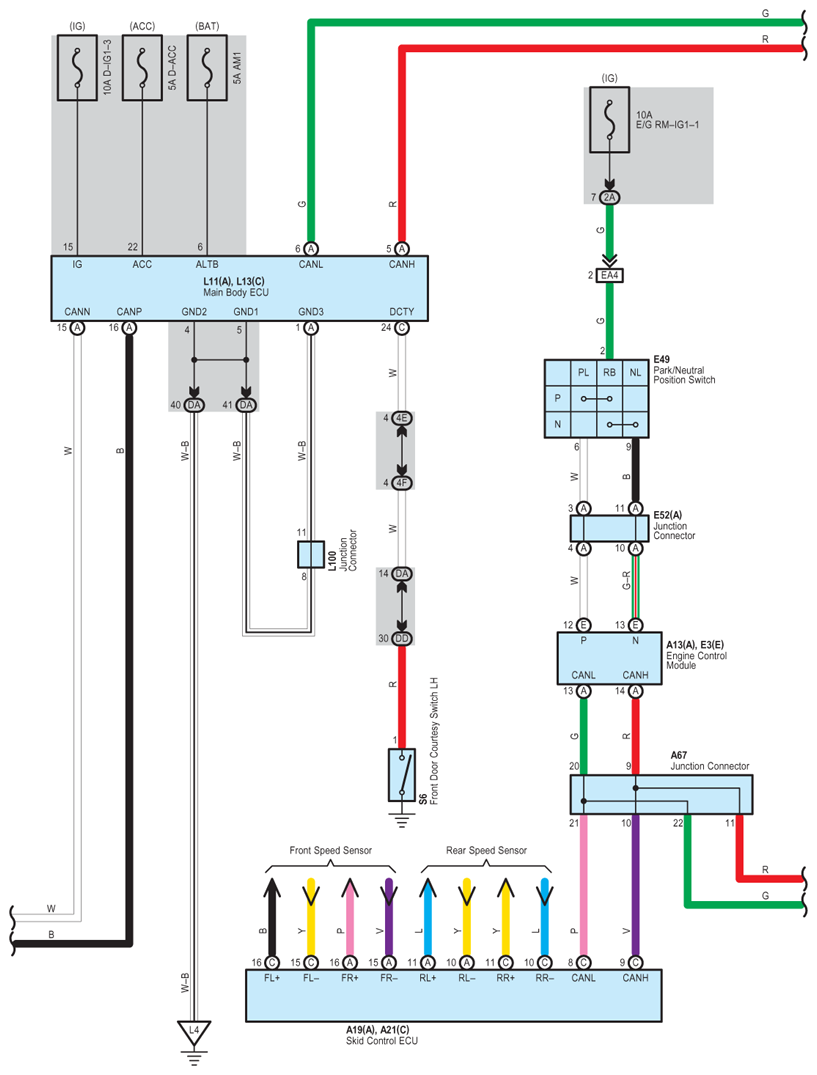

Fig 4: Power Shoulder Belt Anchorage - Circuit Diagram (4 Of 5)
G07565149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

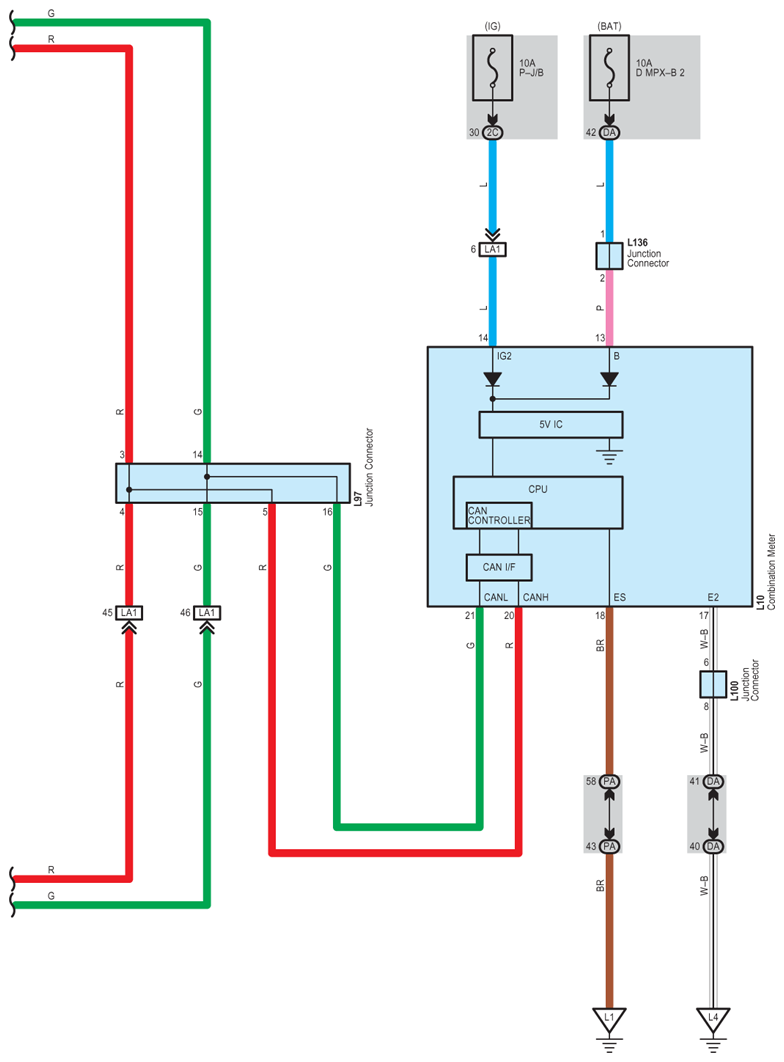

Fig 5: Power Shoulder Belt Anchorage - Circuit Diagram (5 Of 5)
G07565150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
