Fuel Pump Resistor: Installation: Installation

INSTALL FUEL PUMP RESISTOR
1. Install the resistor with the bolt.

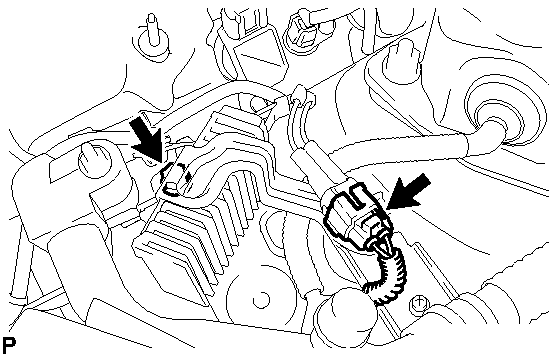

  Fig 1: Locating Fuel Pump Resistor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Connect the resistor connector.
INSTALL ENGINE ROOM SIDE COVER LH . Refer to INSTALLATION - Step 103
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL COWL TOP VENTILATOR LOUVER RH . Refer to INSTALLATION - Step 11
PERFORM INITIALIZATION
1. Perform initialization. Refer to INITIALIZATION .
  NOTE:
  Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
