Fuel Pressure Regulator: Reassembly: Reassembly

INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
1. Apply a light coat of gasoline to 2 new O-rings, and install them onto the fuel pressure regulator.

  Fig 1: Identifying Light Coat Of Gasoline To O-Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the fuel pressure regulator to the fuel filter.

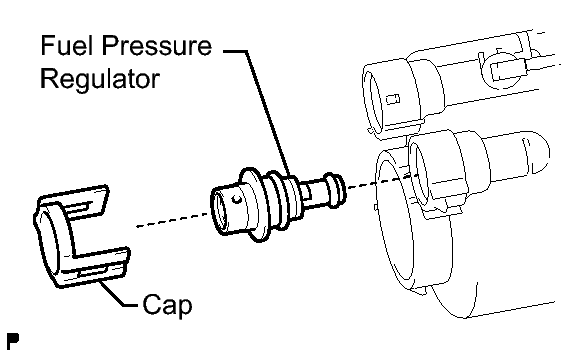

  Fig 2: Identifying Fuel Pressure Regulator And Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 2 claws of the fuel filter and install the cap.
  NOTE:
  - Make sure the O-rings are not cut or pinched during the installation.
  - Attach the claws securely.
INSTALL JET PUMP
1. Apply gasoline to a new O-ring and install it to the jet pump.

  Fig 3: Identifying Jet Pump O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the jet pump to the sub-tank as shown in the illustration.

  Fig 4: Identifying Jet Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL FILTER
1. Install the fuel filter to the sub-tank and attach the 2 claws.

  Fig 5: Locating Fuel Filter And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SUCTION PLATE SUB-ASSEMBLY
1. Install the spring to the fuel suction plate shaft.
2. Install the fuel suction plate to the sub-tank.
3. Install a new E-ring.

  Fig 6: Identifying E-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the fuel pump connector to the fuel suction plate.

  Fig 7: Locating Fuel Pump Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SENDER GAUGE ASSEMBLY
1. Set the fuel sender gauge to the fuel sub-tank. Then slide the sender gauge downward to install it.

  Fig 8: Connecting Fuel Sender Gauge Connector To Fuel Suction Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the fuel sender gauge connector to the fuel suction plate.
  NOTE:
  Do not touch the sender plate's resistance plate area or the contact area.
