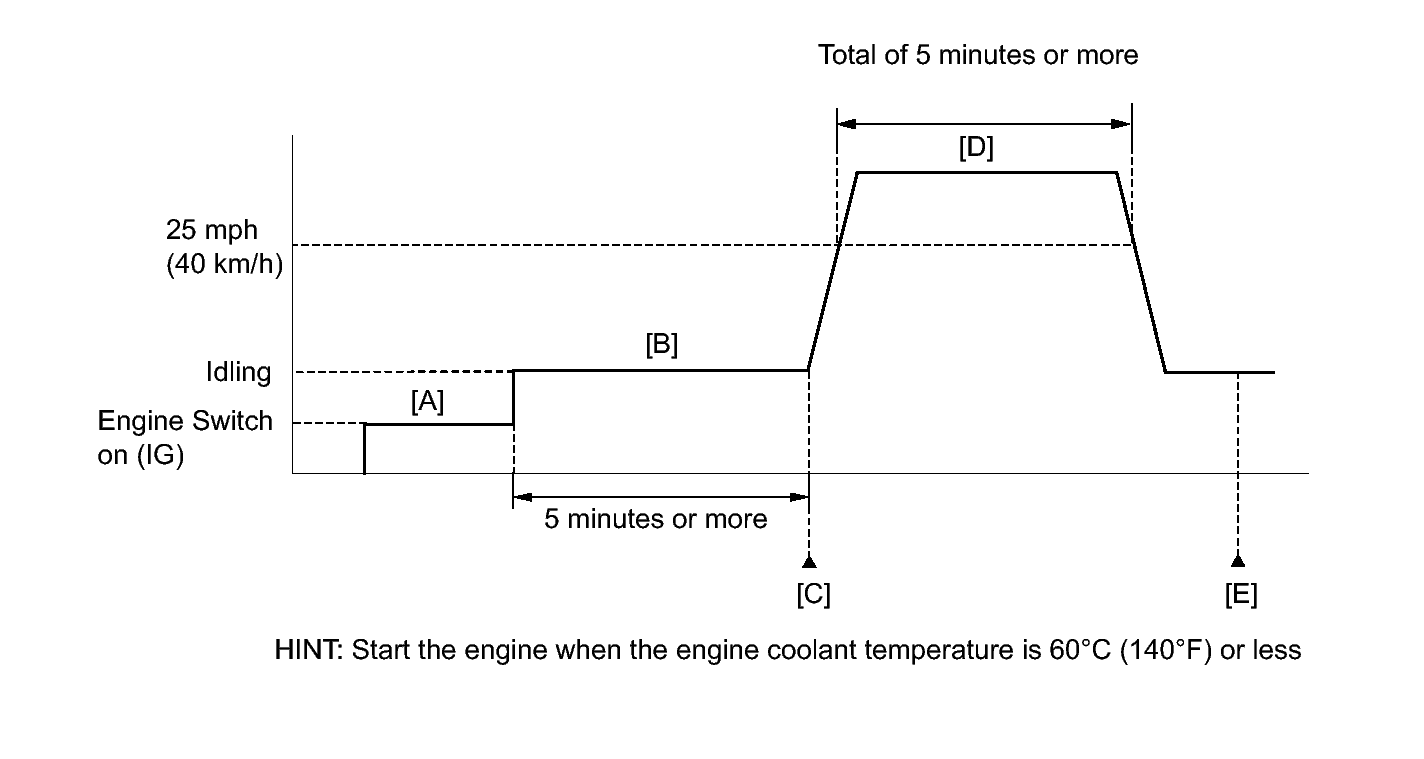

Confirmation Driving Pattern
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG) and turn the Techstream on.
- Enter the following menu items: Powertrain / Engine / Data List / Coolant Temp.
- Check that the coolant temperature is 60°C (140°F) or less.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to DTC CHECK / CLEAR .
- Turn the engine switch off and wait for at least 30 seconds.
- Turn the engine switch on (IG) and turn the Techstream on [A].
- Start the engine and idle it for 5 minutes or more [B].
HINT:
If the engine coolant temperature does not change by 5°C (9°F) or more, the engine coolant temperature sensor is malfunctioning. It is not necessary to continue this procedure.
- Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
- Read the pending DTCs [C].
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
- Enter the following menus: Powertrain / Engine / Utility / All Readiness.
- Input the DTC: P0116.
- Check the DTC judgment result.
Techstream Display Description NORMAL - DTC judgment completed
- System normal
ABNORMAL - DTC judgment completed
- System abnormal
INCOMPLETE - DTC judgment not completed
- Perform driving pattern after confirming DTC enabling conditions
UNKNOWN - Unable to perform DTC judgment
- Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
HINT:
If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [D] and [E].
- Drive the vehicle at 25 mph (40 km/h) or more for a total of 5 minutes or more [D].WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
In the event of the driving pattern being interrupted (possibly due to factors such as traffic conditions), the driving pattern can be resumed.
- Check the DTC judgment result again [E].
HINT:
If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [D] and [E] again.
- If no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to DTC CHECK / CLEAR
.
HINT:
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
