System Diagram

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

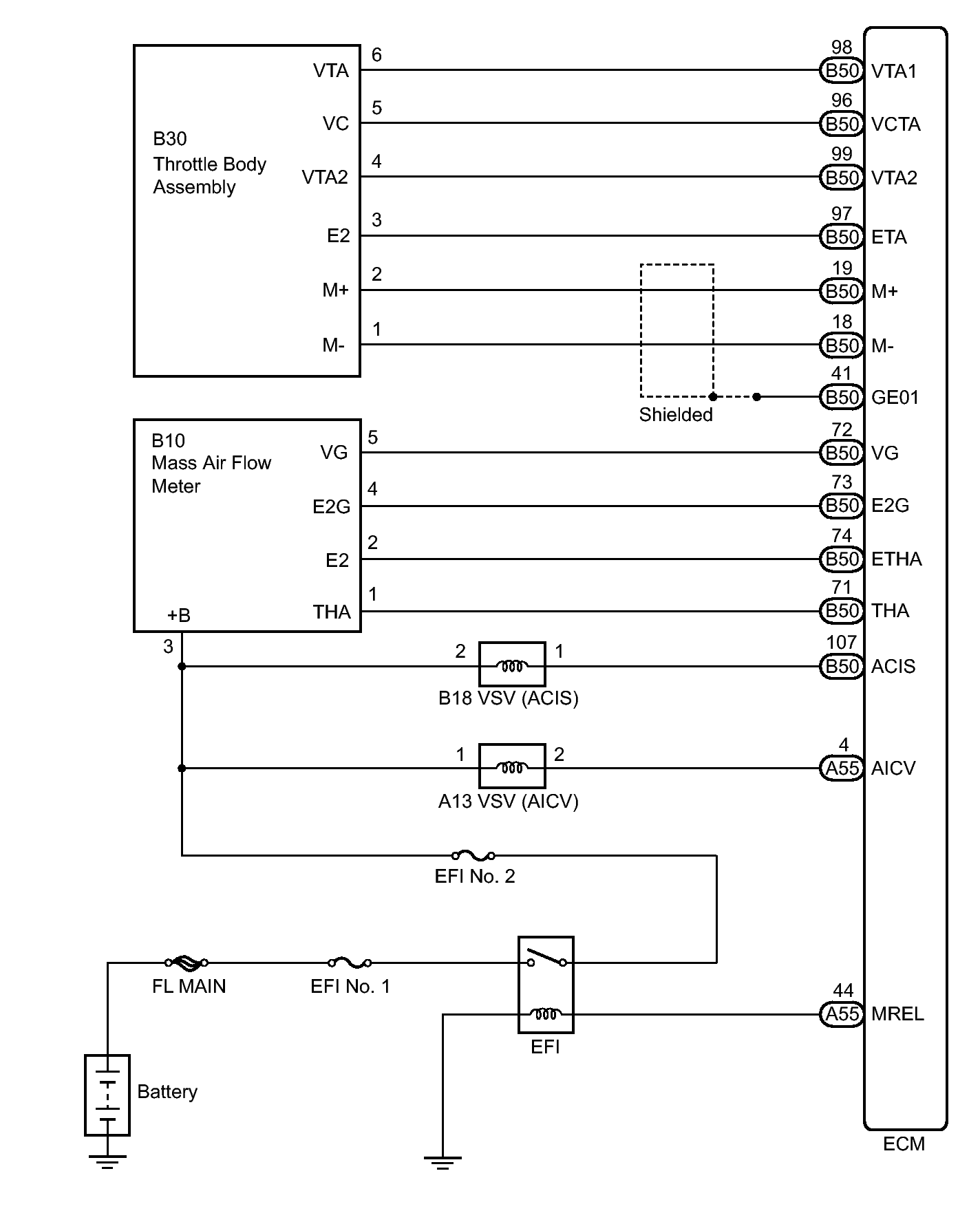

Fig 1: Identifying Intake System Circuit Diagram
GTY303267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
