System Diagram

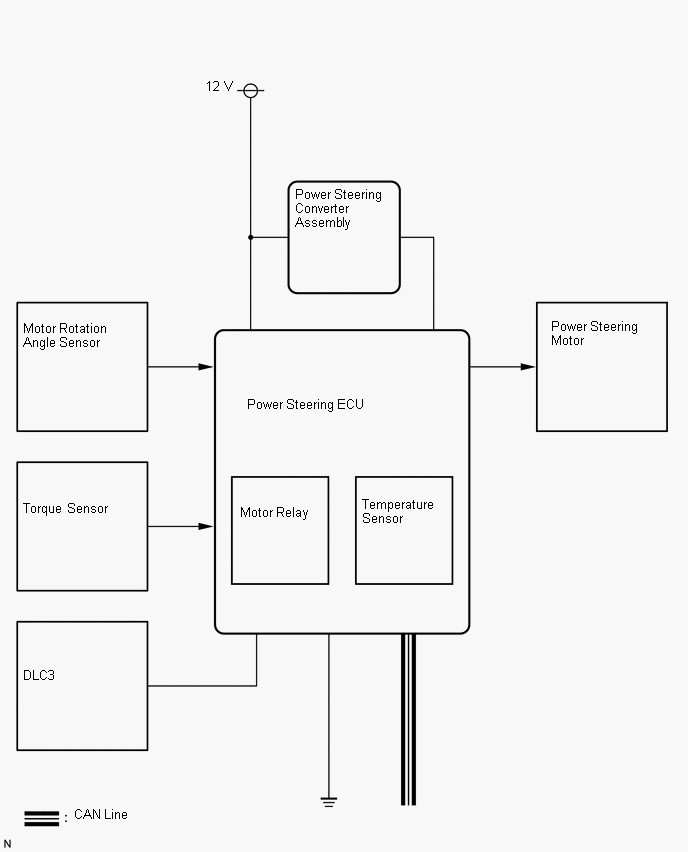

Fig 1: Identifying Power Steering - System Diagram (1 Of 3)
GTY352938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

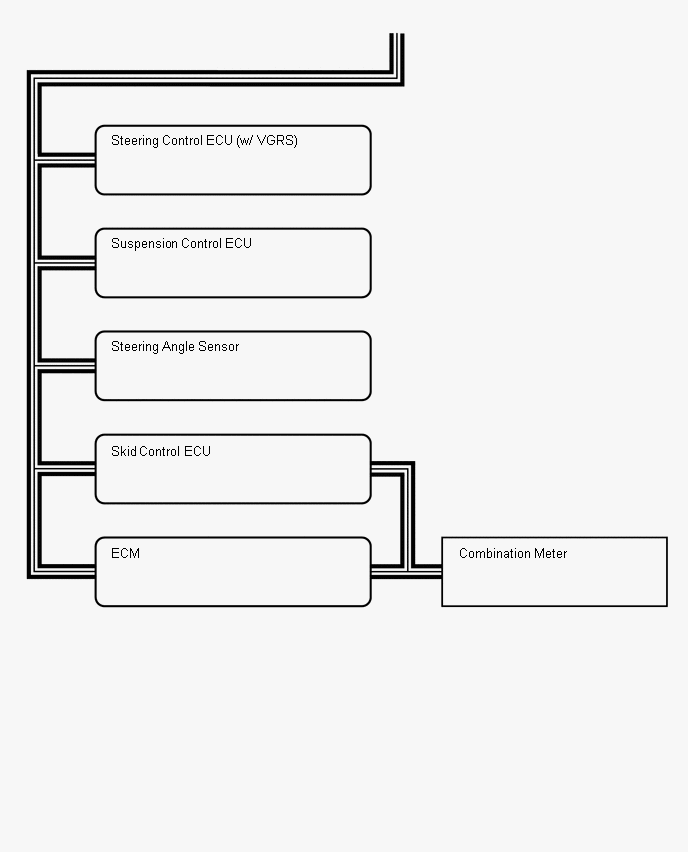

Fig 2: Identifying Power Steering - System Diagram (2 Of 3)
GTY347735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

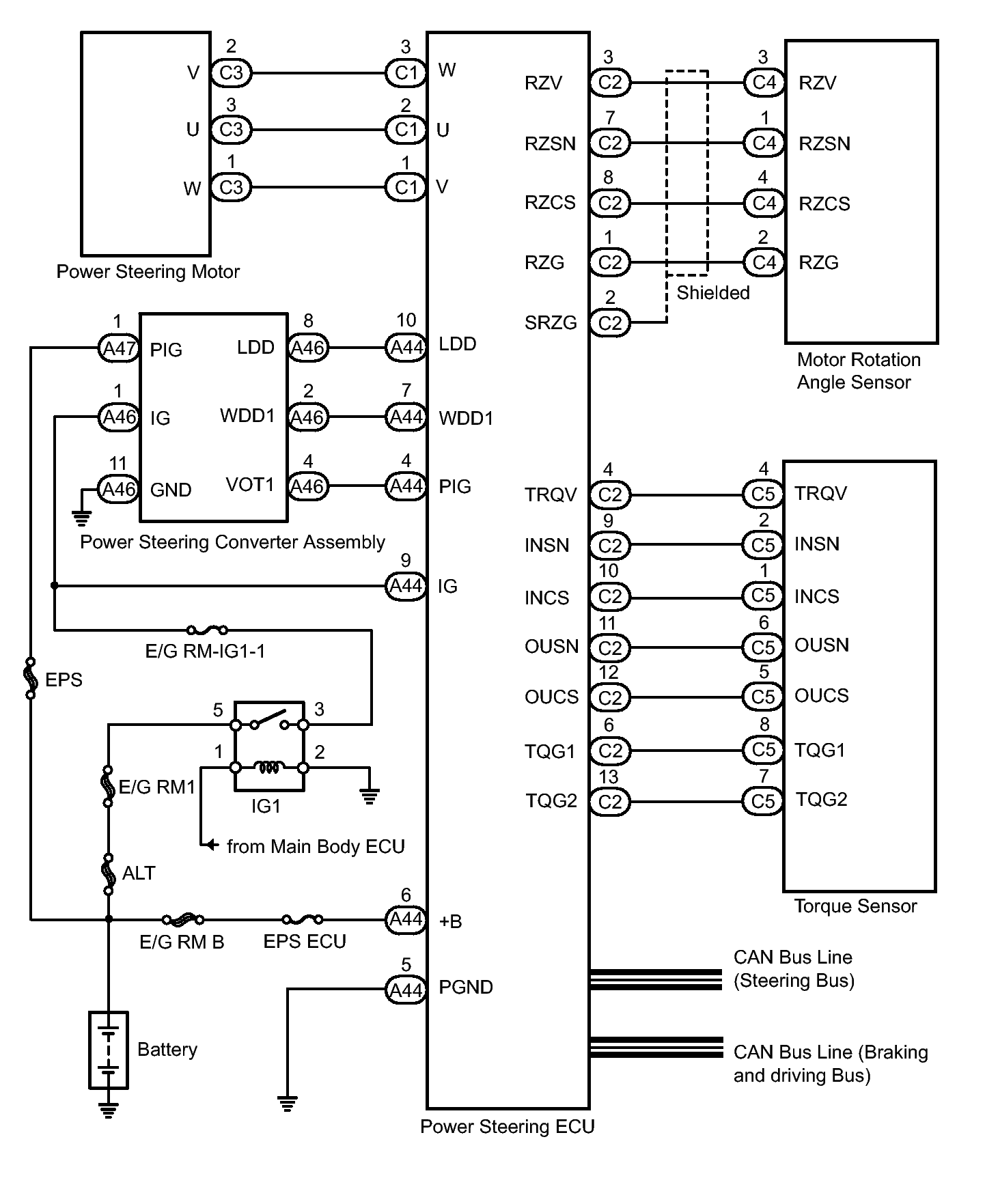

Fig 3: Identifying Power Steering - System Diagram (3 Of 3)
GTY347467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
