Steering Wheel: Components: Illustration

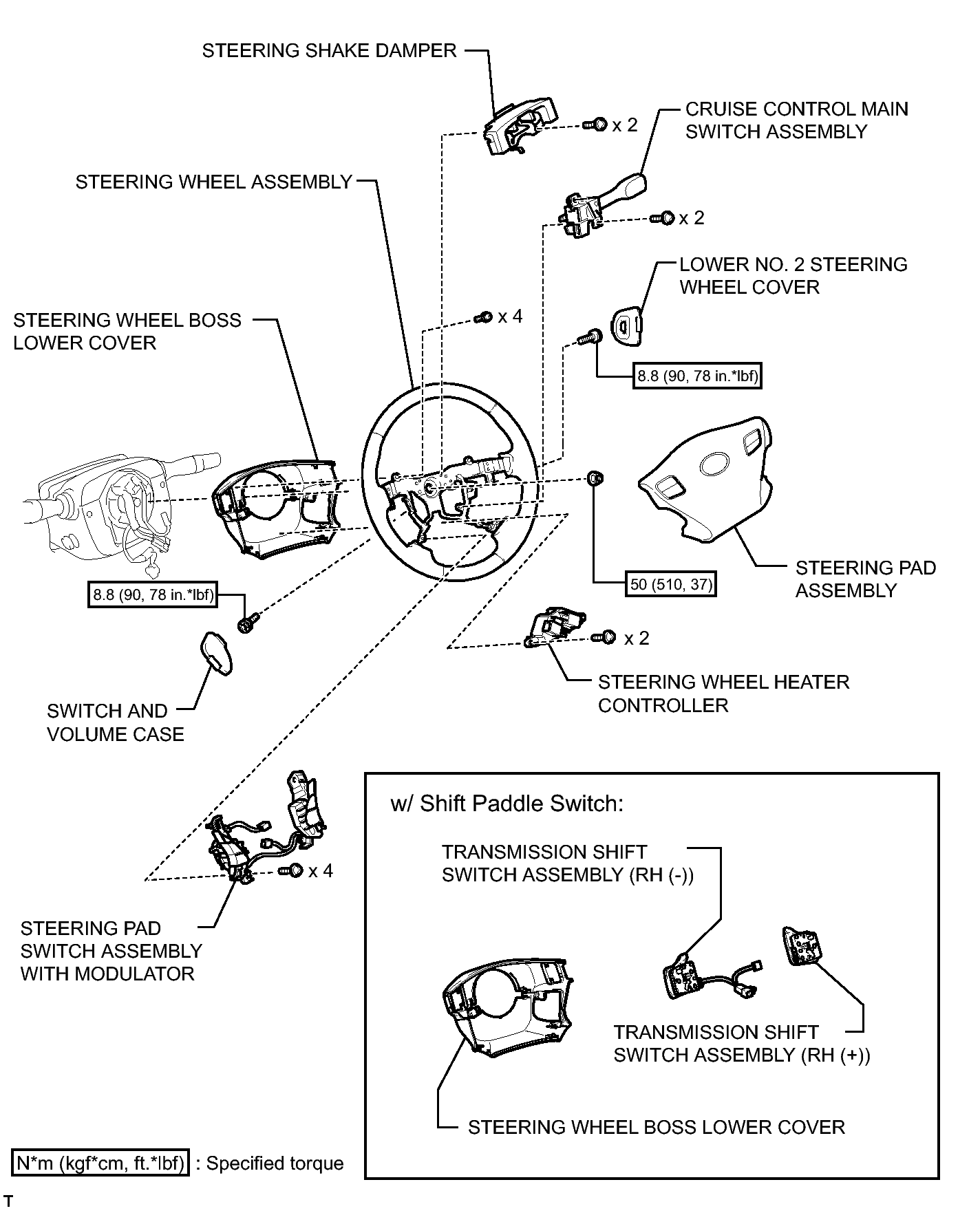

Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications
GTY254300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
