Steering Wheel: Installation: Installation

INSTALL STEERING WHEEL ASSEMBLY
1. Align the matchmarks on the steering wheel assembly and steering main shaft assembly.

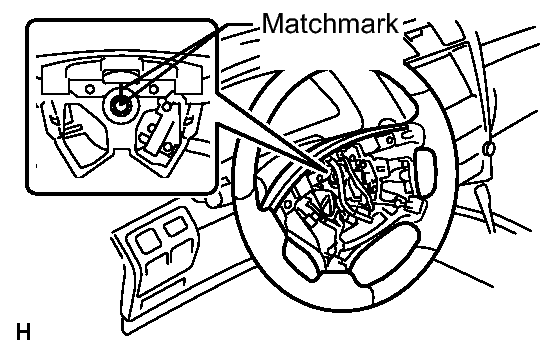

  Fig 1: Identifying Matchmarks On Steering Wheel Assembly And Steering Main Shaft Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the steering wheel assembly set nut.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
INSTALL STEERING PAD ASSEMBLY
1. Support the steering pad with one hand as shown in the illustration.

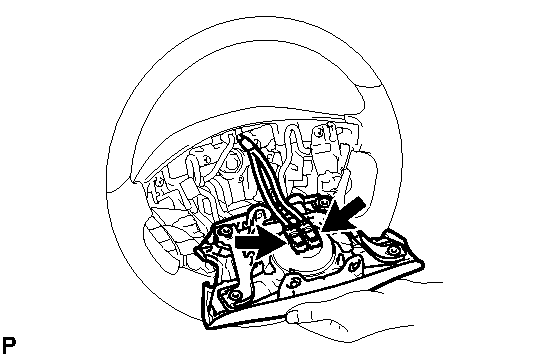

  Fig 2: Locating Steering Pad Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 connectors to the steering pad.
  NOTE:
  When handling the airbag connector, take care not to damage the airbag wire harness.
3. Connect the horn connector.
4. Confirm that the circumference groove of the "TORX" screw fits in the screw case, and place the steering pad onto the steering wheel assembly.
5. Using a T30 "TORX" socket wrench, tighten the 2 "TORX" screws.
  Torque: 8.8 N*m (90 kgf*cm, 78 in.*lbf)
INSTALL NO. 2 STEERING WHEEL COVER LOWER
1. Attach the 2 claws to install the cover.

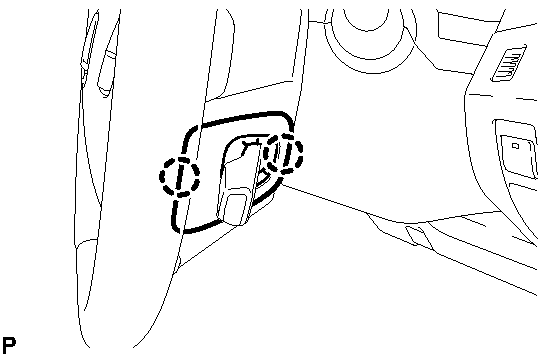

  Fig 3: Identifying No. 2 Steering Wheel Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SWITCH AND VOLUME CASE
1. Attach the claw to install the switch and volume case.

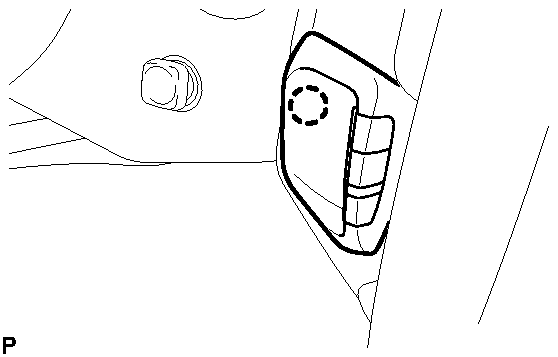

  Fig 4: Identifying Switch And Volume Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL COWL TOP VENTILATOR LOUVER RH . Refer to INSTALLATION - Step 11
CHECK SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
PERFORM INITIALIZATION
Refer to INITIALIZATION

NOTE:
Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
