Steering Wheel: Reassembly: Reassembly

  1. INSTALL TRANSMISSION SHIFT SWITCH ASSEMBLY  . Refer to INSTALLATION - Step 1
  2. INSTALL STEERING WHEEL BOSS LOWER COVER
    1. Attach the 4 claws to install the lower steering wheel cover and install the 2 screws.
      Fig 1: Removing The 2 Screws
      GTY270387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the shift switch with the 2 screws.
  3. INSTALL STEERING WHEEL HEATER CONTROLLER ASSEMBLY
    1. Install the heater controller with the 2 screws and connect the connector.

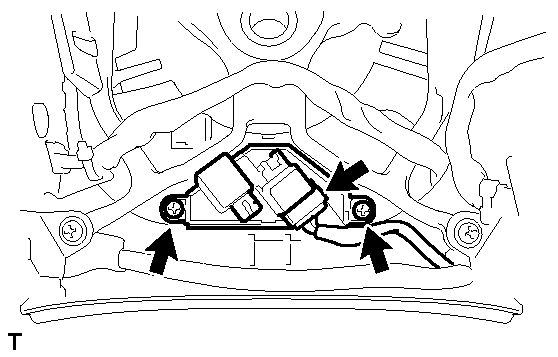

      Fig 2: Removing The 2 Screws And Heater Control
      GTY270578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL CRUISE CONTROL MAIN SWITCH ASSEMBLY
    1. Install the cruise control main switch with the 2 screws and connect the connector.

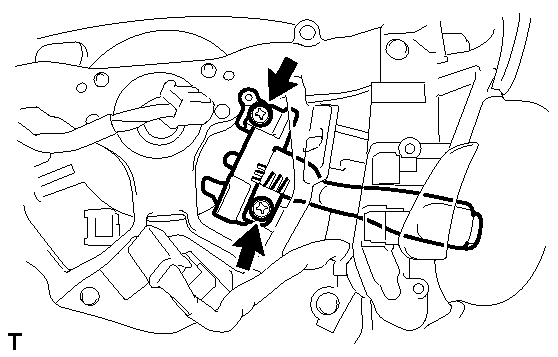

      Fig 3: Locating Cruise Control Main Switch Screws
      GTY131549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL STEERING PAD SWITCH ASSEMBLY WITH MODULATOR
    1. Install the steering pad switch with the 4 screws and connect the 2 connectors.

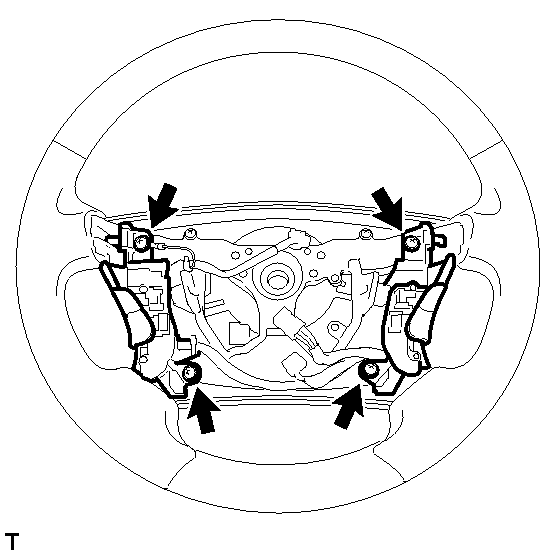

      Fig 4: Locating Steering Pad Switch Screws
      GTY111211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL STEERING SHAKE DAMPER
    1. Install the shake damper with the 2 screws.

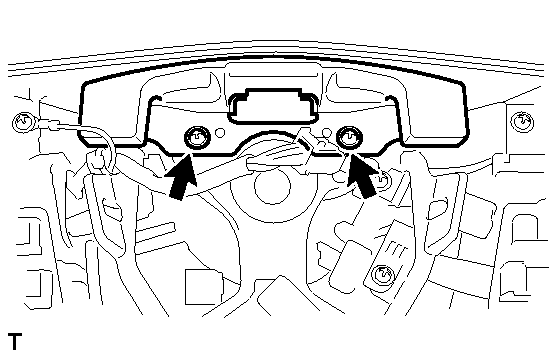

      Fig 5: Locating Shake Damper Screws
      GTY131678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
