Charging System (Service Information): Generator: Installation: Installation

INSTALL GENERATOR

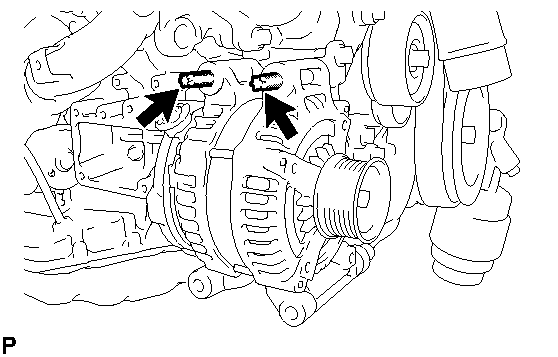

Fig 1: Locating Stud Bolts And Generator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using an E8 "TORX" socket wrench, set the generator with the 2 stud bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Install the generator with the 2 bolts and 2 nuts.

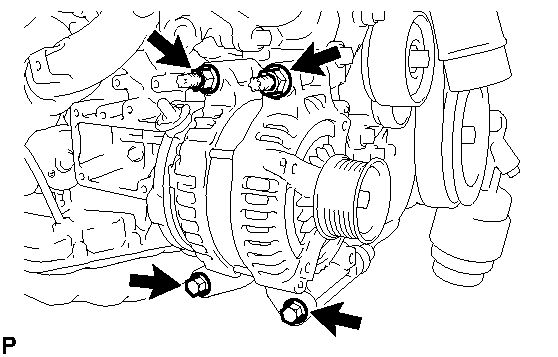

  Fig 2: Locating Generator Mounting Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)
3. Connect the generator connector.

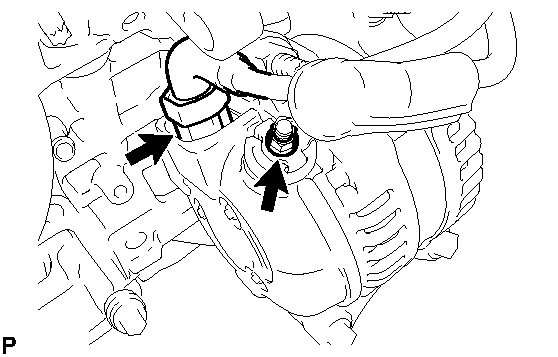

  Fig 3: Locating Generator +B Terminal Connector And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the harness to the +B terminal with the nut.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
INSTALL V-RIBBED BELT . Refer to INSTALLATION - Step 1
INSTALL INTAKE AIR CONNECTOR PIPE . Refer to INSTALLATION - Step 2
INSTALL NO. 2 ENGINE UNDER COVER . Refer to INSTALLATION - Step 96
INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER . Refer to INSTALLATION - Step 79
INSTALL NO. 1 ENGINE UNDER COVER . Refer to REPLACEMENT - Step 11
INSTALL NO. 1 AIR CLEANER INLET . Refer to INSTALLATION - Step 3
INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 7
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 8
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL COWL TOP VENTILATOR LOUVER RH

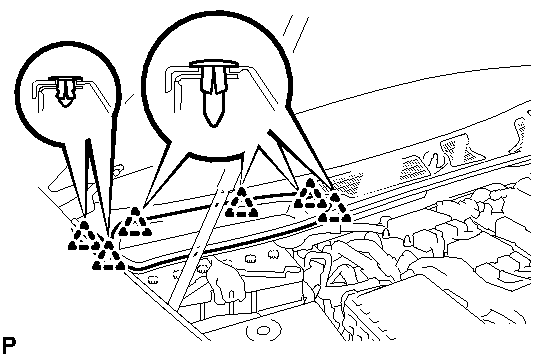

Fig 4: Identifying Cowl Top Ventilator Louver RH Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the 6 clips and cowl top ventilator louver RH.
  NOTE:
  If the cowl top ventilator louver RH is not properly installed, water may leak into the engine room and cause malfunctions. Therefore, make sure the cowl top ventilator louver RH is installed properly.
PERFORM INITIALIZATION
1. Perform initialization. Refer to INITIALIZATION .
  NOTE:
  Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
