Toe Control Link: Installation: Installation

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
A bolt without a torque specification is shown in the standard bolt chart. Refer to SPECIFIED TORQUE FOR STANDARD BOLTS .

TEMPORARILY INSTALL TOE CONTROL LINK SUB-ASSEMBLY LH

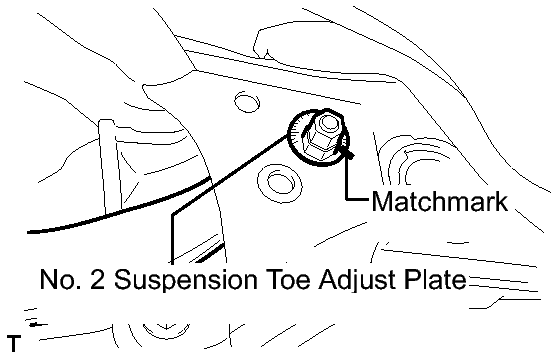

Fig 1: Aligning Matchmarks Of No. 2 Suspension Toe Adjust Plate And Suspension Member
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Insert the toe adjust cam from the front of the vehicle and connect the toe control link. Then temporarily install the No. 2 suspension toe adjust plate with the nut.
  NOTE:
  Align the matchmarks of the No. 2 suspension toe adjust plate and suspension member.
2. Temporarily install the toe control arm with a new nut to the axle carrier.
TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY LH

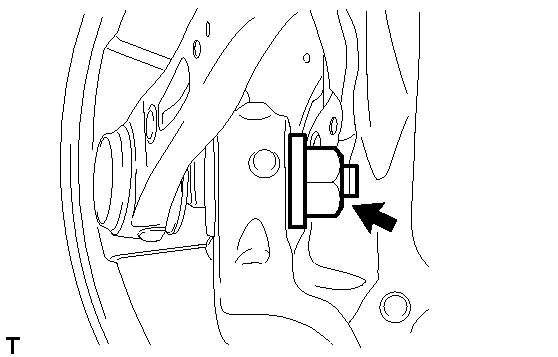

Fig 3: Locating Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

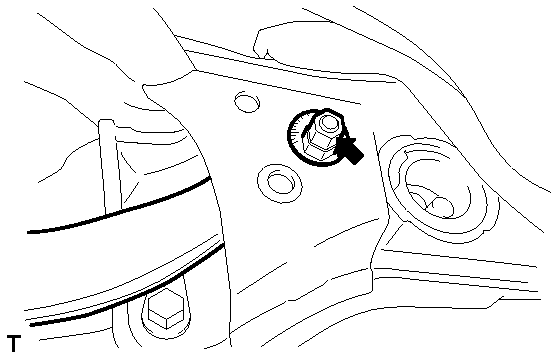

1. Tighten the nut.
  Torque: 60 N*m (612 kgf*cm, 44 ft.*lbf)
2. Tighten the nut.
  Torque: 118 N*m (1203 kgf*cm, 87 ft.*lbf)
INSTALL SKID CONTROL SENSOR WIRE . Refer to INSTALLATION - Step 2
INSTALL LOAD SENSING VALVE SENSOR BRACKET . Refer to INSTALLATION - Step 1
STABILIZE SUSPENSION Go to step 33
INSTALL REAR WHEEL
Torque: 140 N*m (1428 kgf*cm, 103 ft.*lbf)
CHECK SUSPENSION CONTROL SYSTEM
1. Refer to ADJUSTMENT and check the suspension control system.
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
1. Refer to ADJUSTMENT and inspect and adjust the rear wheel alignment.
CHECK SPEED SENSOR SIGNAL
1. Refer to TEST MODE PROCEDURE and check the speed sensor signal.
ADJUST HEADLIGHT ASSEMBLY
1. for LED headlight:
  Refer to ADJUSTMENT and adjust the headlight.
2. for HID headlight:
  Refer to ADJUSTMENT and adjust the headlight.
ADJUST OBJECT RECOGNITION CAMERA
1. Refer to ADJUSTMENT and adjust the object recognition camera.
