Power Window Master Switch: Inspection: Inspection

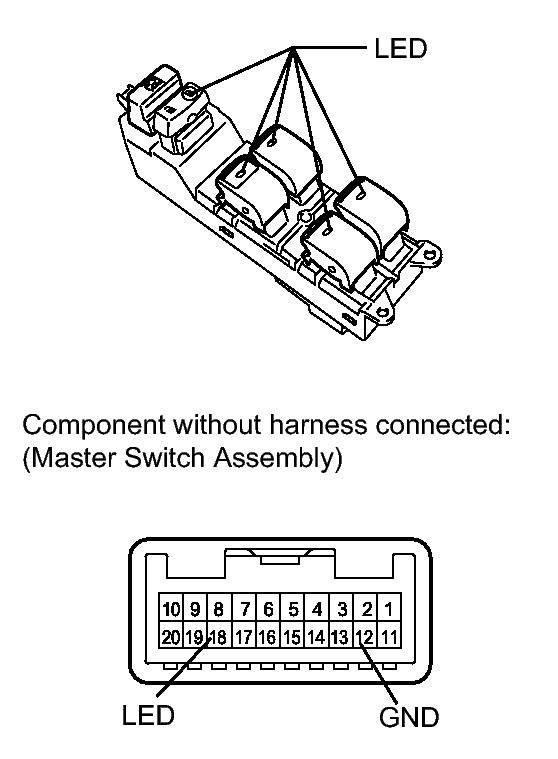

- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Check that the LED illuminates.
- Apply battery voltage to the power window regulator master switch and check that the LED illuminates.
OK
Measurement Condition Specified Condition Battery positive (+) → 18 (LED)
Battery negative (-) → 12 (GND)LED illuminates - If the result is not as specified, replace the power window regulator master switch assembly.
- Apply battery voltage to the power window regulator master switch and check that the LED illuminates.
- Check that the LED illuminates.
