Power Window Master Switch: Installation: Installation

INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
1. Install the power window regulator master switch with the 3 screws.

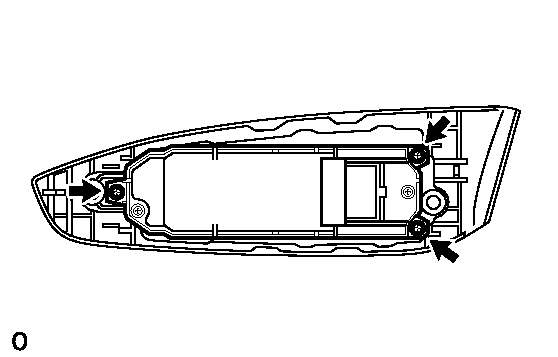

  Fig 1: Power Window Regulator Master Switch Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.

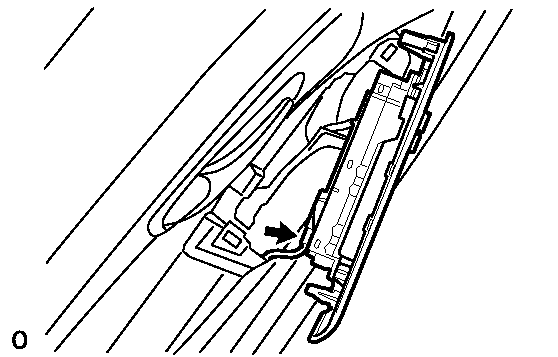

  Fig 2: Identifying Armrest Base Panel Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 2 clips to install the armrest base panel assembly.

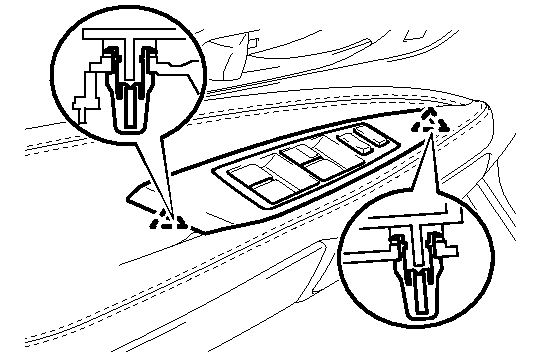

  Fig 3: Identifying Master Switch Assembly Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
