Power Window Master Switch: Removal: Removal

REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
1. Using a screwdriver, detach the 2 clips.

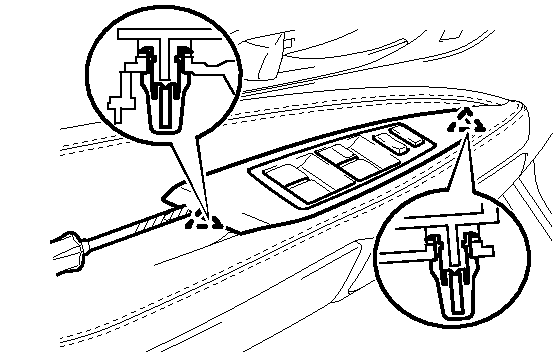

  Fig 1: Identifying Front Power Window Regulator Master Switch Clips LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
2. Disconnect the connector and remove the armrest base panel assembly.

  Fig 2: Identifying Armrest Base Panel Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 screws and power window regulator master switch.

  Fig 3: Power Window Regulator Master Switch Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
