Skid Control Ecu: Components: Illustration

Fig 1: Identifying Skid Control ECU Replacement Components (1 Of 3)
GTY279372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Skid Control ECU Replacement Components (2 Of 3)
GTY269152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

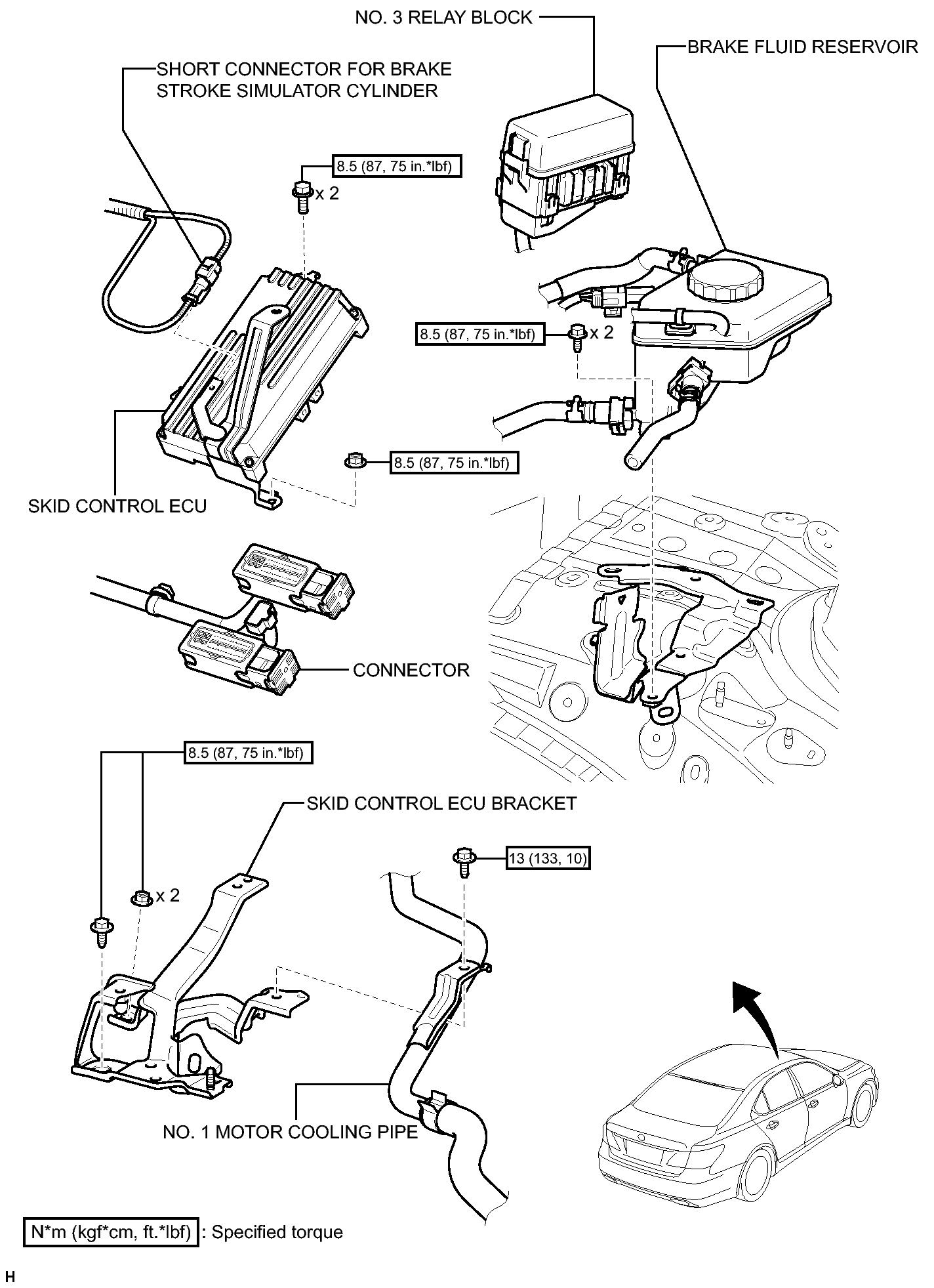

Fig 1: Identifying Skid Control ECU Replacement Components With Torque Specifications (3 Of 3)
GTY263446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
