Electric Parking Brake: Notes

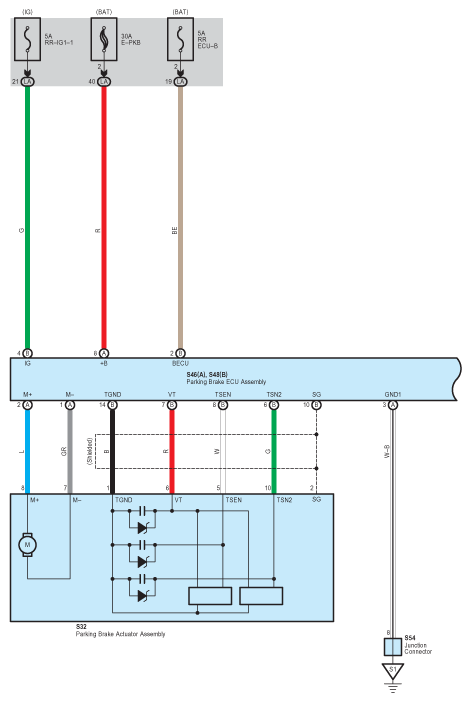

Fig 1: Electric Parking Brake - Circuit Diagram (1 Of 6)
G07566119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

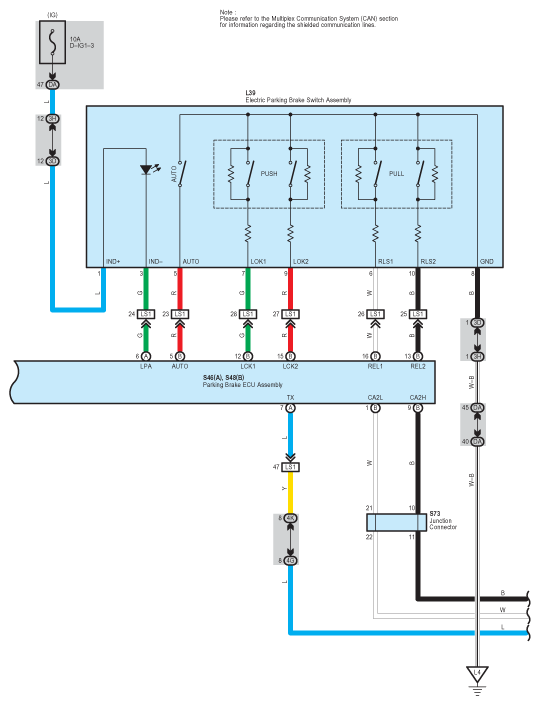

Fig 2: Electric Parking Brake - Circuit Diagram (2 Of 6)
G07566120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

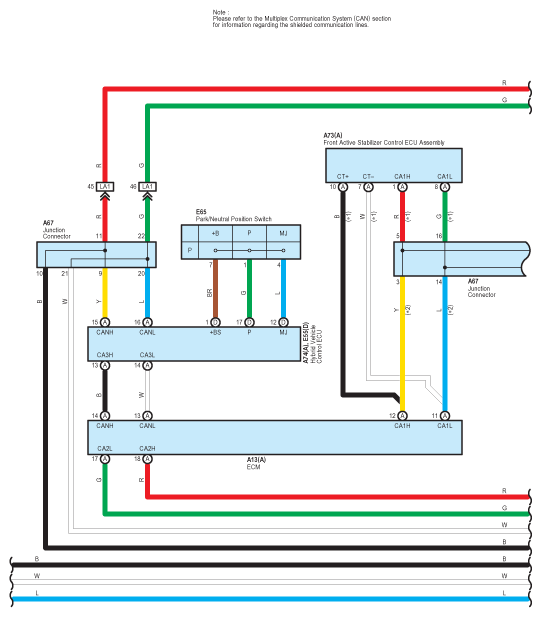

Fig 3: Electric Parking Brake - Circuit Diagram (3 Of 6)
G07566121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

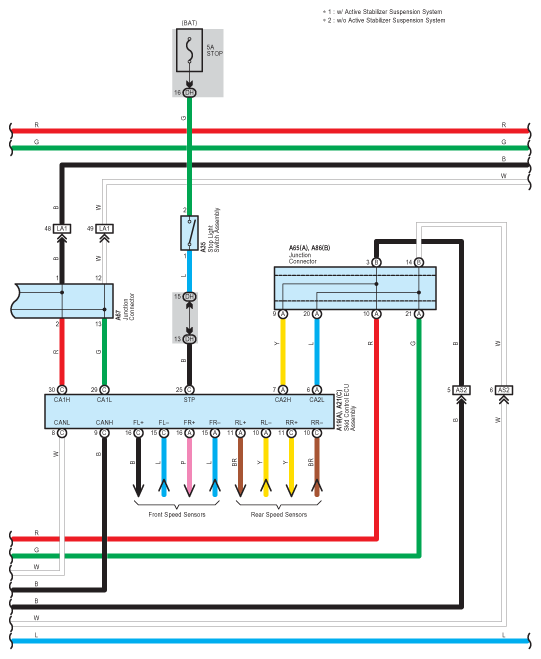

Fig 4: Electric Parking Brake - Circuit Diagram (4 Of 6)
G07566122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

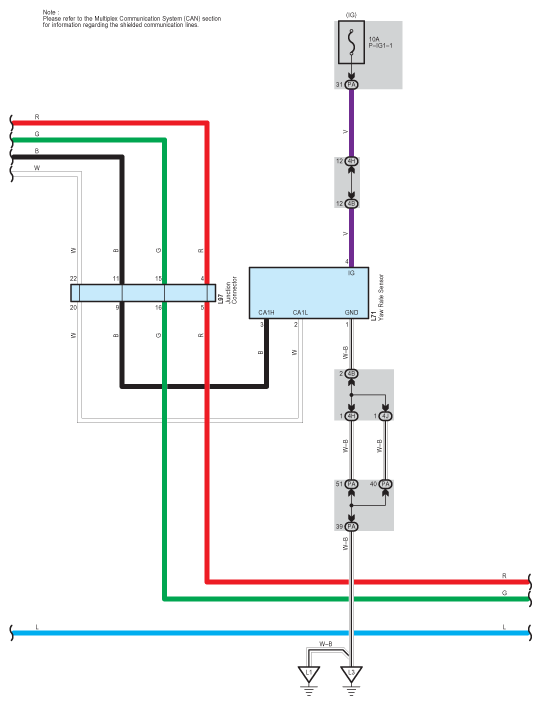

Fig 5: Electric Parking Brake - Circuit Diagram (5 Of 6)
G07566123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

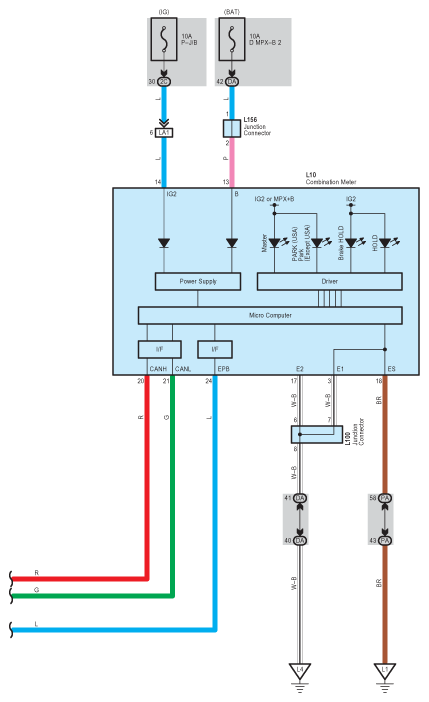

Fig 6: Electric Parking Brake - Circuit Diagram (6 Of 6)
G07566124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
