Power Shoulder Belt Anchorage: Notes

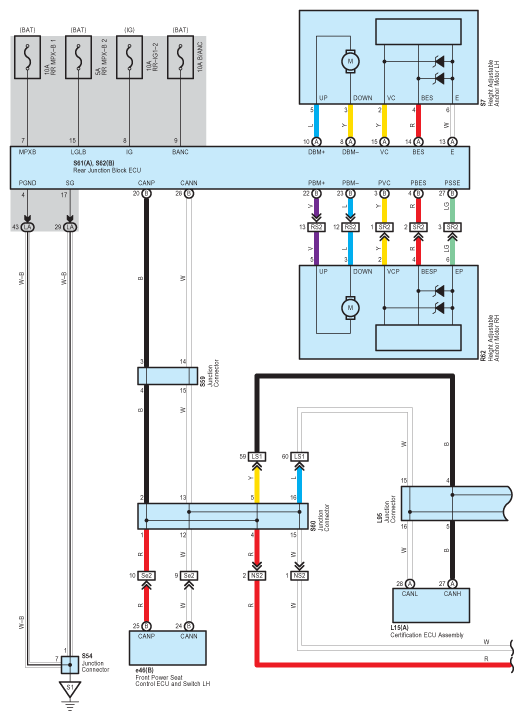

Fig 1: Power Shoulder Belt Anchorage - Circuit Diagram (1 Of 4)
G07566253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

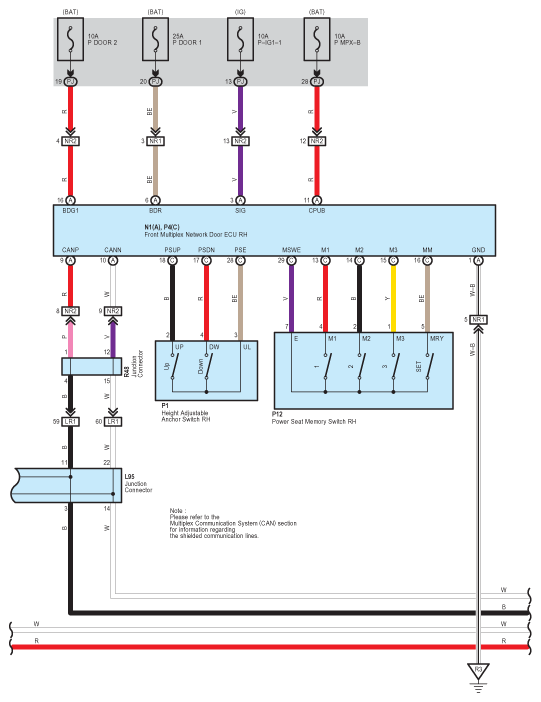

Fig 2: Power Shoulder Belt Anchorage - Circuit Diagram (2 Of 4)
G07566254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

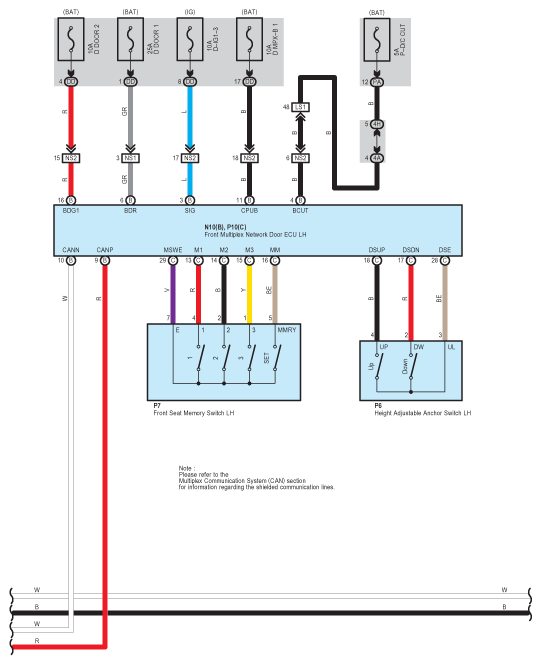

Fig 3: Power Shoulder Belt Anchorage - Circuit Diagram (3 Of 4)
G07566255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

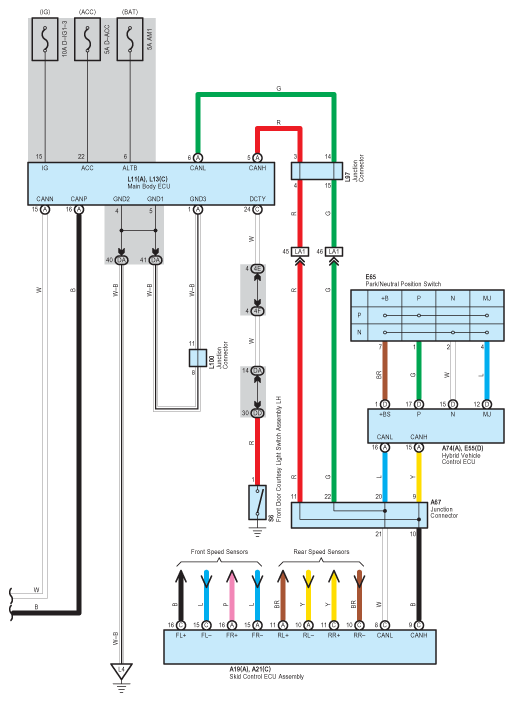

Fig 4: Power Shoulder Belt Anchorage - Circuit Diagram (4 Of 4)
G07566256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
