Power Trunk Opener and Closer: Notes

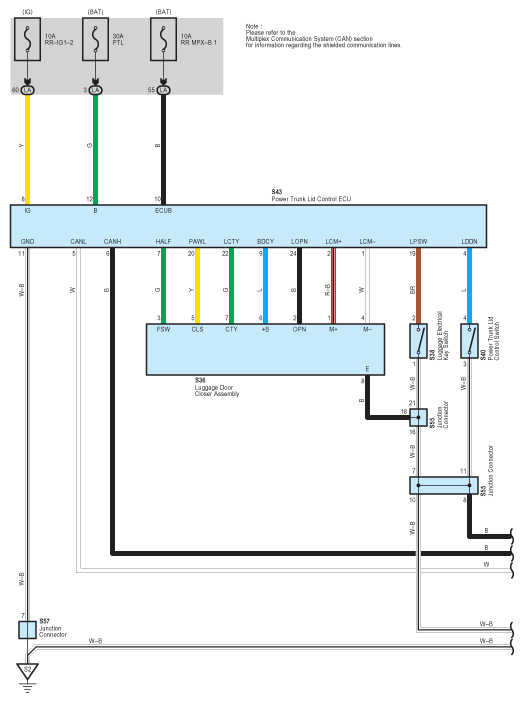

Fig 1: Power Trunk Opener And Closer - Circuit Diagram (1 Of 4)
G07566190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

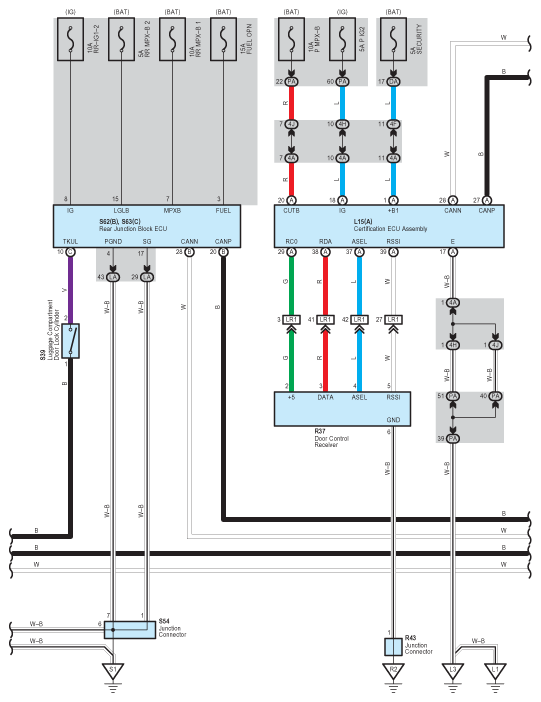

Fig 2: Power Trunk Opener And Closer - Circuit Diagram (2 Of 4)
G07566191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

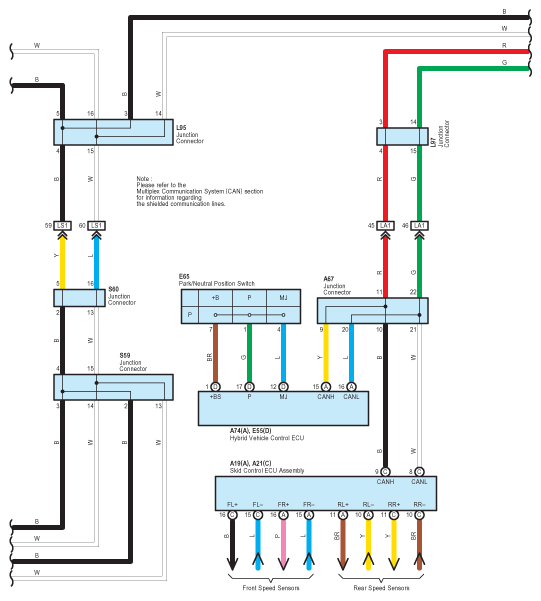

Fig 3: Power Trunk Opener And Closer - Circuit Diagram (3 Of 4)
G07566192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

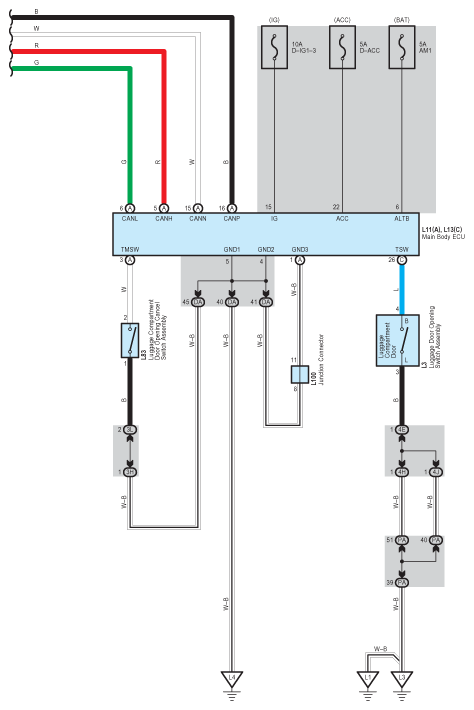

Fig 4: Power Trunk Opener And Closer - Circuit Diagram (4 Of 4)
G07566193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
