Rear Window Defogger and Mirror Heater: Notes

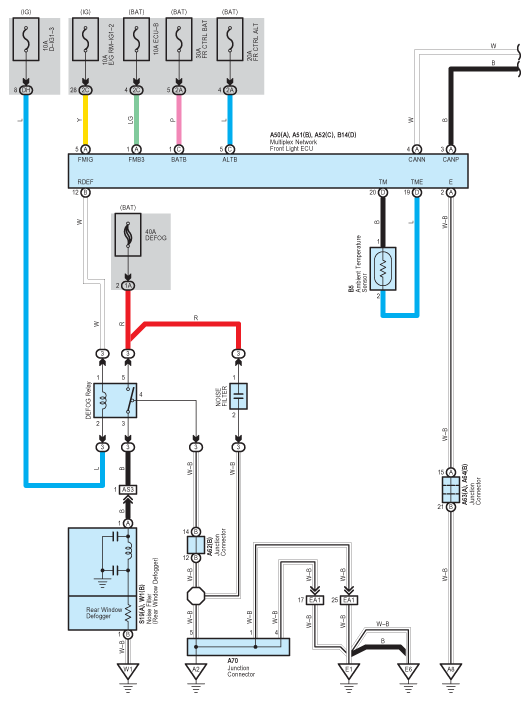

Fig 1: Rear Window Defogger And Mirror Heater - Circuit Diagram (1 Of 4)
G07566262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

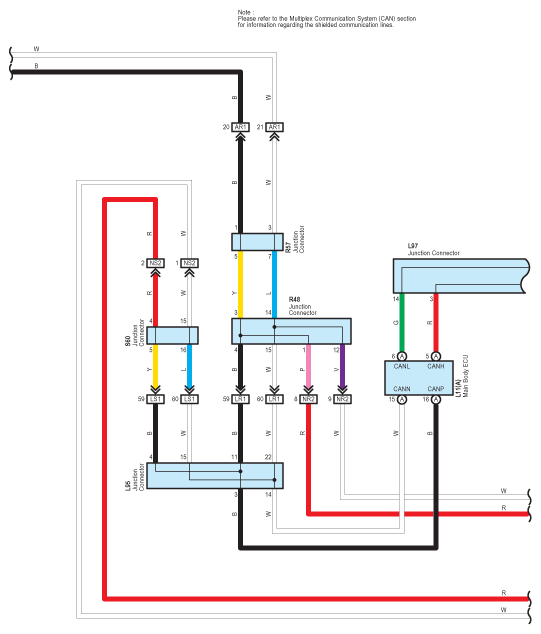

Fig 2: Rear Window Defogger And Mirror Heater - Circuit Diagram (2 Of 4)
G07566263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

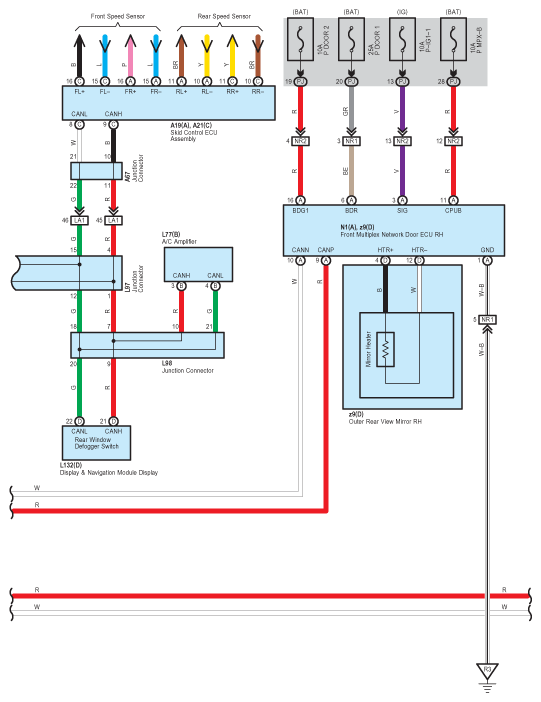

Fig 3: Rear Window Defogger And Mirror Heater - Circuit Diagram (3 Of 4)
G07566264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

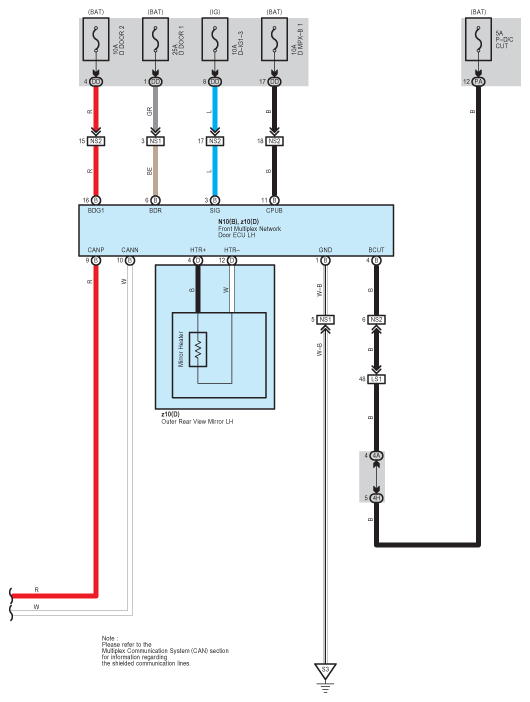

Fig 4: Rear Window Defogger And Mirror Heater - Circuit Diagram (4 Of 4)
G07566265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
