Intake Manifold: Components: Illustration

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (1 Of 6)
GTY276894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

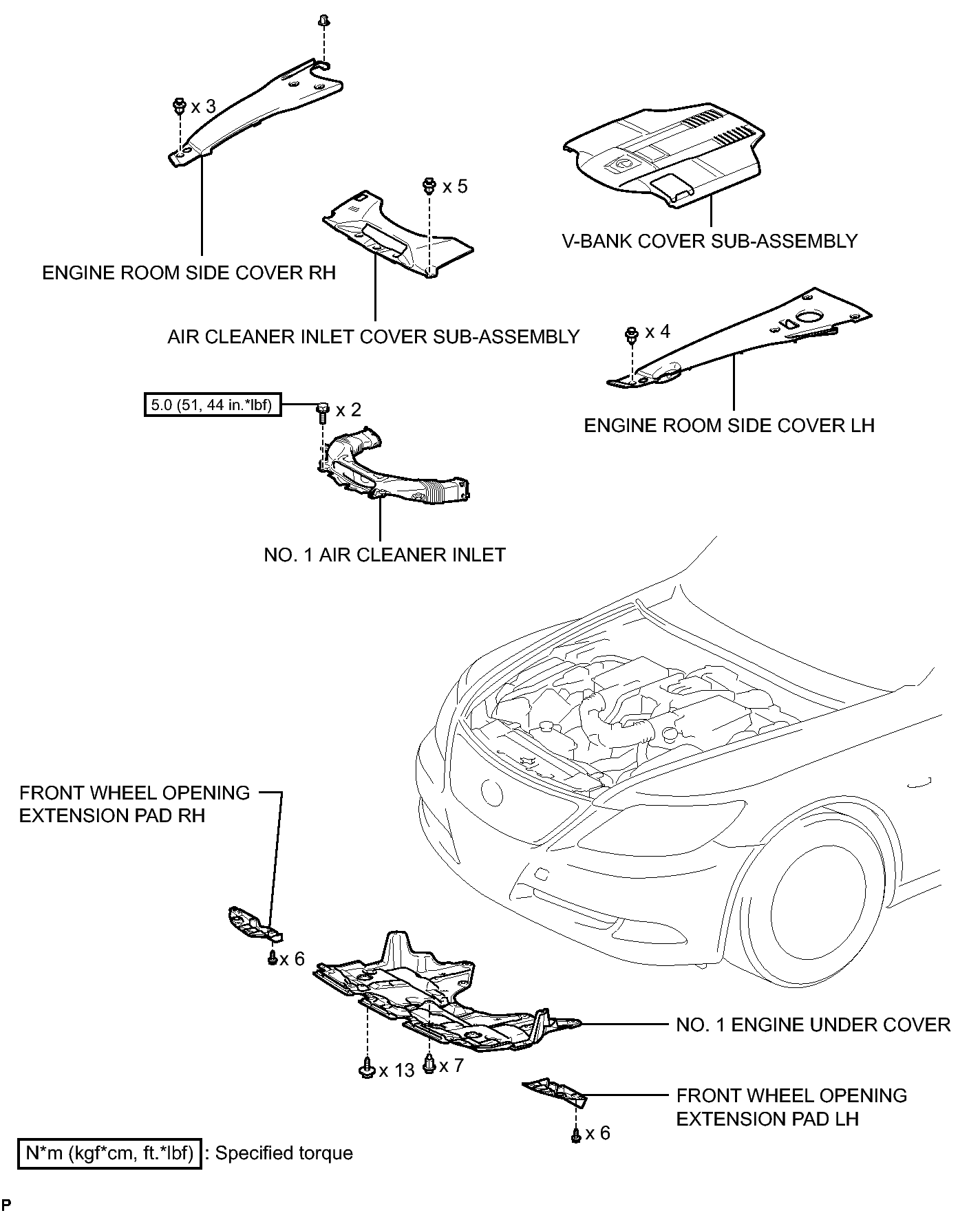

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (2 Of 6)
GTY272747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (3 Of 6)
GTY110050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

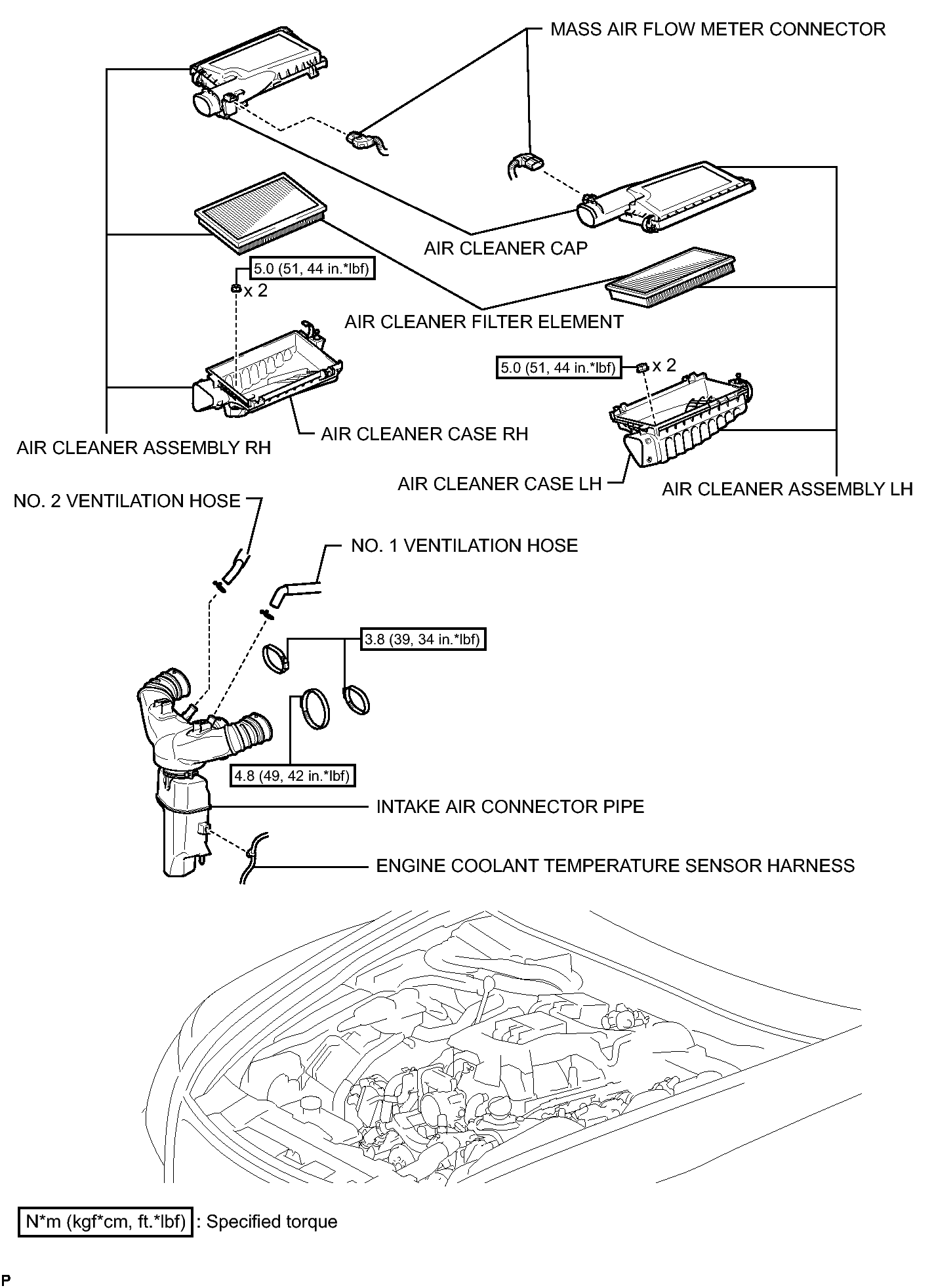

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (4 Of 6)
GTY147994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

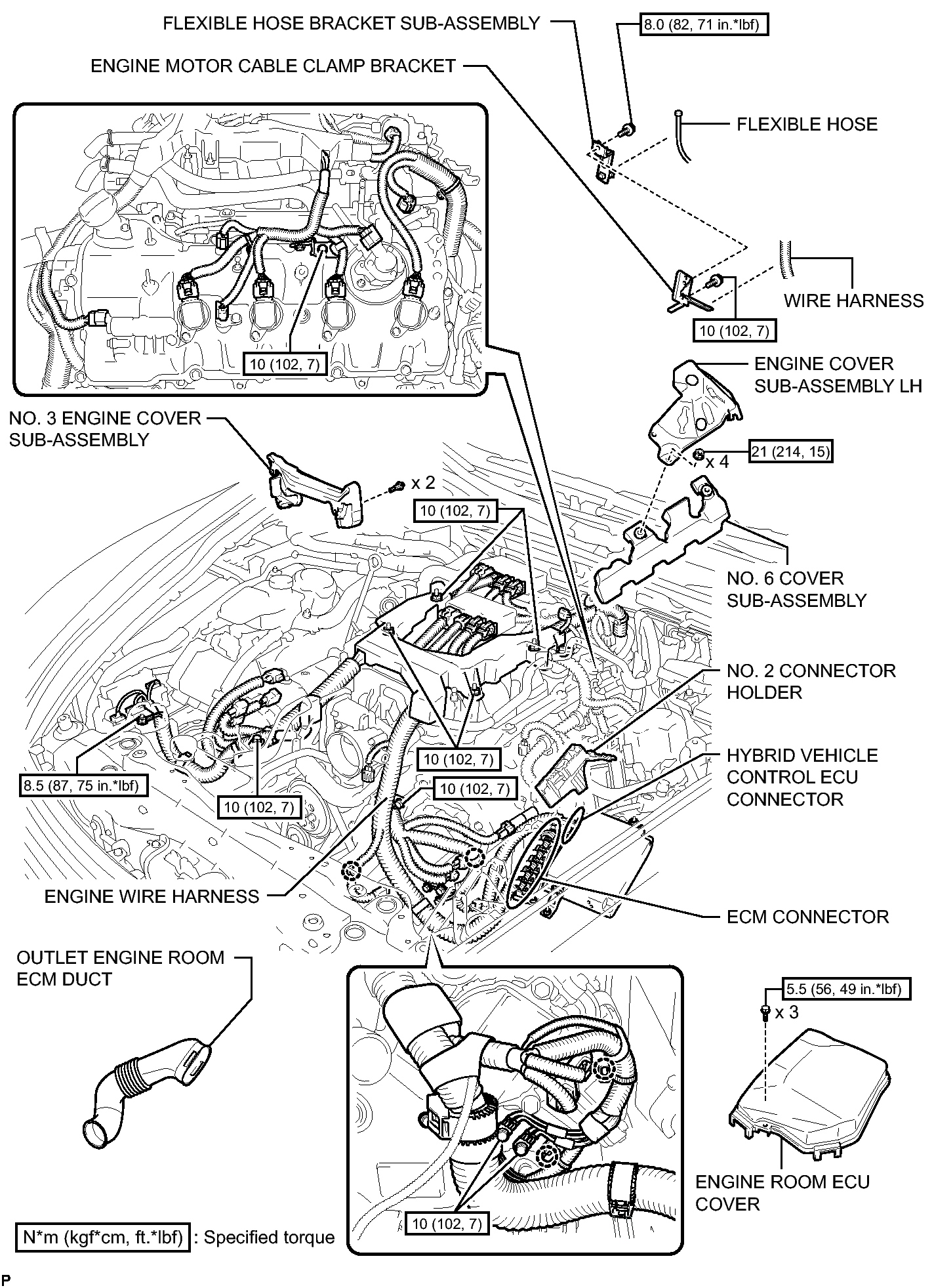

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (5 Of 6)
GTY133146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

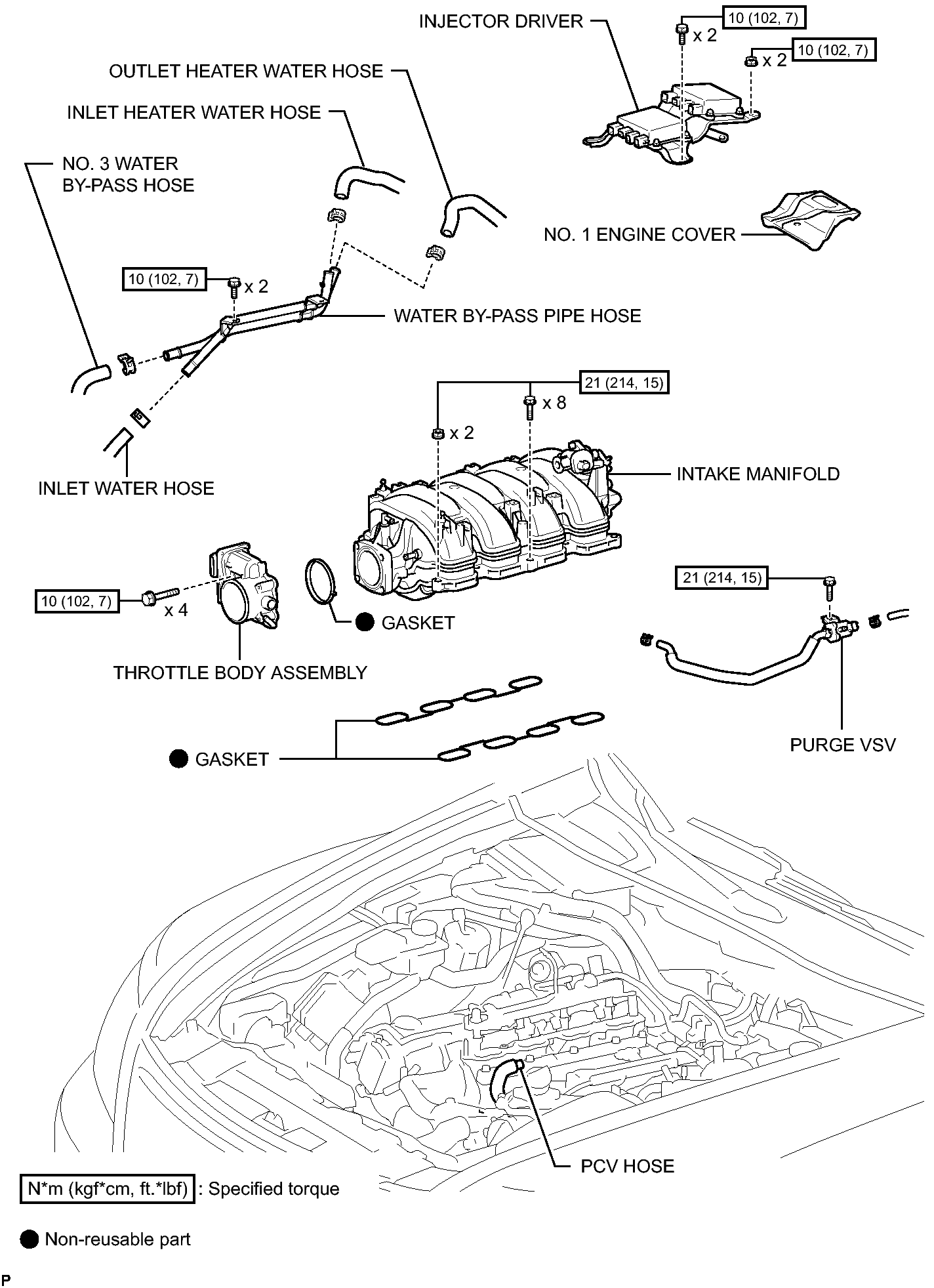

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (6 Of 6)
GTY143549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
