Fuel Pump: Components: Illustration

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (1 Of 4)
GTY276894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

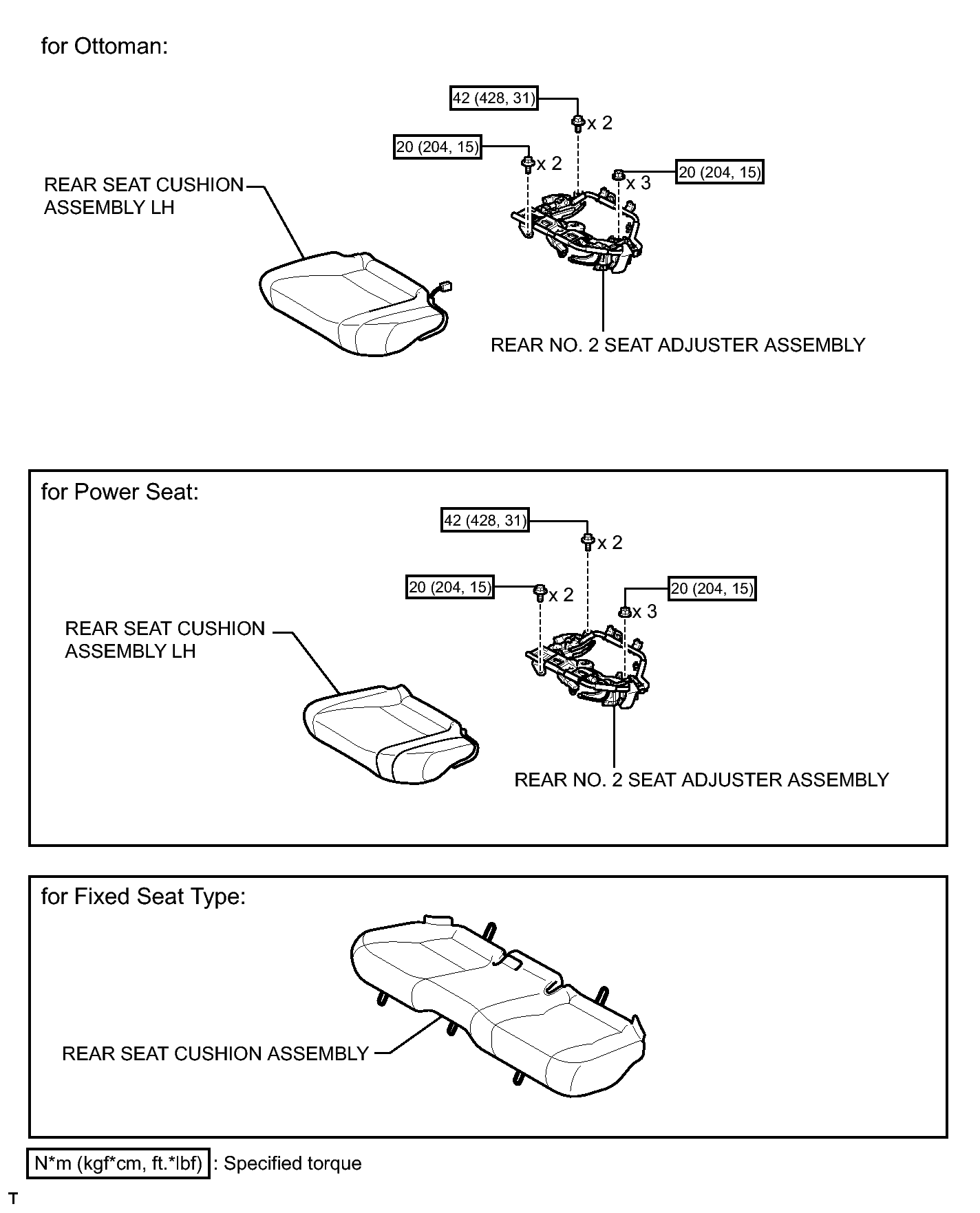

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (2 Of 4)
GTY148442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

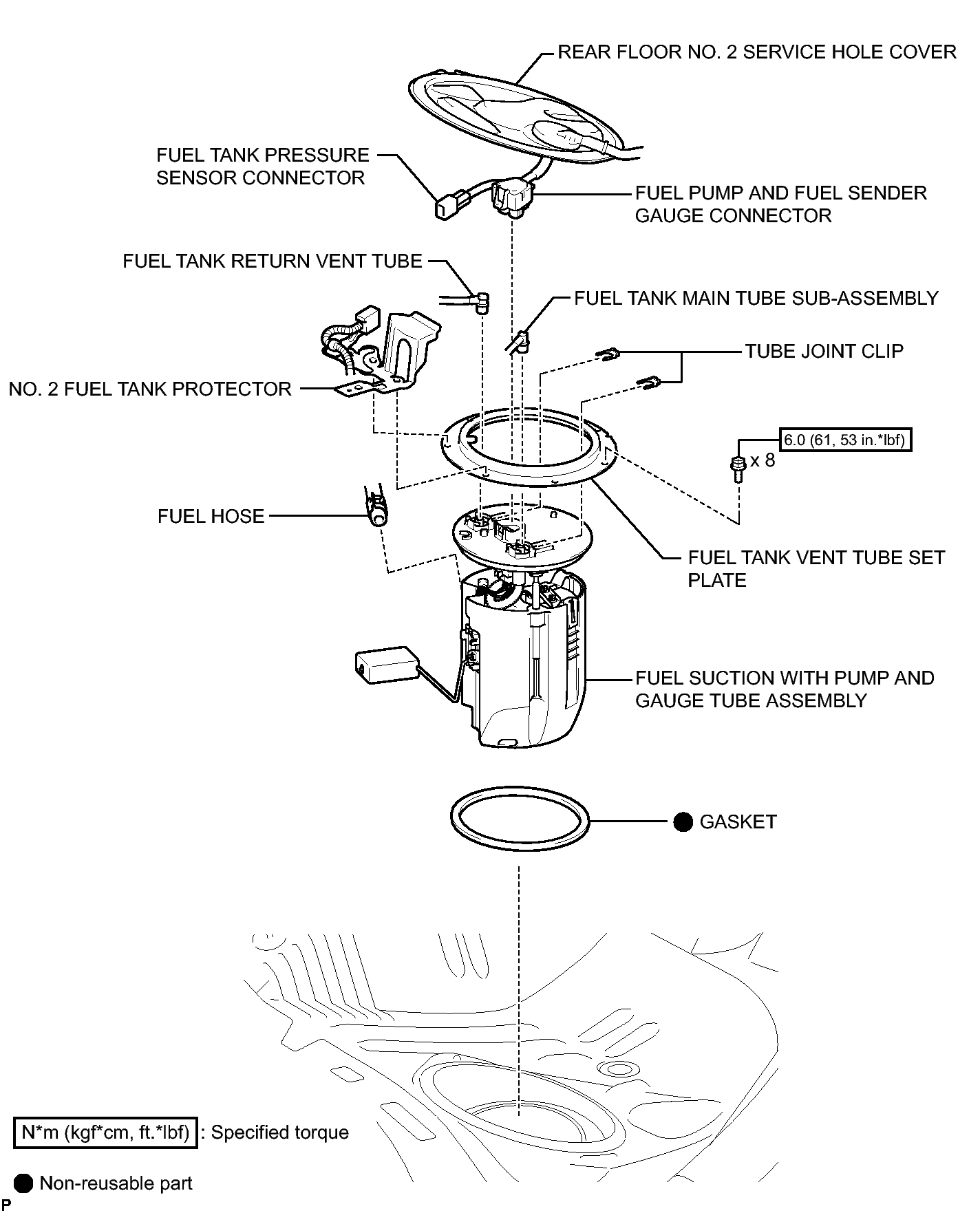

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (3 Of 4)
GTY148109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

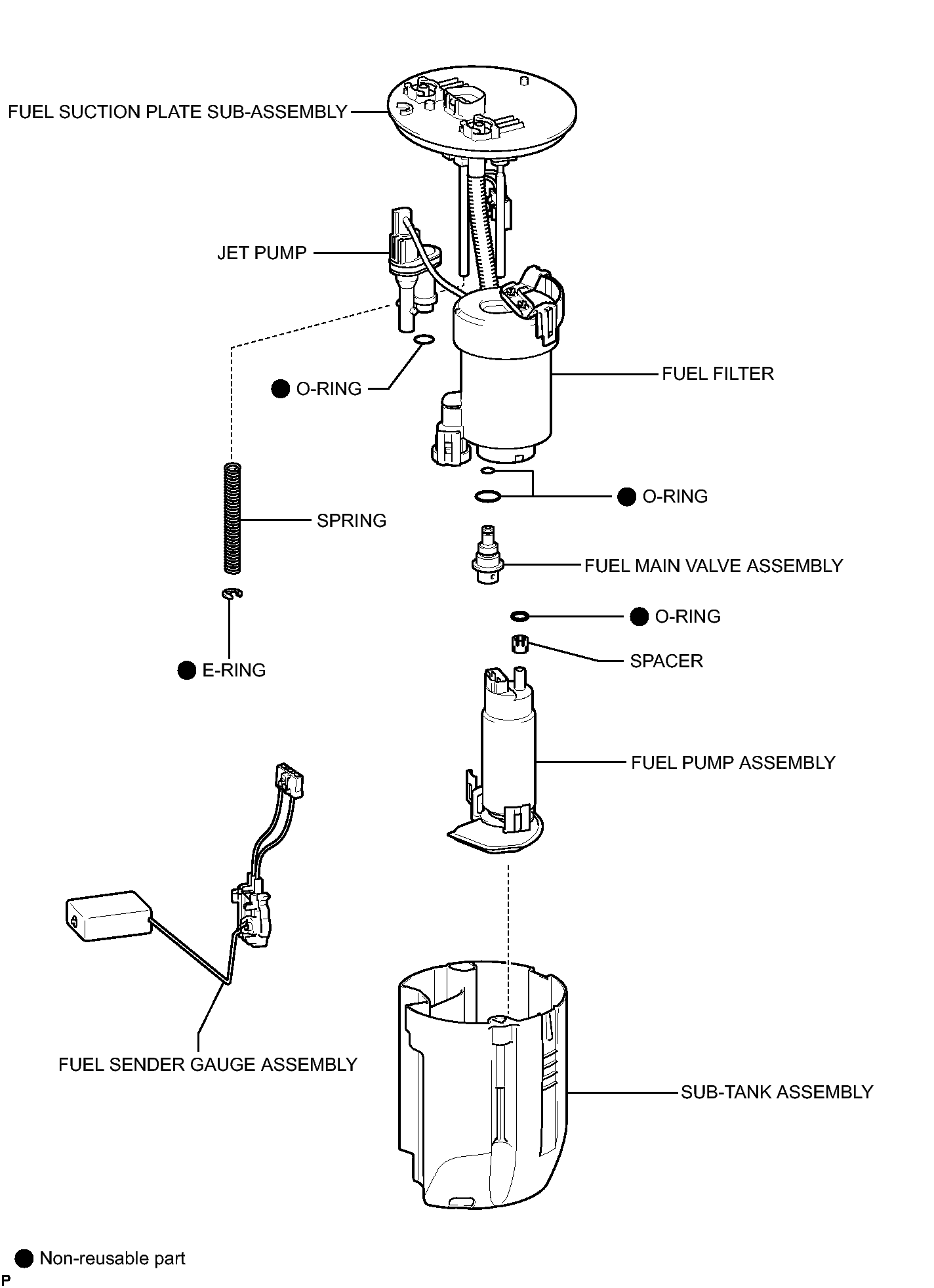

Fig 1: Identifying Fuel Pump Replacement Components (4 Of 4)
GTY148015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
