Fuel Tank: Components: Illustration

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 5)
GTY276894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

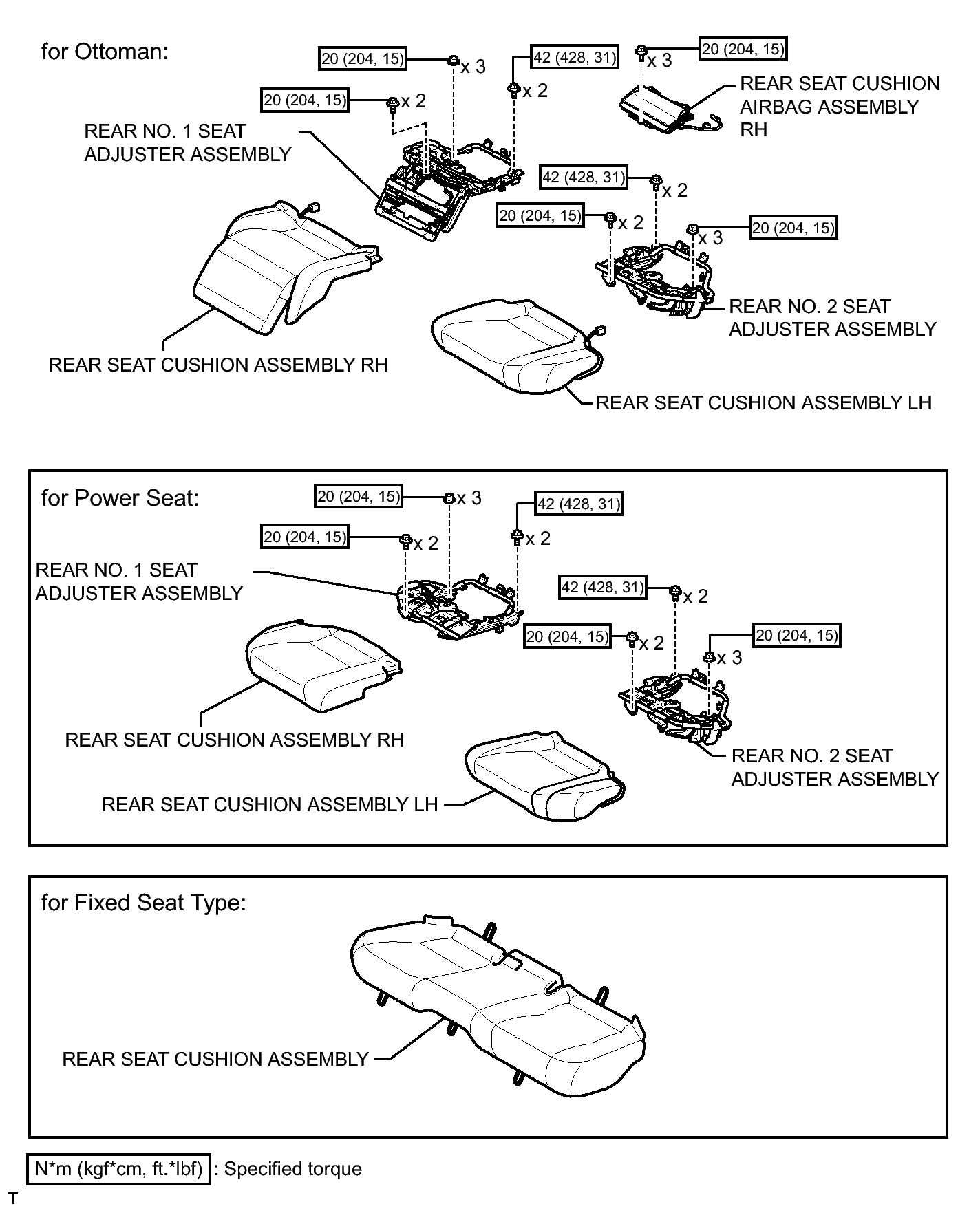

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 5)
GTY148432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

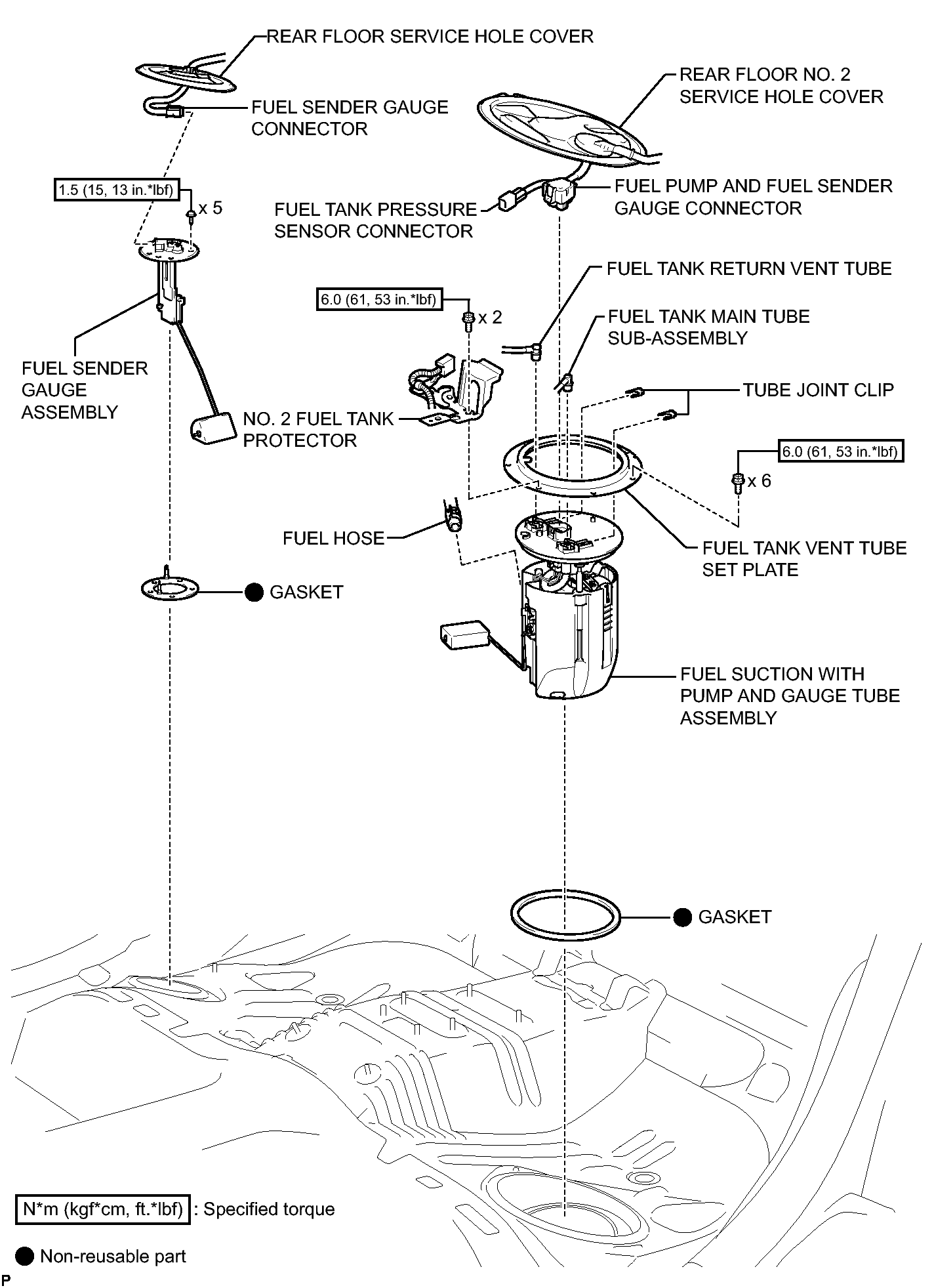

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (3 Of 5)
GTY148516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


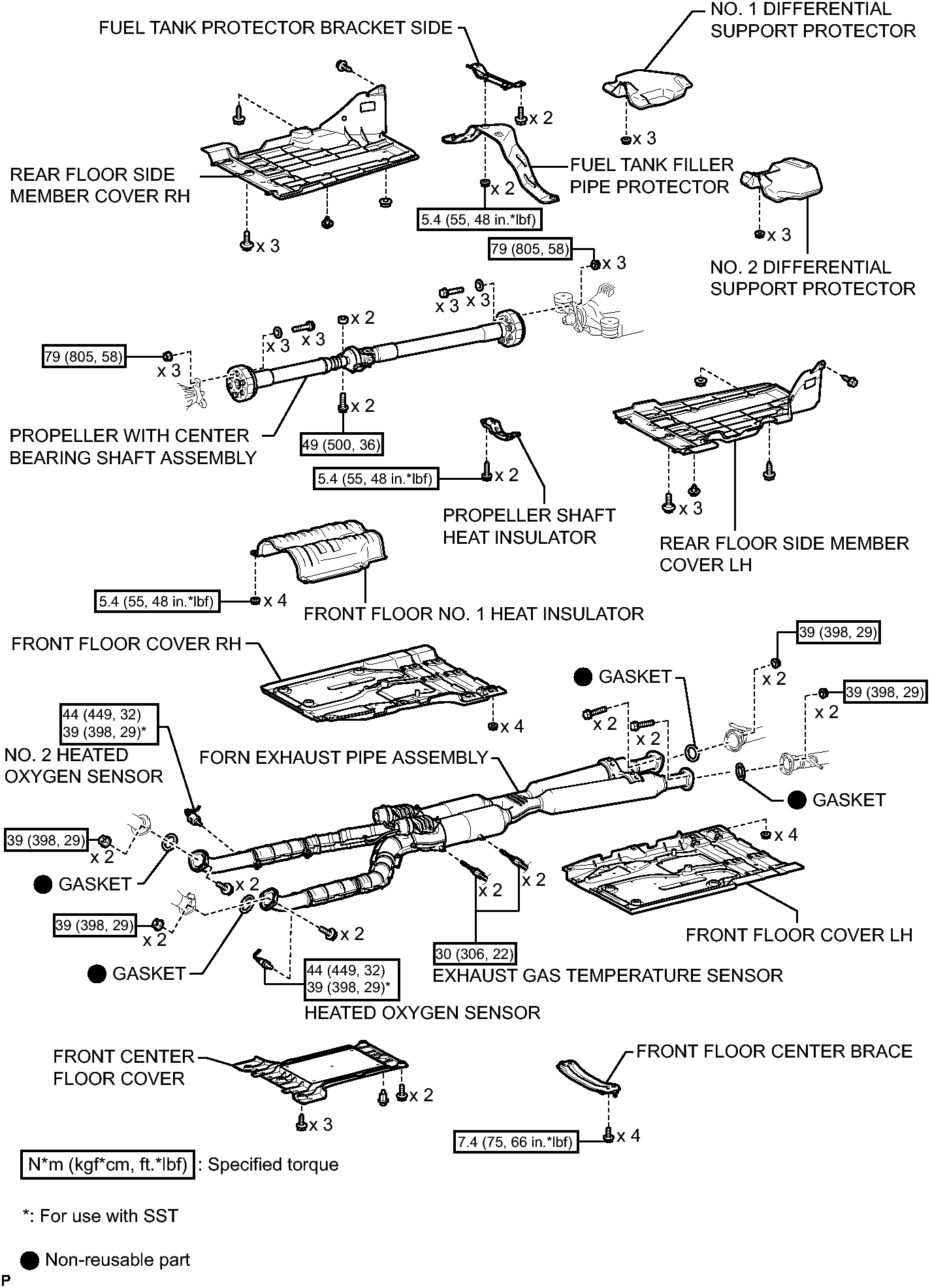

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (4 Of 5)
GTY285859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

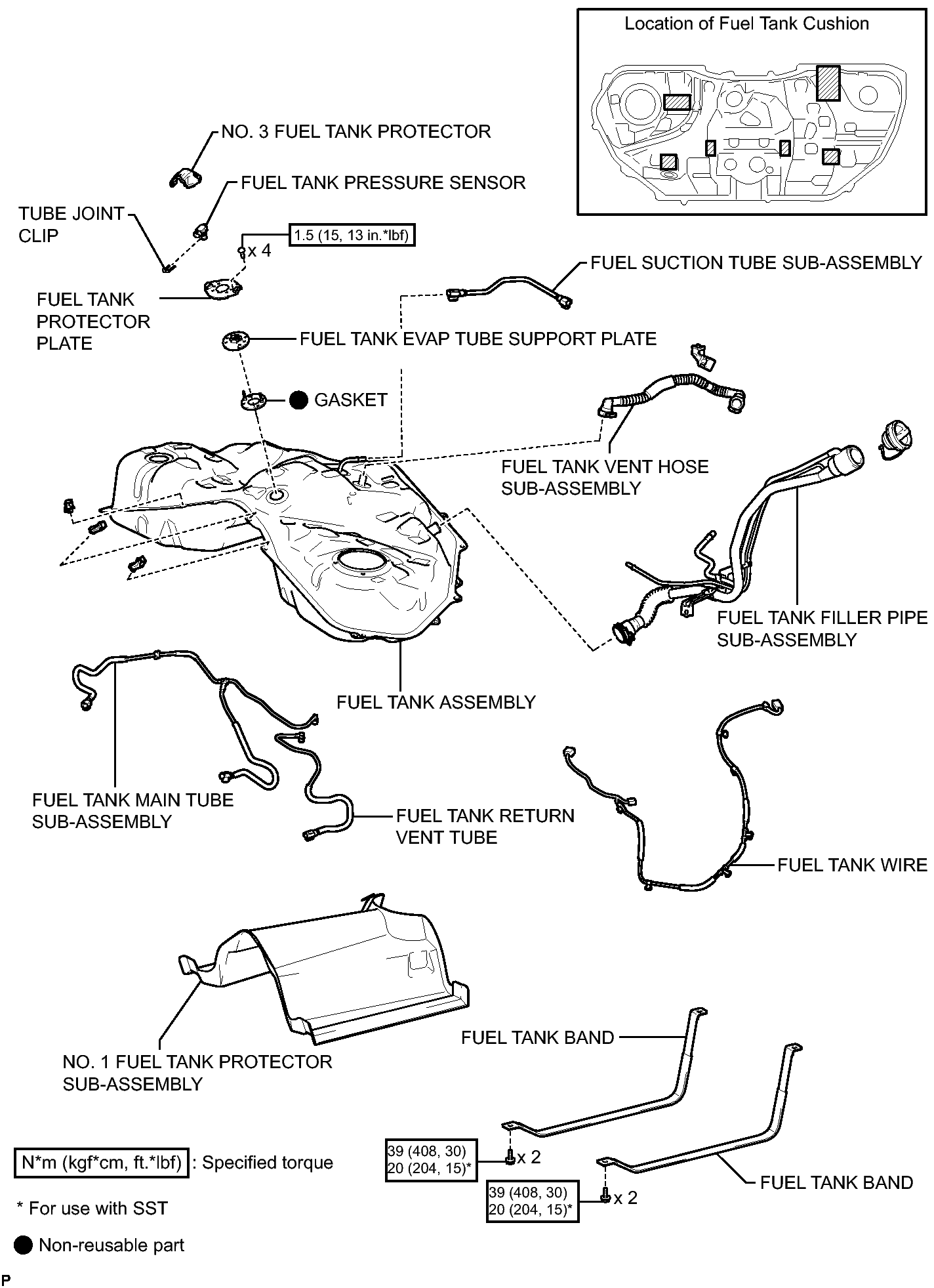

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (5 Of 5)
GTY148110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
