Parts Location: Illustration

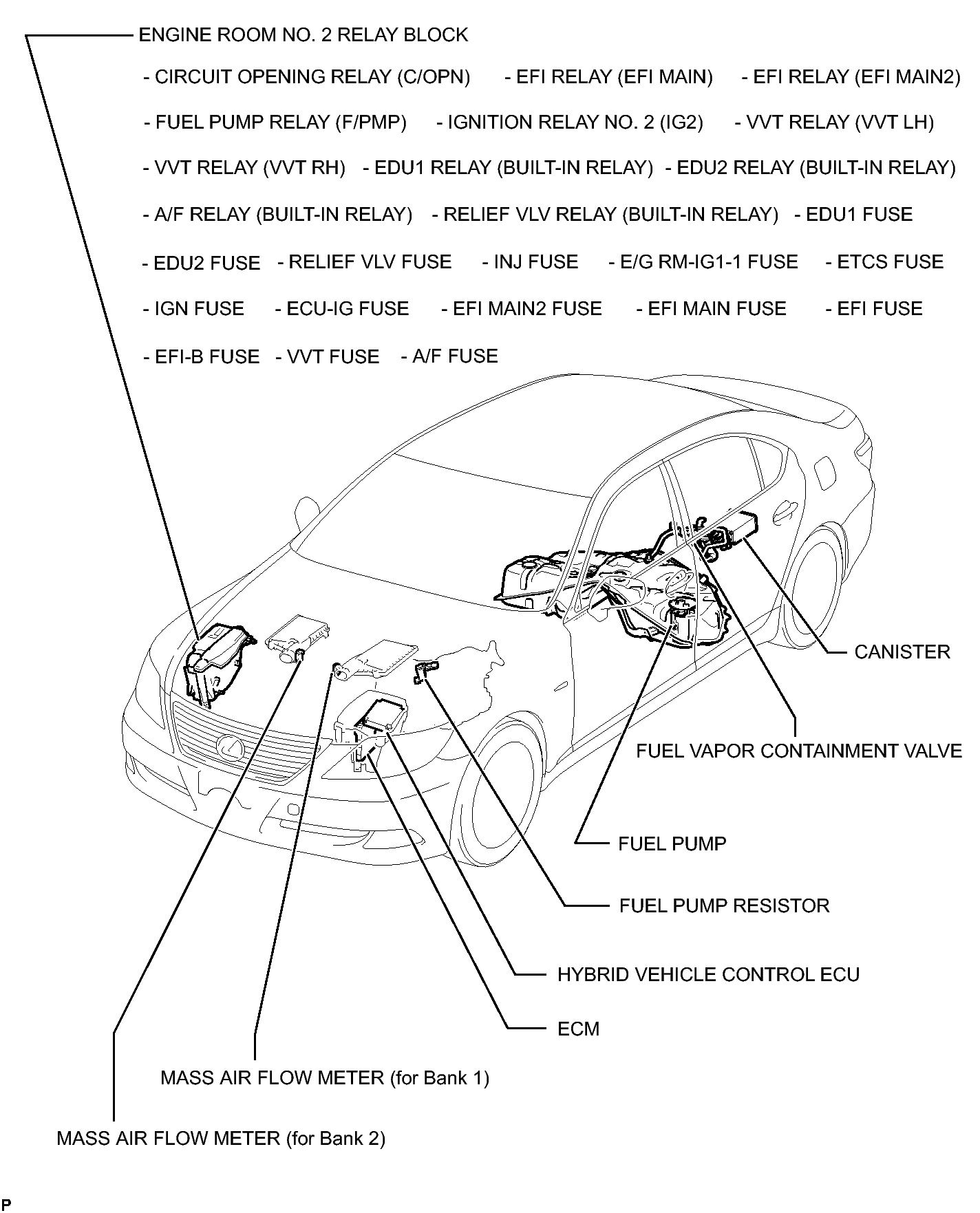

Fig 1: Identifying SFI System Components Location (1 Of 7)
GTY134487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

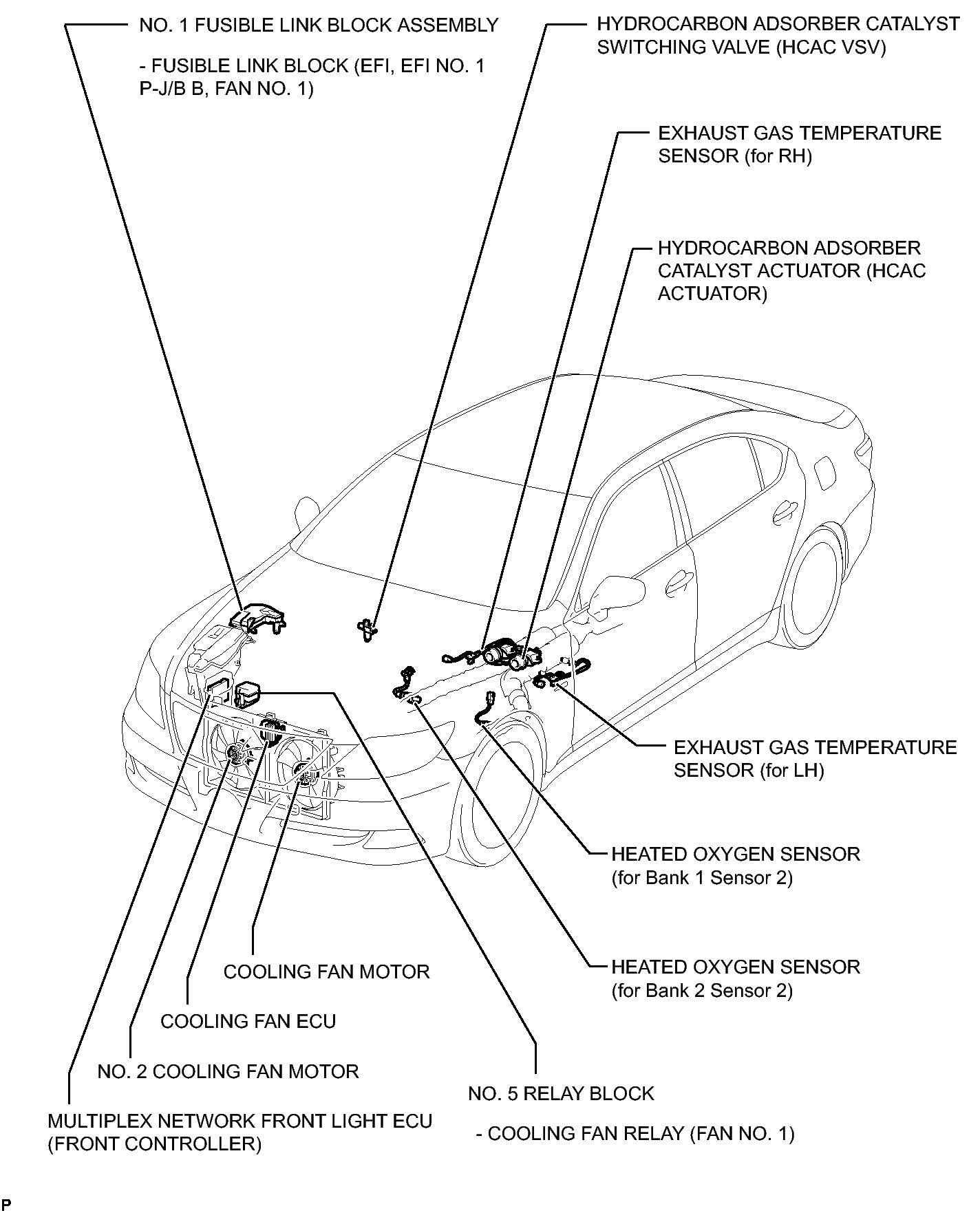

Fig 1: Identifying SFI System Components Location (2 Of 7)
GTY141418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

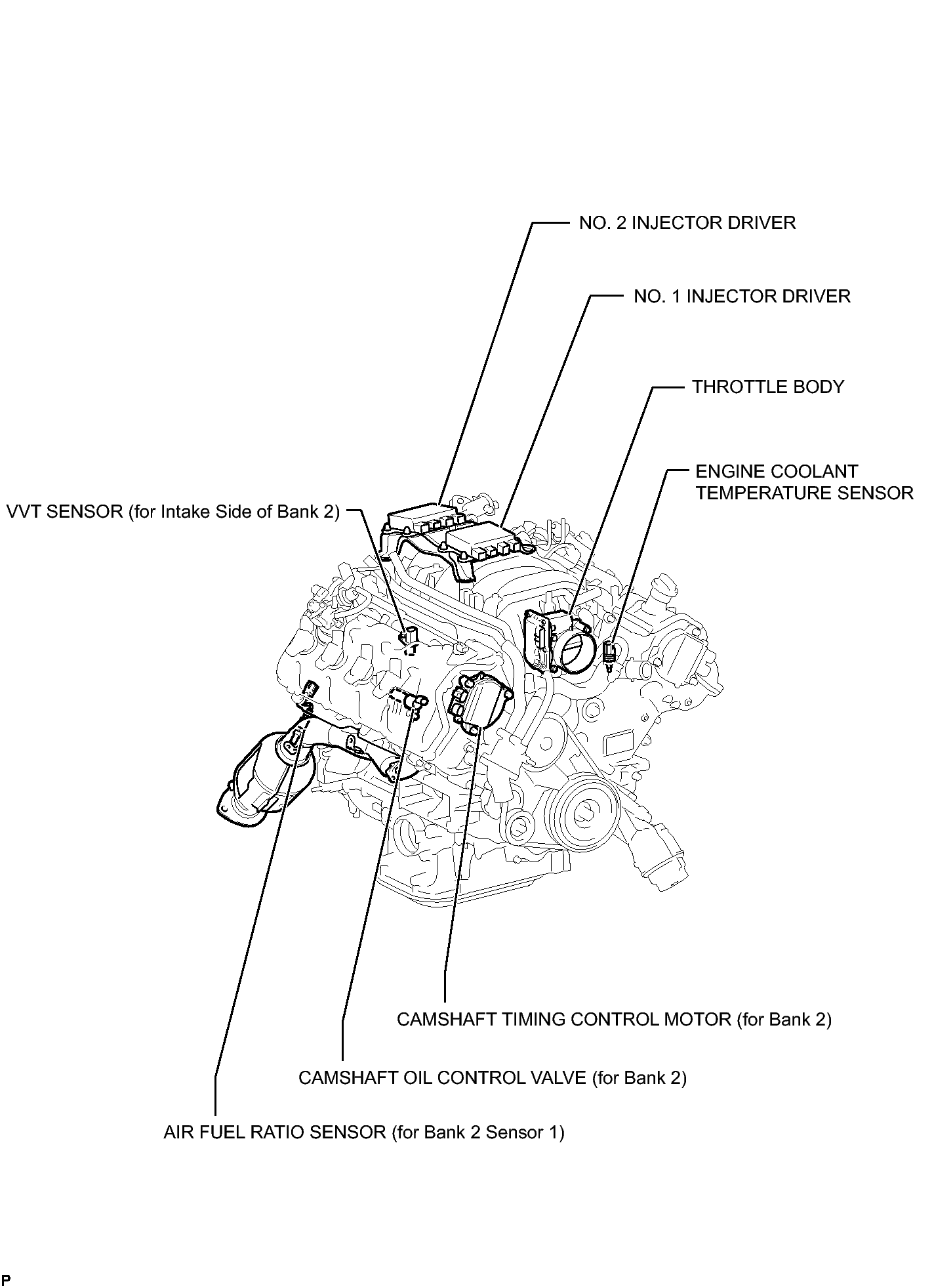

Fig 1: Identifying SFI System Components Location (3 Of 7)
GTY148358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

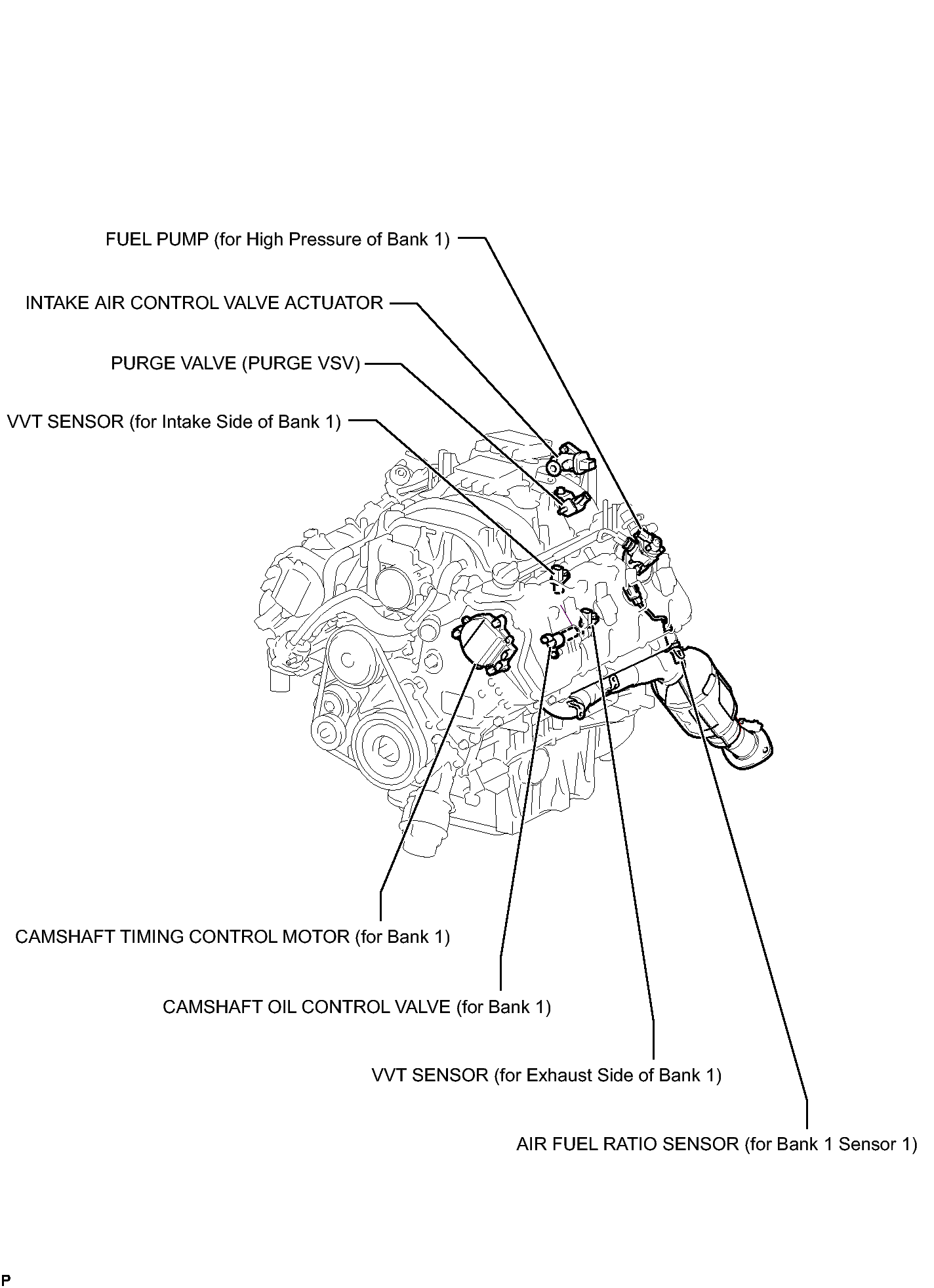

Fig 1: Identifying SFI System Components Location (4 Of 7)
GTY148359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

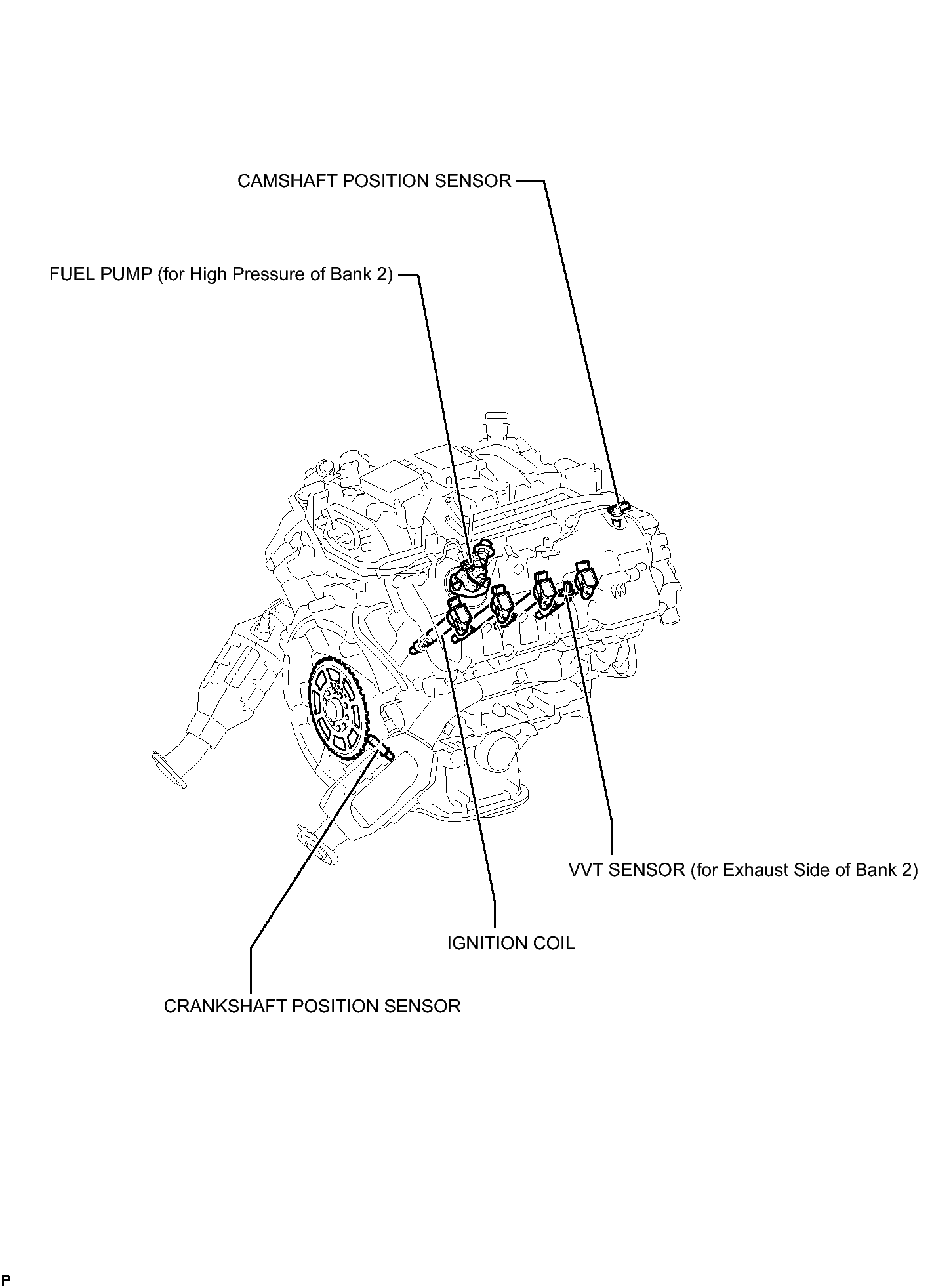

Fig 1: Identifying SFI System Components Location (5 Of 7)
GTY148360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

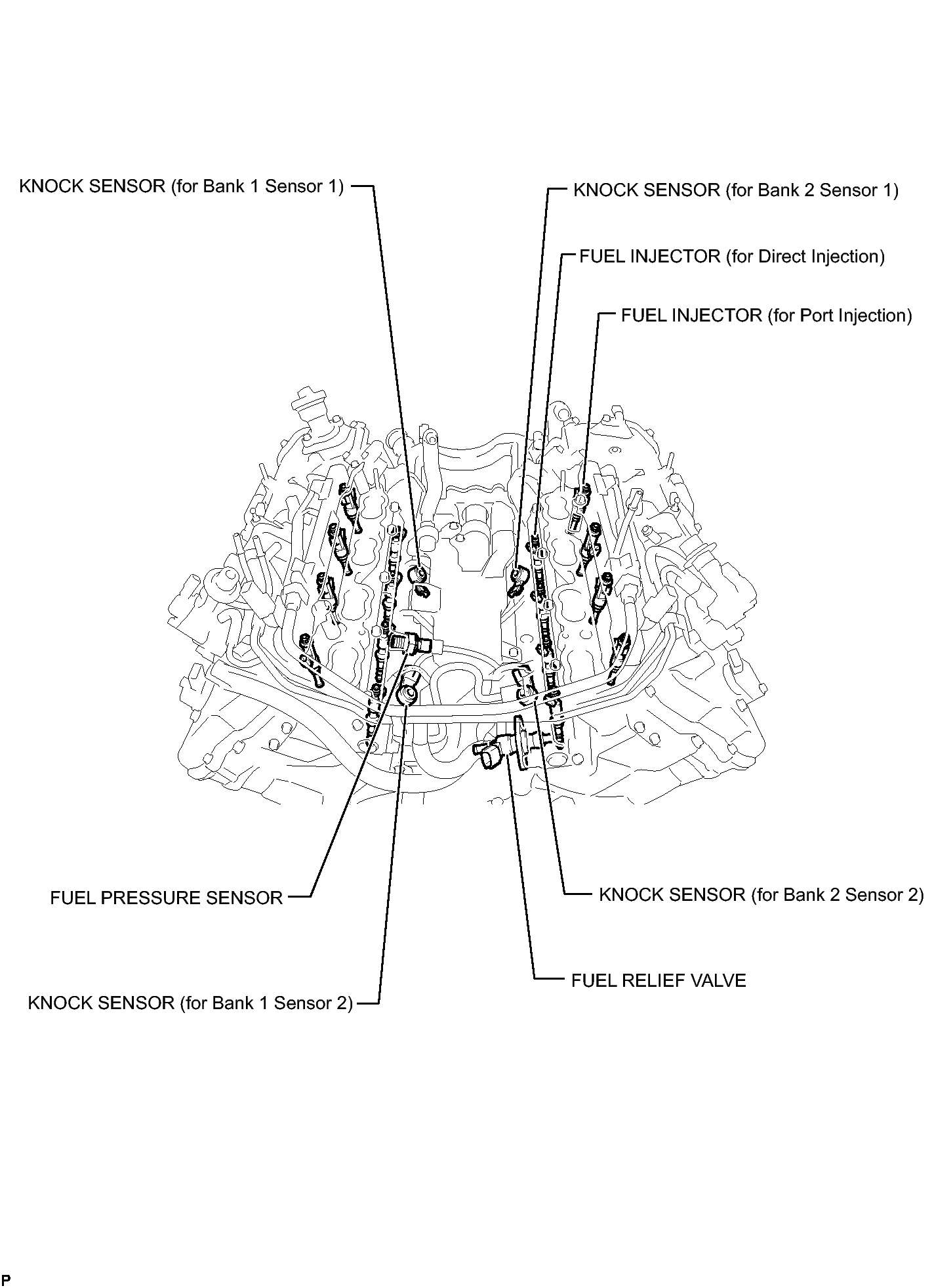

Fig 1: Identifying SFI System Components Location (6 Of 7)
GTY148361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

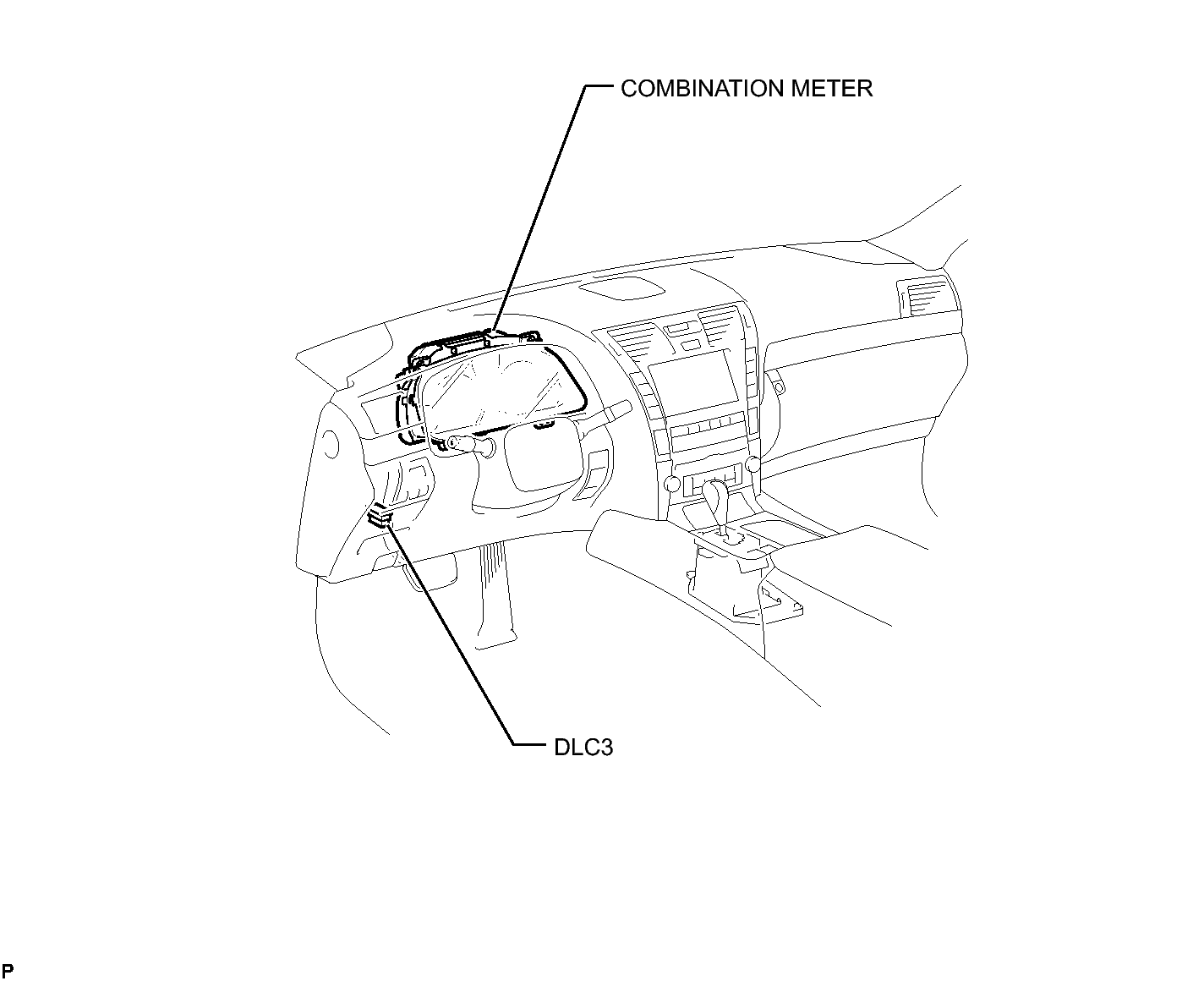

Fig 1: Identifying SFI System Components Location (7 Of 7)
GTY133192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
