Section 107 (OEM System Circuits): Ignition: Notes

WARNING: This page is about a different car, the 2010 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

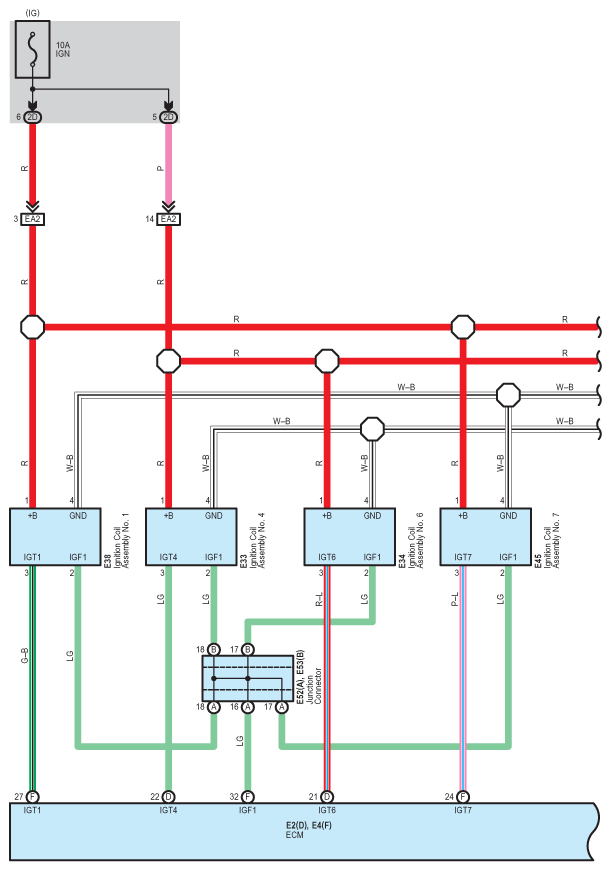

Fig 1: Ignition - Circuit Diagram (1 Of 2)
G07568514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

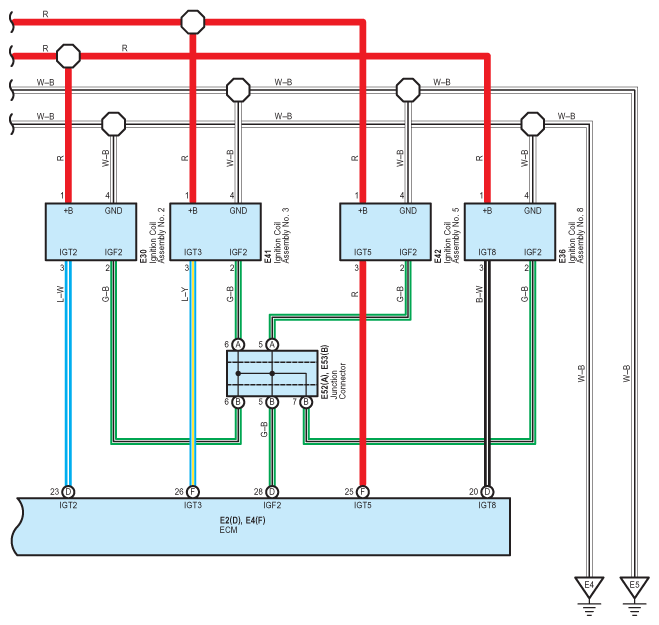

Fig 2: Ignition - Circuit Diagram (2 Of 2)
G07568515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
