Hybrid Mode Select Switch: Installation: Installation

INSTALL COMBINATION SWITCH ASSEMBLY
1. Install the combination switch assembly with the 4 claws.

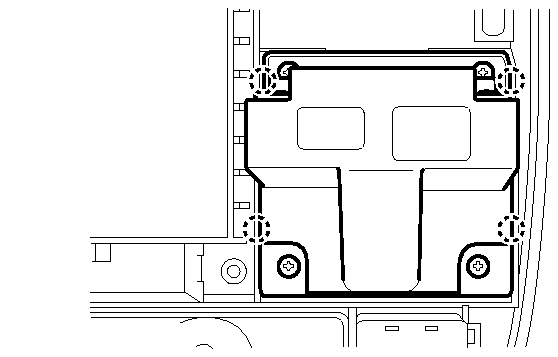

  Fig 1: Identifying Combination Switch Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL CUP HOLDER
1. Install the instrument panel cup holder with the 4 screws.

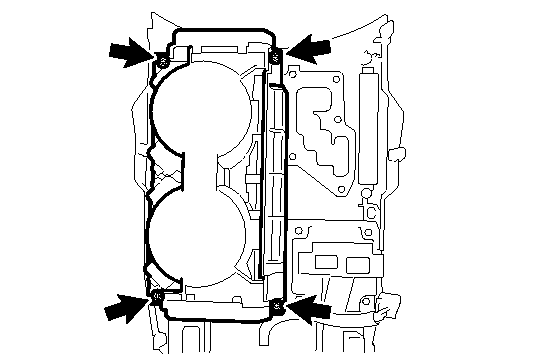

  Fig 2: Locating Instrument Panel Cup Holder Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the combination switch connector.

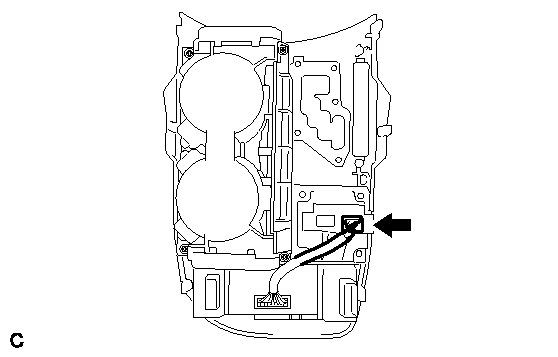

  Fig 3: Locating Combination Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER REAR CONSOLE PANEL . Refer to INSTALLATION - Step 5
INSTALL NO. 3 BOX PANEL . Refer to INSTALLATION - Step 6
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY . Refer to INSTALLATION - Step 7
INSTALL INSTRUMENT PANEL FINISH PANEL END LH . Refer to INSTALLATION - Step 8
INSTALL INSTRUMENT PANEL FINISH PANEL END RH . Refer to INSTALLATION - Step 18
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL BATTERY SERVICE HOLE COVER LH . Refer to INSTALLATION - Step 15
INSTALL DECK TRIM SIDE BOARD LH (w/o Spare Tire) . Refer to INSTALLATION - Step 16
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY . Refer to INSTALLATION - Step 17
