Shift Lever: Components: Illustration

Fig 1: Identifying Shift Lever Replacement Components (1 Of 3)
GTY138369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

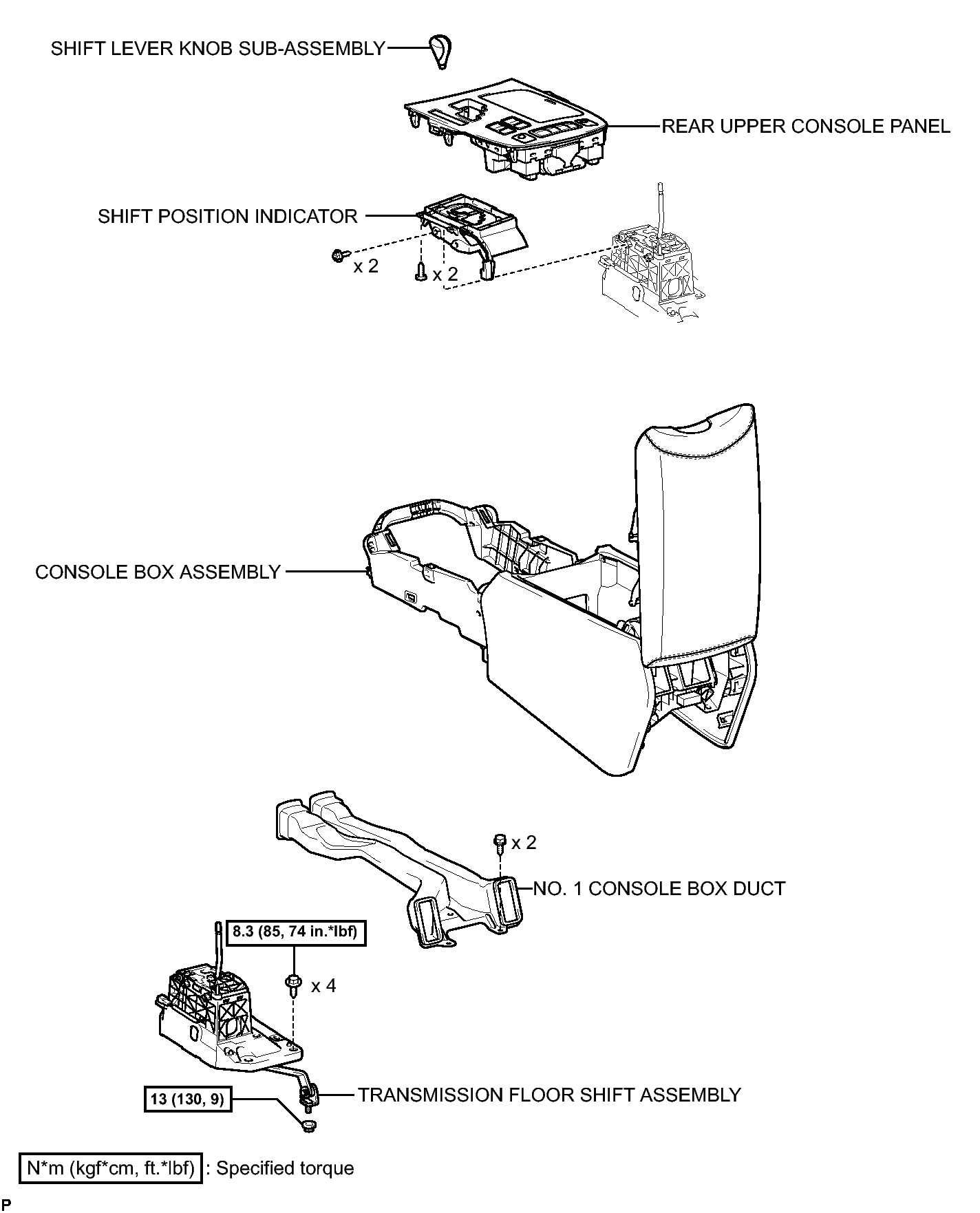

Fig 1: Identifying Shift Lever Replacement Components With Torque Specifications (2 Of 3)
GTY262838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

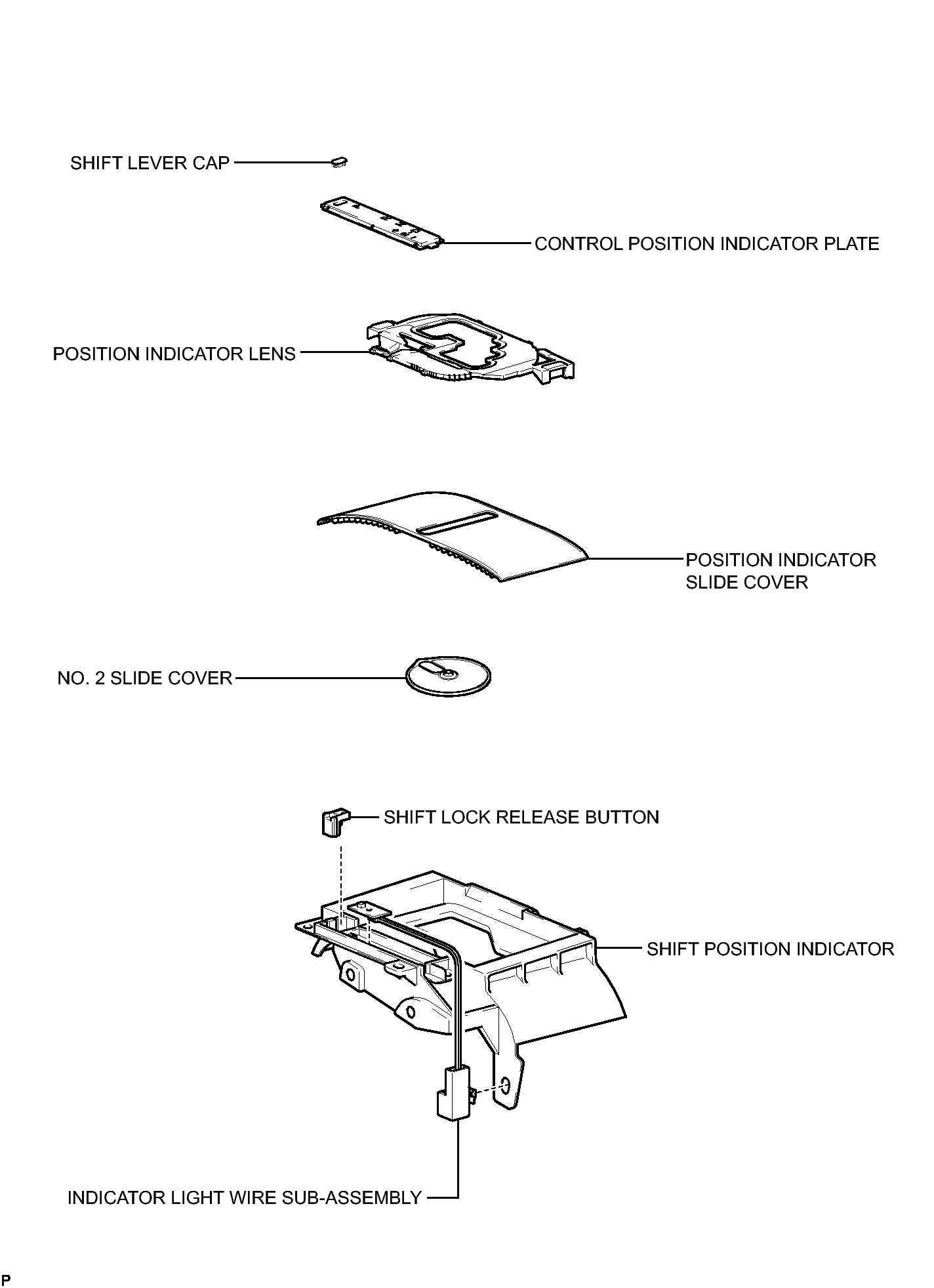

Fig 1: Identifying Shift Lever Replacement Components (3 Of 3)
GTY110599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
